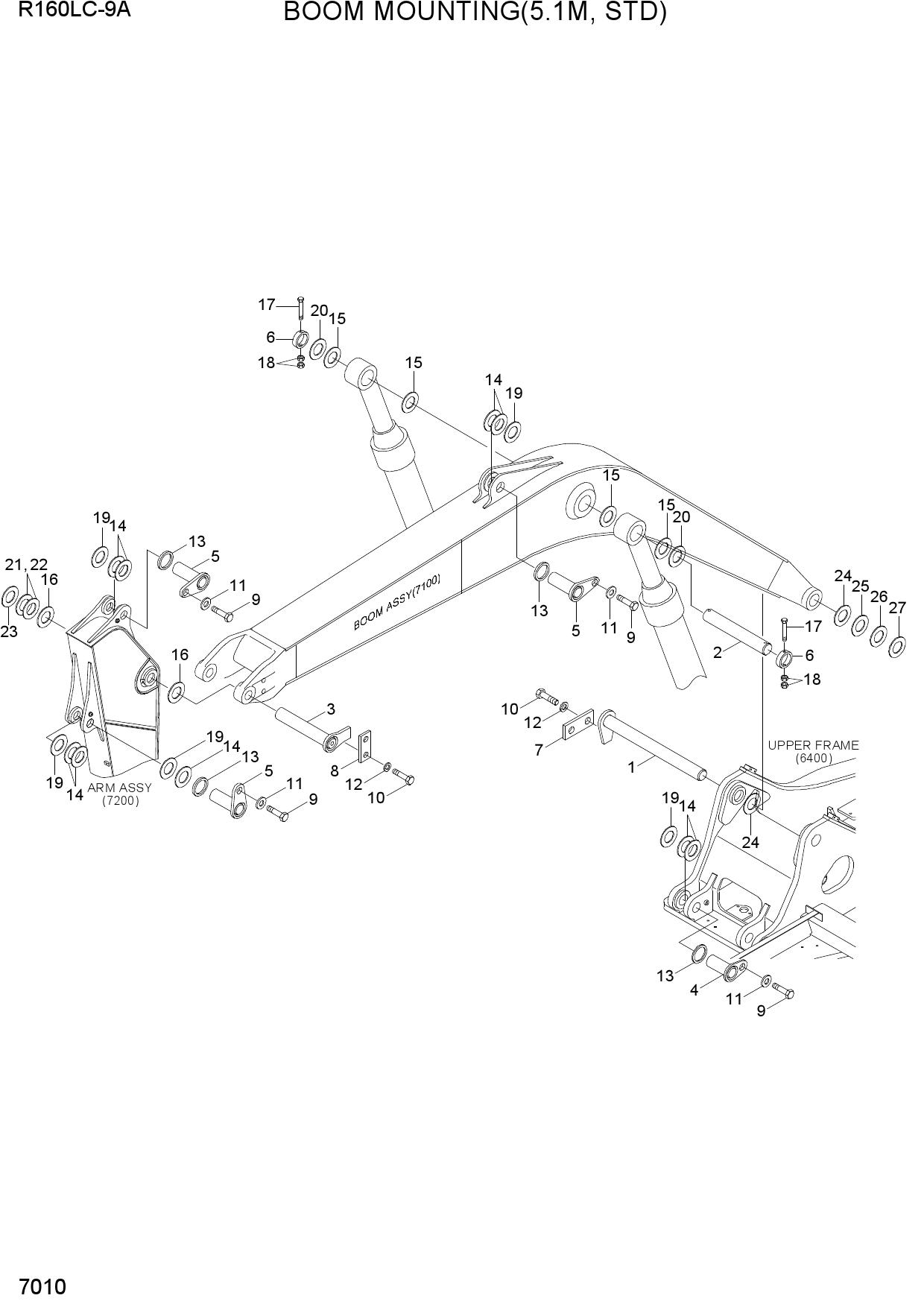

BOOM MOUNTING(5.1M, STD)
1 61Q5-11011
- 61Q5-11011 - PIN ASSY
- Поз.: 1
2 61EK-11021
- 61EK-11021 - PIN
- Поз.: 2
3 61Q5-11120
- 61Q5-11120 - PIN ASSY
- Поз.: 3
4 61Q5-01421
- 61Q5-01421 - PIN ASSY
- Поз.: 4
5 61Q5-01430
- 61Q5-01430 - PIN ASSY
- Поз.: 5
6 61Q5-10500
- 61Q5-10500 - STOPPER-PIN
- Поз.: 6
7 61Q4-10711
- 61Q4-10711 - PLATE
- Поз.: 7
8 61Q5-10710
- 61Q5-10710 - PLATE
- Поз.: 8
9 S017-16025D
- S017-16025D - BOLT-HEX
- Поз.: 9
10 S017-16030D
- S017-16030D - BOLT-HEX
- Поз.: 10
11 61N8-00310-DA
- 61N8-00310-DA - WASHER-HARDENED
- Поз.: 11
12 S411-160006
- S411-160006 - WASHER-SPRING
- Поз.: 12
13 61Q8-00130
- 61Q8-00130 - SPACER-PIN
- Поз.: 13
14 S993-070135
- S993-070135 - SHIM(2.0T)-POLYMER
- Поз.: 14
15 S993-075135
- S993-075135 - SHIM(2.0T)-POLYMER
- Поз.: 15
16 S993-075170
- S993-075170 - SHIM(2.0T)-POLYMER
- Поз.: 16
17 S017-161606
- S017-161606 - BOLT-HEX
- Поз.: 17
18 S205-16100B
- S205-16100B - NUT-HEX
- Поз.: 18
19 S991-070135
- S991-070135 - SHIM(1.0T)-POLYMER
- Поз.: 19
20 S991-075135
- S991-075135 - SHIM(1.0T)-POLYMER
- Поз.: 20
21 S991-075170
- S991-075170 - SHIM(1.0T)-POLYMER
- Поз.: 21
22 S992-075170
- S992-075170 - SHIM(1.5T)-POLYMER
- Поз.: 22
23 S994-075170
- S994-075170 - SHIM(2.5T)-POLYMER
- Поз.: 23
24 S993-080160
- S993-080160 - SHIM(2.0T)-POLYMER
- Поз.: 24
25 S991-080160
- S991-080160 - SHIM(1.0T)-POLYMER
- Поз.: 25
26 S992-080160
- S992-080160 - SHIM(1.5T)-POLYMER
- Поз.: 26
27 S994-080160
- S994-080160 - SHIM(2.5T)-POLYMER
- Поз.: 27
