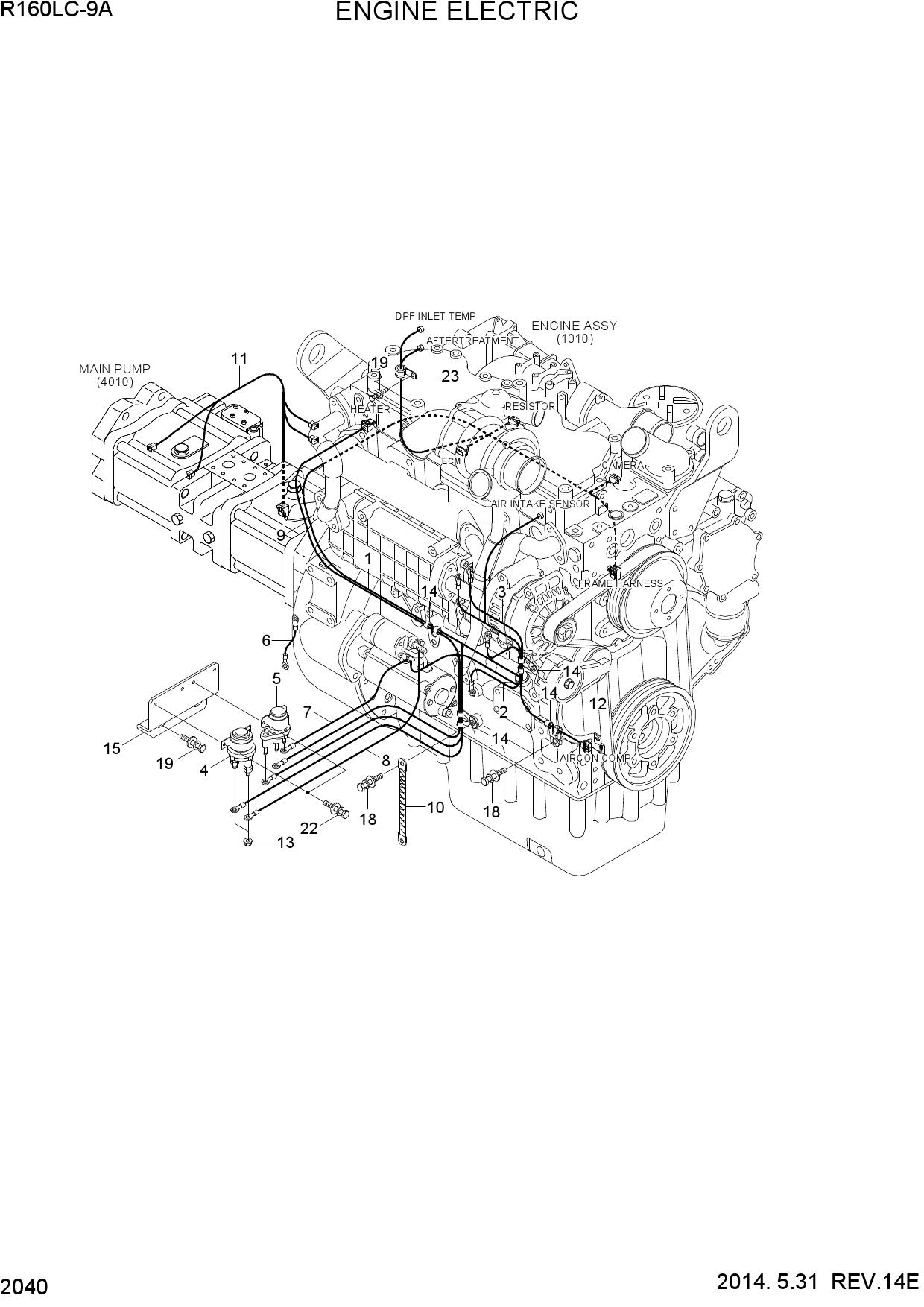

ENGINE ELECTRIC
1 27Q4-20203
- 27Q4-20203 - HARNESS-ENGINE
- Поз.: 1
2 27Q4-20204
- 27Q4-20204 - HARNESS-ENGINE
- Поз.: 1
3 21Q4-17700
- 21Q4-17700 - CABLE(ALT-EARTH)
- Поз.: 2
4 21Q4-17600
- 21Q4-17600 - CABLE(ALT-STARTER)
- Поз.: 3
5 21N6-30120
- 21N6-30120 - RELAY-START
- Поз.: 4
6 21N8-42050
- 21N8-42050 - RELAY-HEATER
- Поз.: 5
7 21NA-10500
- 21NA-10500 - CABLE(MASTER SW-EARTH)
- Поз.: 6
8 21LC-40061
- 21LC-40061 - CABLE(STARTER-HT RY)
- Поз.: 7
9 21Q4-40070
- 21Q4-40070 - HARNESS-EXT
- RELAY
- Поз.: 8
10 21LC-40081
- 21LC-40081 - CABLE(HEAT RY-HEATER)
- Поз.: 9
11 21EH-30720
- 21EH-30720 - STRAP-EARTH
- Поз.: 10
12 27Q4-10300
- 27Q4-10300 - HARNESS-PUMP PS
- Поз.: 11
13 21N4-01130
- 21N4-01130 - PLATE-CLIP
- Поз.: 12
14 S285-06100B
- S285-06100B - NUT-FLANGED
- Поз.: 13
15 21E9-00170
- 21E9-00170 - CLIP-HARNESS
- Поз.: 14
16 21Q4-21103
- 21Q4-21103 - BRACKET-START&HEATER
- Поз.: 15
17 21Q4-21104
- 21Q4-21104 - BRACKET-START & HEATER
- Поз.: 15
18 21Q4-21105
- 21Q4-21105 - BRACKET-START & HEATER
- Поз.: 15
19 S037-122026
- S037-122026 - BOLT-W/WASHER
- Поз.: 18
20 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 19
21 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 22
22 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 22
23 31L7-10200
- 31L7-10200 - CLAMP-TUBE
- Поз.: 23
