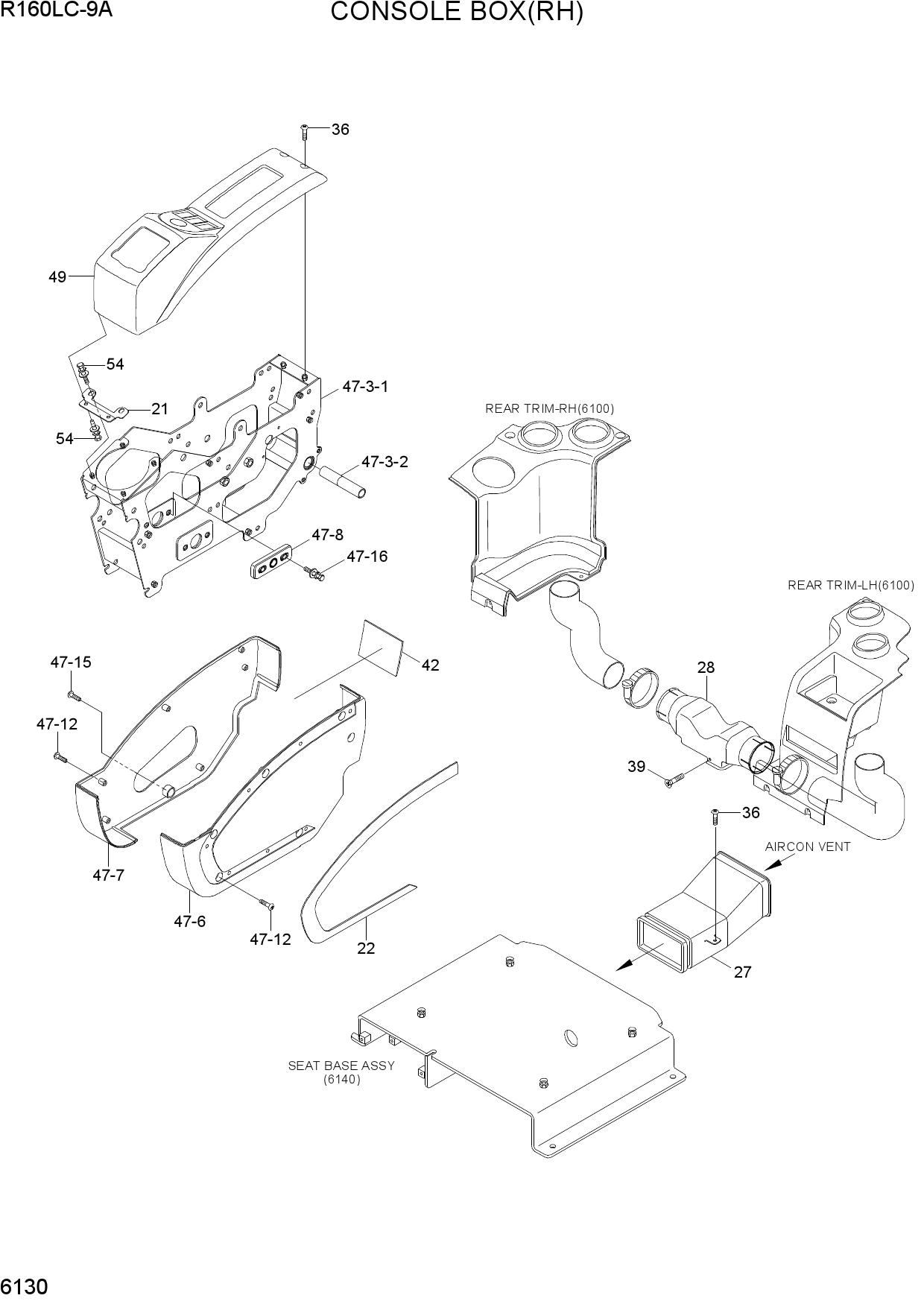

CONSOLE BOX 3(RH)
1 71Q6-21610
- 71Q6-21610 - BRACKET-CONSOLE UP
- Поз.: 21
2 71Q6-22031
- 71Q6-22031 - CONSOLE COVER-TRIM
- Поз.: 22
3 71Q6-22590
- 71Q6-22590 - DUCT-SEAT
- Поз.: 27
4 71Q6-22280
- 71Q6-22280 - DUCT-VENT(1)
- Поз.: 28
5 S002-06015B
- S002-06015B - SCREW-TRUS HEAD
- Поз.: 36
6 S151-050106
- S151-050106 - SCREW-TAPPING
- Поз.: 39
7 71Q8-22671
- 71Q8-22671 - PROTECTOR
- Поз.: 42
8 71Q8-22230
- 71Q8-22230 - FRAME ASSY-RH
- Поз.: 47-3
9 71Q8-21340
- 71Q8-21340 - CENTER FRAME WA
- Поз.: 47-3
10 S731-020020
- S731-020020 - BUSHING-DU
- Поз.: 47-3-1
11 71Q8-23581
- 71Q8-23581 - COVER-CONSOLE
- LH
- Поз.: 47-3-2
12 71Q8-22051
- 71Q8-22051 - COVER-CONSOLE
- RH
- Поз.: 47-7
13 71Q8-22210
- 71Q8-22210 - HOUSING
- Поз.: 47-8
14 S002-06010B
- S002-06010B - SCREW-TRUS HEAD
- Поз.: 47-12
15 S151-040156
- S151-040156 - SCREW-TAPPING
- Поз.: 47-15
16 S035-081556
- S035-081556 - BOLT-W/WASHER
- Поз.: 47-16
17 71Q6-22070GG
- 71Q6-22070GG - CONSOLE COVER-UP
- RH
- Поз.: 49
18 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 54
