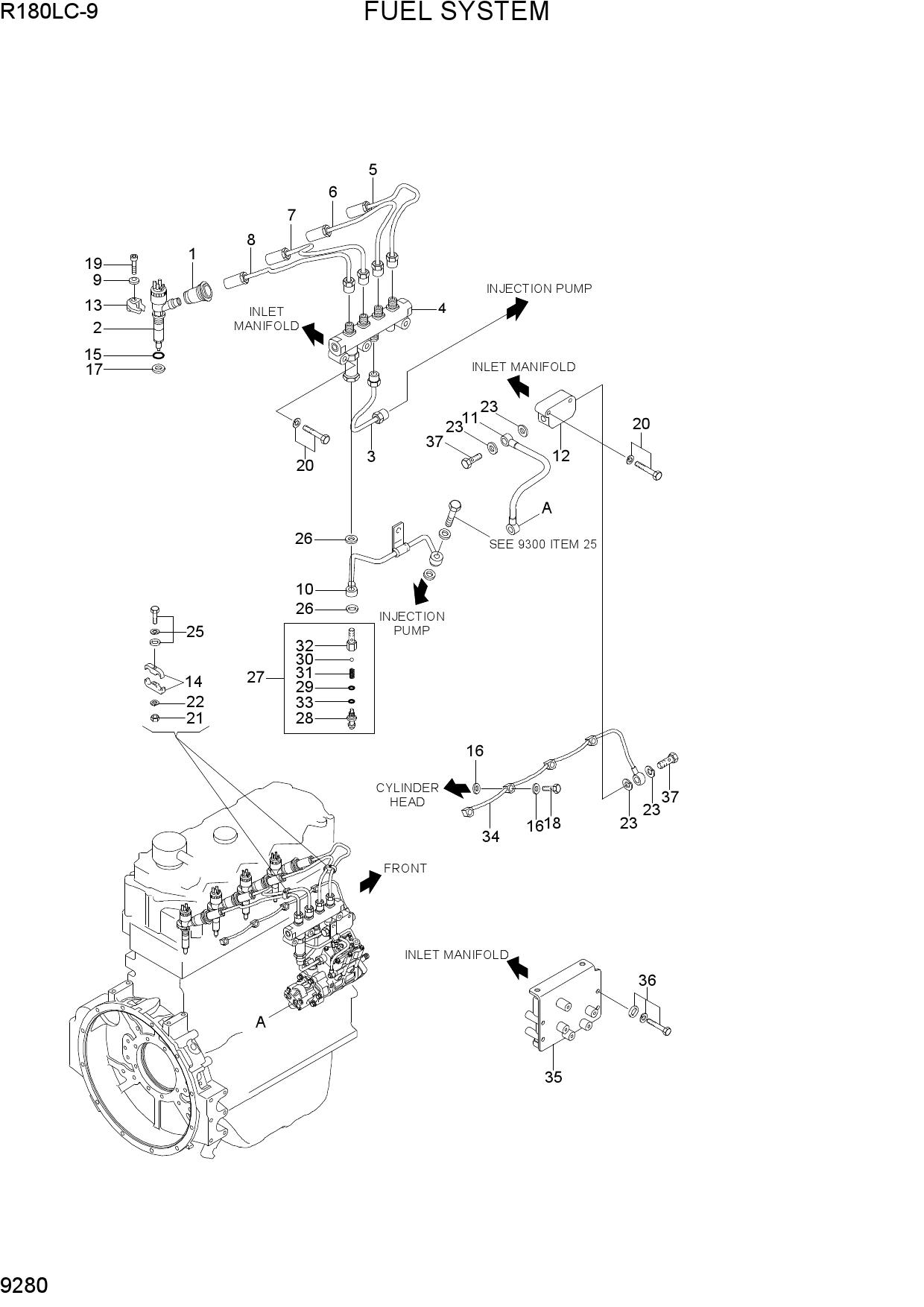

FUEL SYSTEM
1 XJAF-02400
- XJAF-02400 - SEAL-INJECTION
- Поз.: 1
2 XJAF-02679
- XJAF-02679 - INJECTOR ASSY-HSF
- Поз.: 2
3 XJAF-02402
- XJAF-02402 - PIPE-PUMP
- Поз.: 3
4 XJAF-02681
- XJAF-02681 - RAIL-4 CYLINDER
- Поз.: 4
5 XJAF-02404
- XJAF-02404 - PIPE-INJECTION NO.1
- Поз.: 5
6 XJAF-02405
- XJAF-02405 - PIPE-INJECTION NO.2
- Поз.: 6
7 XJAF-02406
- XJAF-02406 - PIPE-INJECTION NO.3
- Поз.: 7
8 XJAF-02407
- XJAF-02407 - PIPE-INJECTION NO.4
- Поз.: 8
9 XJAF-02408
- XJAF-02408 - WASHER-SPHERICAL
- Поз.: 9
10 XJAF-02409
- XJAF-02409 - PIPE-RELIEF
- Поз.: 10
11 XJAF-02410
- XJAF-02410 - HOSE-FUEL
- Поз.: 11
12 XJAF-02571
- XJAF-02571 - BLOCK-FUEL RELIEF
- Поз.: 12
13 XJAF-02412
- XJAF-02412 - GRAND-NOZZLE
- Поз.: 13
14 XJAF-02413
- XJAF-02413 - CLAMP-PIPE
- Поз.: 14
15 XJAF-02414
- XJAF-02414 - O-RING
- Поз.: 15
16 XJAF-00206
- XJAF-00206 - WASHER-SEALING
- Поз.: 16
17 XJAF-00426
- XJAF-00426 - GASKET-NOZZLE
- Поз.: 17
18 XJAF-00685
- XJAF-00685 - BOLT-EYE
- Поз.: 18
19 XJAF-02415
- XJAF-02415 - BOLT-HEXAGON SOCKET
- Поз.: 19
20 XJAF-00730
- XJAF-00730 - BOLT-W/WASHER
- Поз.: 20
21 XJAF-00555
- XJAF-00555 - NUT-LOCK
- Поз.: 21
22 XJAF-01871
- XJAF-01871 - WASHER-PLAIN
- Поз.: 22
23 XJAF-02416
- XJAF-02416 - WASHER
- Поз.: 23
24 XJAF-02418
- XJAF-02418 - BOLT-W/WASHER
- Поз.: 25
25 XJAF-02419
- XJAF-02419 - WASHER-SEALING
- Поз.: 26
26 XJAF-02516
- XJAF-02516 - VALVE ASSY-CHECK
- Поз.: 27
27 XJAF-00371
- XJAF-00371 - GASKET
- Поз.: 33
28 XJAF-02421
- XJAF-02421 - PIPE-FUEL INJ/D
- Поз.: 34
29 XJAF-02422
- XJAF-02422 - BRACKET-COVER
- Поз.: 35
30 XJAF-02572
- XJAF-02572 - BOLT-W/WASHER
- Поз.: 36
31 XJAF-02424
- XJAF-02424 - BOLT-EYE
- Поз.: 37
32 XJAF-02998
- XJAF-02998 - REMOVER-INJECTOR
- Поз.: 50
