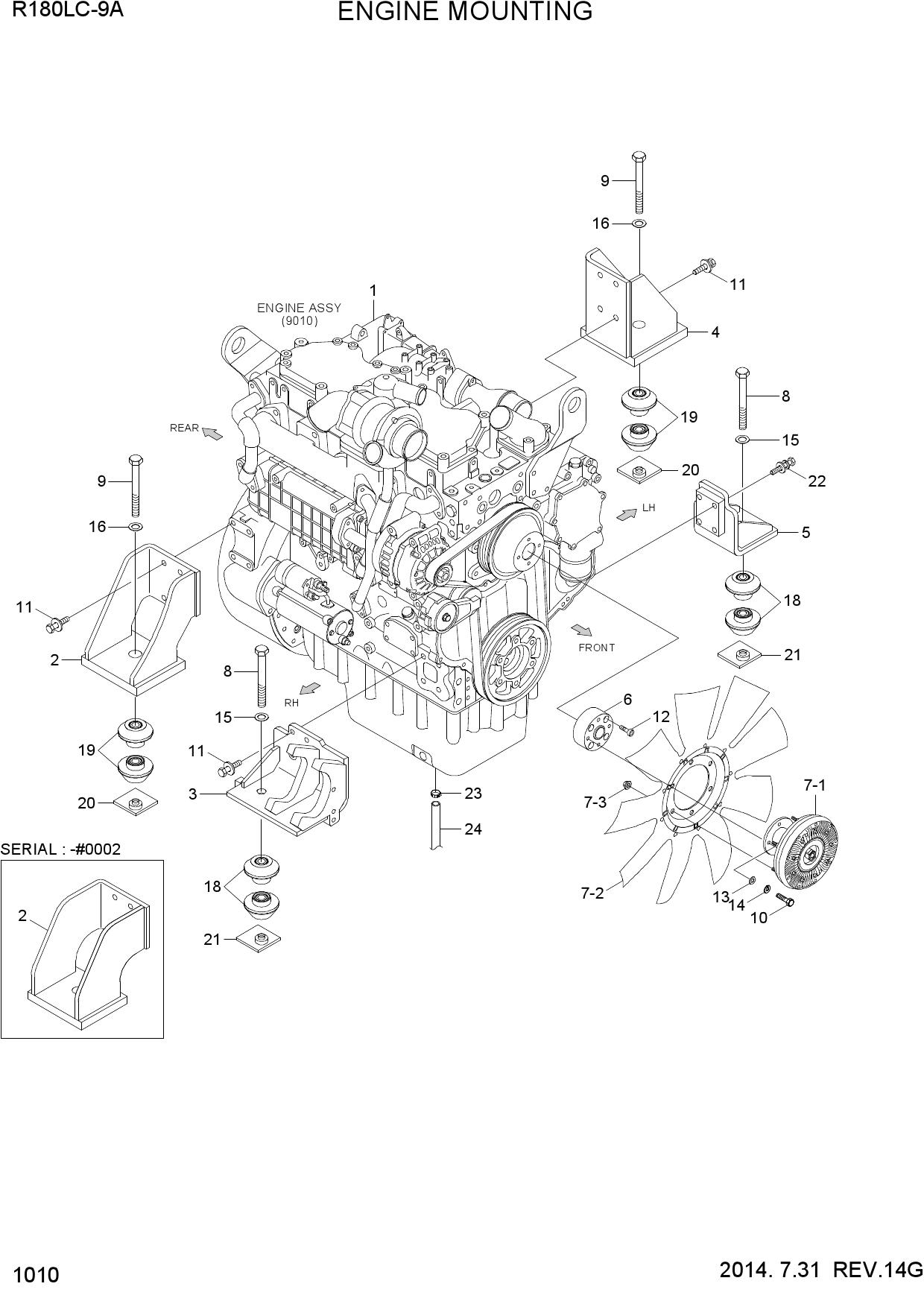

ENGINE MOUNTING
1 11Q5-07010
- 11Q5-07010 - ENGINE ASSY
- Поз.: 1
2 11Q4-01110
- 11Q4-01110 - BRACKET WA-REAR
- Поз.: 2
3 11Q4-97470
- 11Q4-97470 - BRACKET-COMP
- Поз.: 3
4 11Q4-97471
- 11Q4-97471 - BRACKET-COMP
- Поз.: 3
5 11Q4-01130
- 11Q4-01130 - BRACKET
- Поз.: 4
6 11Q4-01140
- 11Q4-01140 - BRACKET-FRONT
- Поз.: 5
7 11Q4-01350
- 11Q4-01350 - BRACKET-FRONT
- Поз.: 5
8 11Q4-07211
- 11Q4-07211 - SPACER
- Поз.: 6
9 11Q6-00360
- 11Q6-00360 - FAN CLUTCH ASSY
- Поз.: 7
10 11Q6-00361
- 11Q6-00361 - FAN CLUTCH ASSY
- Поз.: 7
11 11Q6-01190
- 11Q6-01190 - CLUTCH-FAN
- Поз.: 7-1
12 11Q6-01230
- 11Q6-01230 - FAN-COOLING
- Поз.: 7-2
13 S285-081006
- S285-081006 - NUT-FLANGED
- Поз.: 7-3
14 S017-201356
- S017-201356 - BOLT-HEX
- Поз.: 8
15 S017-241906
- S017-241906 - BOLT-HEX
- Поз.: 9
16 S027-100306
- S027-100306 - BOLT-MINI HEX
- Поз.: 10
17 S037-123556
- S037-123556 - BOLT-W/WASHER
- Поз.: 11
18 S109-080306
- S109-080306 - BOLT-SOCKET
- Поз.: 12
19 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 13
20 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 14
21 S441-200006
- S441-200006 - WASHER-HARDENED
- Поз.: 15
22 S441-240006
- S441-240006 - WASHER-HARDENED
- Поз.: 16
23 11N6-10445
- 11N6-10445 - RUBBER-MOUNT
- Поз.: 18
24 11N6-13050
- 11N6-13050 - RUBBER-MOUNT
- Поз.: 19
25 11N8-07200
- 11N8-07200 - NUT-STOPPER
- Поз.: 20
26 11N6-00150
- 11N6-00150 - NUT-STOPPER
- Поз.: 21
27 S037-125526
- S037-125526 - BOLT-W/WASHER
- Поз.: 22
28 11Q8-03100
- 11Q8-03100 - HOSE-BREATER
- Поз.: 23
29 S520-027000
- S520-027000 - CLAMP-HOSE
- Поз.: 24
