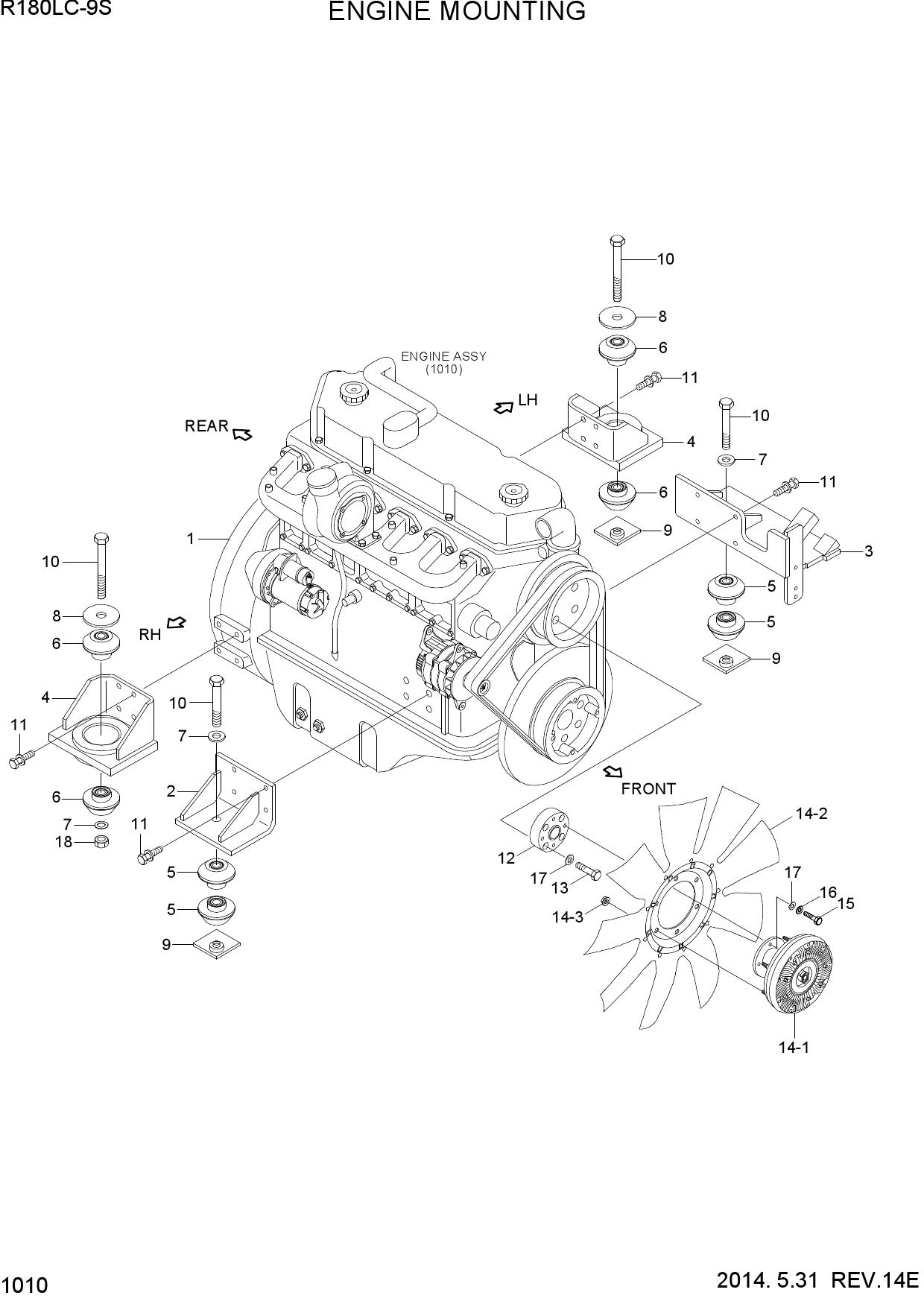

ENGINE MOUNTING
1 11N5-00011
- 11N5-00011 - ENGINE ASSY
- Поз.: 1
2 11N5-00020
- 11N5-00020 - BRACKET-FRONT
- Поз.: 2
3 11N5-00041
- 11N5-00041 - BRACKET-COMP
- Поз.: 3
4 11N5-00030
- 11N5-00030 - BRACKET-REAR
- Поз.: 4
5 11N6-10445
- 11N6-10445 - RUBBER-MOUNT
- Поз.: 5
6 11N6-10450
- 11N6-10450 - RUBBER-MOUNT
- Поз.: 6
7 S441-200006
- S441-200006 - WASHER-HARDENED
- Поз.: 7
8 11N4-00060
- 11N4-00060 - WASHER-MOUNT
- Поз.: 8
9 11N5-00060
- 11N5-00060 - STOPPER-NUT
- Поз.: 9
10 S017-201406
- S017-201406 - BOLT-HEX
- Поз.: 10
11 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 11
12 11Q5-08110
- 11Q5-08110 - SPACER-FAN
- Поз.: 12
13 11Q5-08100
- 11Q5-08100 - SPACER
- Поз.: 12
14 S018-100256
- S018-100256 - BOLT-HEX
- Поз.: 13
15 11Q5-00020
- 11Q5-00020 - FAN-COOLING
- Поз.: 14
16 11Q5-00021
- 11Q5-00021 - COOLING FAN
- Поз.: 14
17 11Q6-00360
- 11Q6-00360 - FAN CLUTCH ASSY
- Поз.: 14
18 11Q6-00361
- 11Q6-00361 - FAN CLUTCH ASSY
- Поз.: 14
19 11Q6-01190
- 11Q6-01190 - CLUTCH-FAN
- Поз.: 14-1
20 11Q6-01230
- 11Q6-01230 - FAN-COOLING
- Поз.: 14-2
21 S285-081006
- S285-081006 - NUT-FLANGED
- Поз.: 14-3
22 S027-100306
- S027-100306 - BOLT-MINI HEX
- Поз.: 15
23 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 16
24 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 17
25 S205-20100B
- S205-20100B - NUT-HEX
- Поз.: 18
