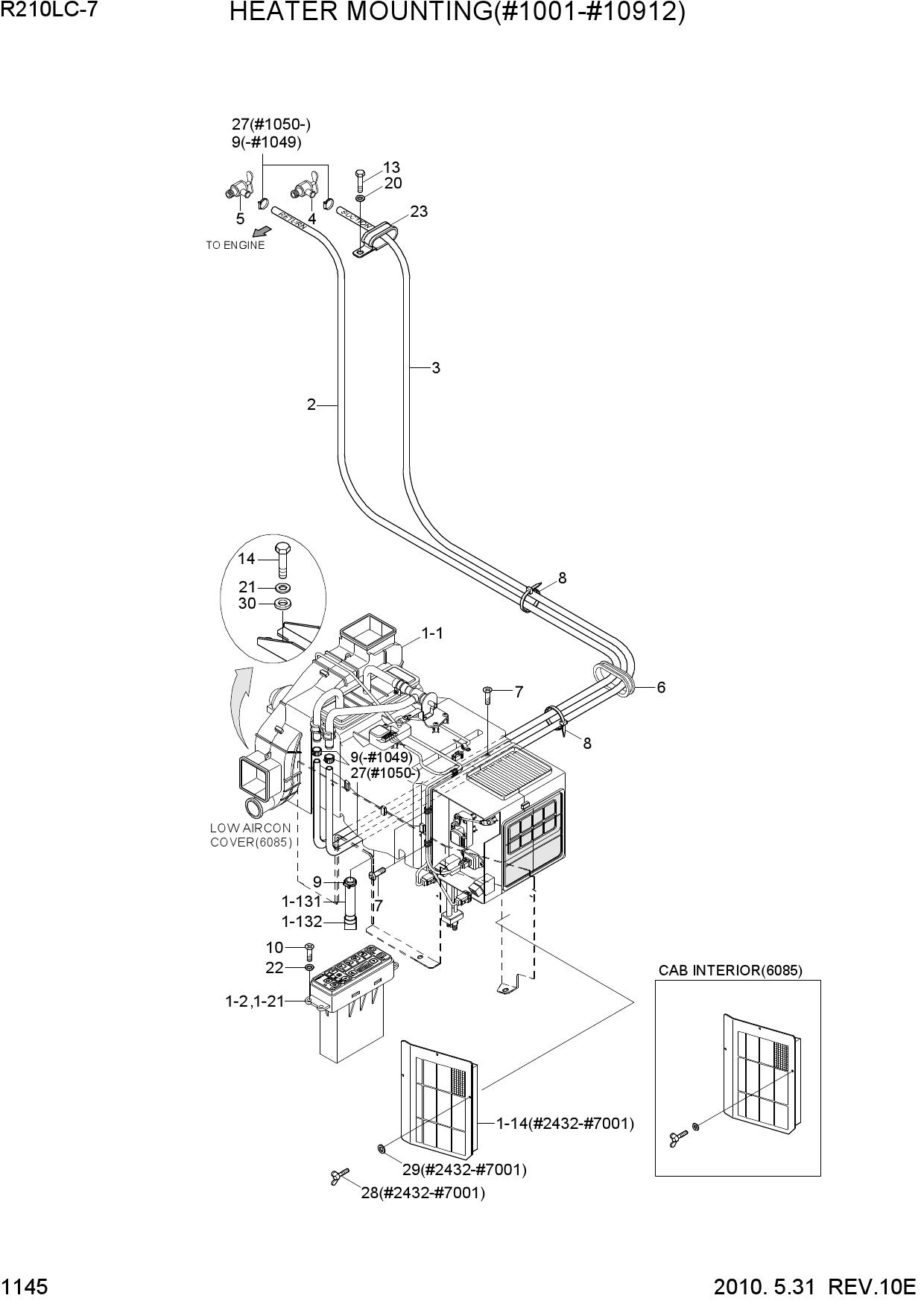

HEATER MOUNTING(#1001-10912)
1 11N6-90310
- 11N6-90310 - HEATER ASSY
- Поз.: 1
2 11N6-90320
- 11N6-90320 - HEATER UNIT
- Поз.: 1-1
3 11N6-90321
- 11N6-90321 - HEATER UNIT
- Поз.: 1-1
4 11N6-90330
- 11N6-90330 - CONTROL ASSY
- Поз.: 1-2
5 11N6-90331
- 11N6-90331 - CONTROL ASSY
- Поз.: 1-2
6 11N6-90860
- 11N6-90860 - DECAL-HEATER
- Поз.: 1-21
7 11EK-92090
- 11EK-92090 - HOSE-DRAIN
- Поз.: 1-13
8 AM800-001-04-3
- AM800-001-04-3 - HOSE-DRAIN
- Поз.: 1-131
9 4CC-3354Z
- 4CC-3354Z - VALVE-VACUUM
- Поз.: 1-132
10 11N6-90340
- 11N6-90340 - FILTER-REC
- Поз.: 1-14
11 11EK-92070
- 11EK-92070 - HOSE-HEATER
- Поз.: 2
12 11EH-92050
- 11EH-92050 - HOSE-HEATER
- Поз.: 3
13 11L7-90150
- 11L7-90150 - VALVE-HEATER
- Поз.: 4
14 14L1-01350
- 14L1-01350 - VALVE-HEATER
- Поз.: 5
15 S760-041008
- S760-041008 - GROMMET
- Поз.: 6
16 S152-040122
- S152-040122 - SCREW-TAPPING
- Поз.: 7
17 S551-035146
- S551-035146 - TIE-WIRE
- Поз.: 8
18 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 9
19 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 9
20 S179-050206
- S179-050206 - SCREW-SOCKET RD HD
- Поз.: 10
21 S017-100162
- S017-100162 - BOLT-HEX
- Поз.: 13
22 S017-120256
- S017-120256 - BOLT-HEX
- Поз.: 14
23 S403-102002
- S403-102002 - WASHER-PLAIN
- Поз.: 20
24 S441-120006
- S441-120006 - WASHER-HARDENED
- Поз.: 21
25 S403-052002
- S403-052002 - WASHER-PLAIN
- Поз.: 22
26 S543-400002
- S543-400002 - CLAMP-TUBE
- Поз.: 23
27 S572-220006
- S572-220006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 27
28 S091-060156
- S091-060156 - BOLT-WING
- Поз.: 28
29 S403-062006
- S403-062006 - WASHER-PLAIN
- Поз.: 29
30 73NB-56400
- 73NB-56400 - SHIM
- Поз.: 30
