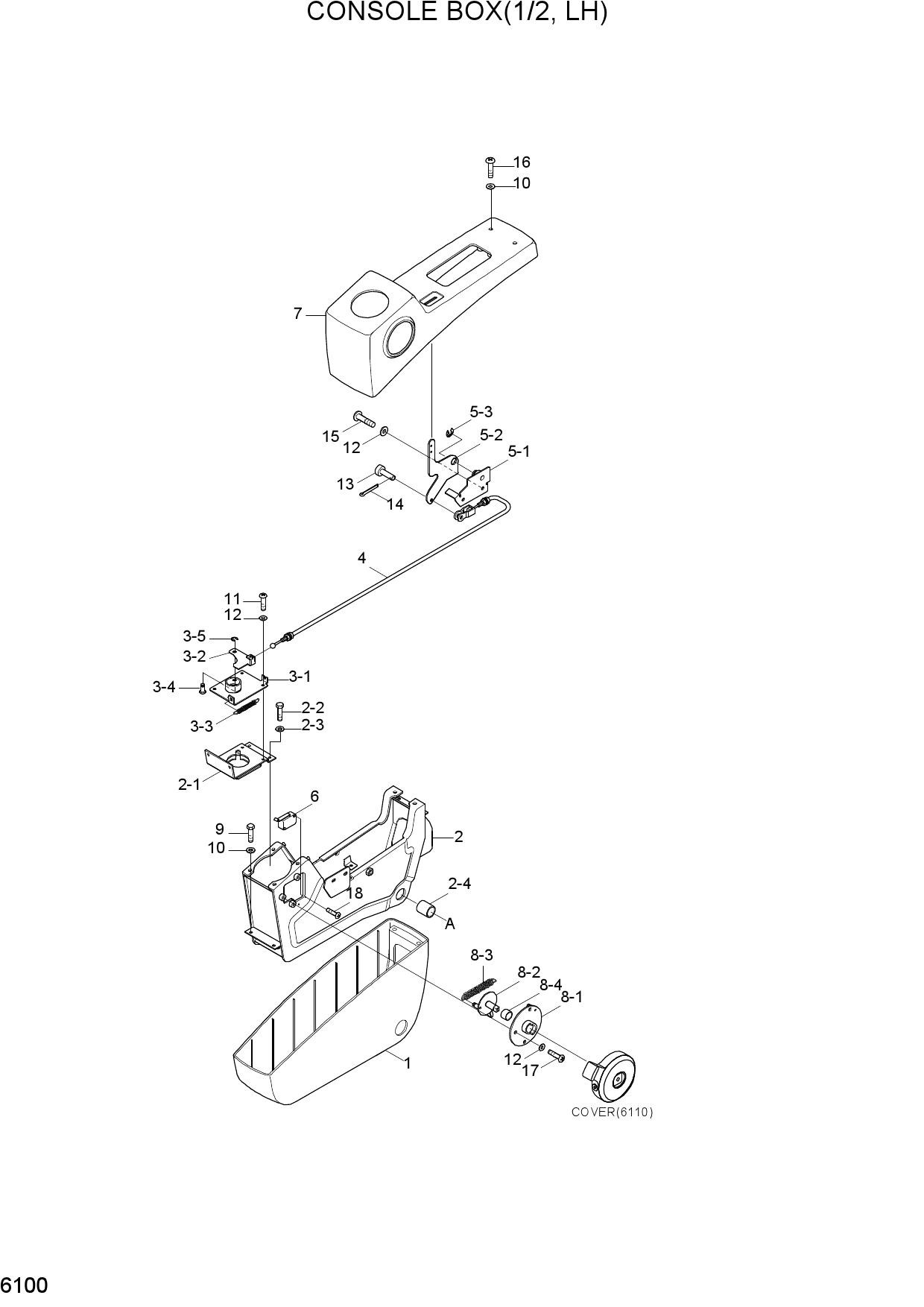

CONSOLE BOX(1/2, LH)
1 71N6-20071
- 71N6-20071 - CONSOLE BOX-LOW
- Поз.: 1
2 71N6-20051
- 71N6-20051 - C/BOX FRAME WA-LH
- Поз.: 2
3 71N6-21320
- 71N6-21320 - BRACKET-TILT
- Поз.: 2-1
4 S015-060146
- S015-060146 - BOLT-HEX
- Поз.: 2-2
5 S403-062006
- S403-062006 - WASHER-PLAIN
- Поз.: 2-3
6 S731-020025
- S731-020025 - BUSHING-DU
- Поз.: 2-4
7 71N6-20091
- 71N6-20091 - TILT CATCH ASSY
- Поз.: 3
8 71N6-21420
- 71N6-21420 - TILT CATCH-LOW
- Поз.: 3-1
9 71N6-21451
- 71N6-21451 - TILT CATCH-UP
- Поз.: 3-2
10 71N6-21460
- 71N6-21460 - SPRING
- Поз.: 3-3
11 71N6-21470
- 71N6-21470 - PIN
- Поз.: 3-4
12 P560-090002
- P560-090002 - RETAINING RING-E TYPE
- Поз.: 3-5
13 71N6-20100
- 71N6-20100 - CABLE-PULL
- Поз.: 4
14 71N6-20120
- 71N6-20120 - TILT LEVER ASSY
- Поз.: 5
15 71N6-21480
- 71N6-21480 - BRACKET-LOW
- Поз.: 5-1
16 71N6-21510
- 71N6-21510 - BRACKET-UP
- Поз.: 5-2
17 P560-100006
- P560-100006 - RETAINING RING-E TYPE
- Поз.: 5-3
18 21N8-20300
- 21N8-20300 - SWITCH-MICRO
- Поз.: 6
19 71N6-20131
- 71N6-20131 - CONSOLE BOX-UP(LH)
- Поз.: 7
20 71N6-20141
- 71N6-20141 - SAFETY BRACKET ASSY
- Поз.: 8
21 71N6-21521
- 71N6-21521 - BRACKET-LOW
- Поз.: 8-1
22 71N6-21560
- 71N6-21560 - BRACKET-UP
- Поз.: 8-2
23 71N6-21610
- 71N6-21610 - SPRING
- Поз.: 8-3
24 S731-020010
- S731-020010 - BUSHING-DU
- Поз.: 8-4
25 S015-050206
- S015-050206 - BOLT-HEX
- Поз.: 9
26 S403-052006
- S403-052006 - WASHER-PLAIN
- Поз.: 10
27 S161-060126
- S161-060126 - SCREW-CROSS R/ROUND
- Поз.: 11
28 S403-062006
- S403-062006 - WASHER-PLAIN
- Поз.: 12
29 S491-060156
- S491-060156 - PIN-CLEVIS
- Поз.: 13
30 S461-080202
- S461-080202 - PIN-SPLIT
- Поз.: 14
31 S161-060166
- S161-060166 - SCREW-CROSS R/ROUND
- Поз.: 15
32 S161-050166
- S161-050166 - SCREW-CROSS R/ROUND
- Поз.: 16
33 S175-060162
- S175-060162 - SCREW-SOCKET RD HD
- Поз.: 17
34 S161-030162
- S161-030162 - SCREW-CROSS R/ROUND
- Поз.: 18
