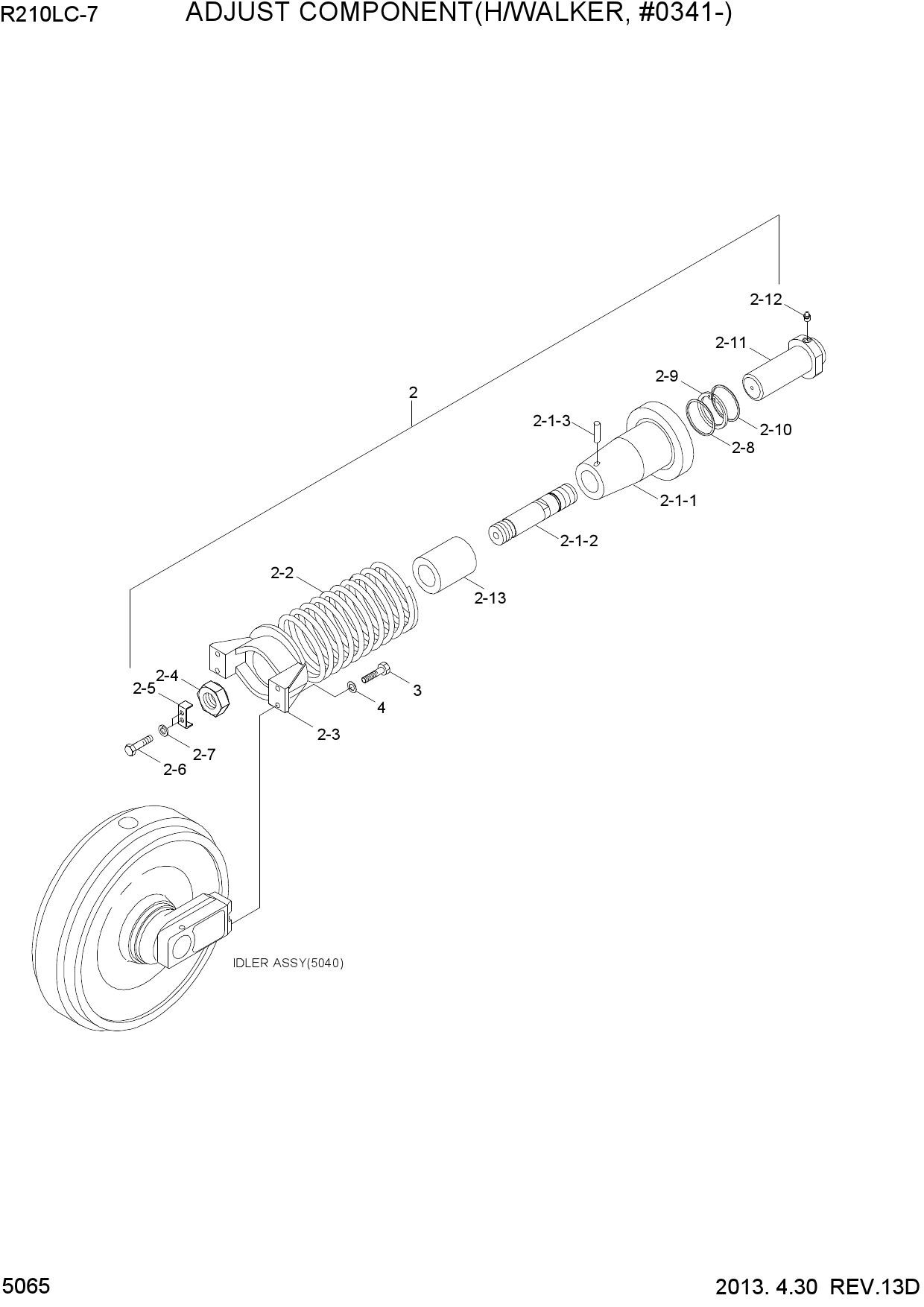

ADJUST COMPONENT(H/WALKER, #0341-)
1 81N7-14010
- 81N7-14010 - T/CYLINDER ASSY
- Поз.: 2
2 81N7-14010BG
- 81N7-14010BG - T/CYLINDER ASSY
- Поз.: 2
3 81N7-14011BG
- 81N7-14011BG - T/CYLINDER ASSY
- Поз.: 2
4 81N7-14300
- 81N7-14300 - BODY ASSY
- Поз.: 2-1
5 81N7-14302
- 81N7-14302 - BODY ASSY
- Поз.: 2-1
6 81N6-14100
- 81N6-14100 - BODY
- Поз.: 2-1-1
7 81N6-14102
- 81N6-14102 - BODY-T/CYL
- Поз.: 2-1-1
8 81N7-14110
- 81N7-14110 - BAR-TIE
- Поз.: 2-1-2
9 81N7-14111
- 81N7-14111 - BAR-TIE
- Поз.: 2-1-2
10 81EM-14210
- 81EM-14210 - PIN-SPRING
- Поз.: 2-1-3
11 81N7-14120
- 81N7-14120 - SPRING
- Поз.: 2-2
12 81N6-14130
- 81N6-14130 - BRACKET
- Поз.: 2-3
13 81EM-14121
- 81EM-14121 - NUT-LOCK
- Поз.: 2-4
14 81EM-14122
- 81EM-14122 - NUT-LOCK
- Поз.: 2-4
15 81EM-14130
- 81EM-14130 - PLATE-LOCK
- Поз.: 2-5
16 S018-120252
- S018-120252 - BOLT-HEX
- Поз.: 2-6
17 S411-120002
- S411-120002 - WASHER-SPRING
- Поз.: 2-7
18 81E1-3104
- 81E1-3104 - PACKING-ROD
- Поз.: 2-8
19 81E1-3204
- 81E1-3204 - RING-BACK UP
- Поз.: 2-9
20 81E1-3304
- 81E1-3304 - SEAL-DUST
- Поз.: 2-10
21 81N6-14210
- 81N6-14210 - ROD
- Поз.: 2-11
22 E181-2013
- E181-2013 - VALVE-GREASE
- Поз.: 2-12
23 81N6-14240
- 81N6-14240 - VALVE-GREASE
- Поз.: 2-12
24 81N7-14220
- 81N7-14220 - STOPPER-TUBE
- Поз.: 2-13
25 81N7-14221
- 81N7-14221 - TUBE-STOPPER
- Поз.: 2-13
26 S017-160502
- S017-160502 - BOLT-HEX
- Поз.: 3
27 S017-160506
- S017-160506 - BOLT-HEX
- Поз.: 3
28 S411-160002
- S411-160002 - WASHER-SPRING
- Поз.: 4
29 S411-160006
- S411-160006 - WASHER-SPRING
- Поз.: 4
