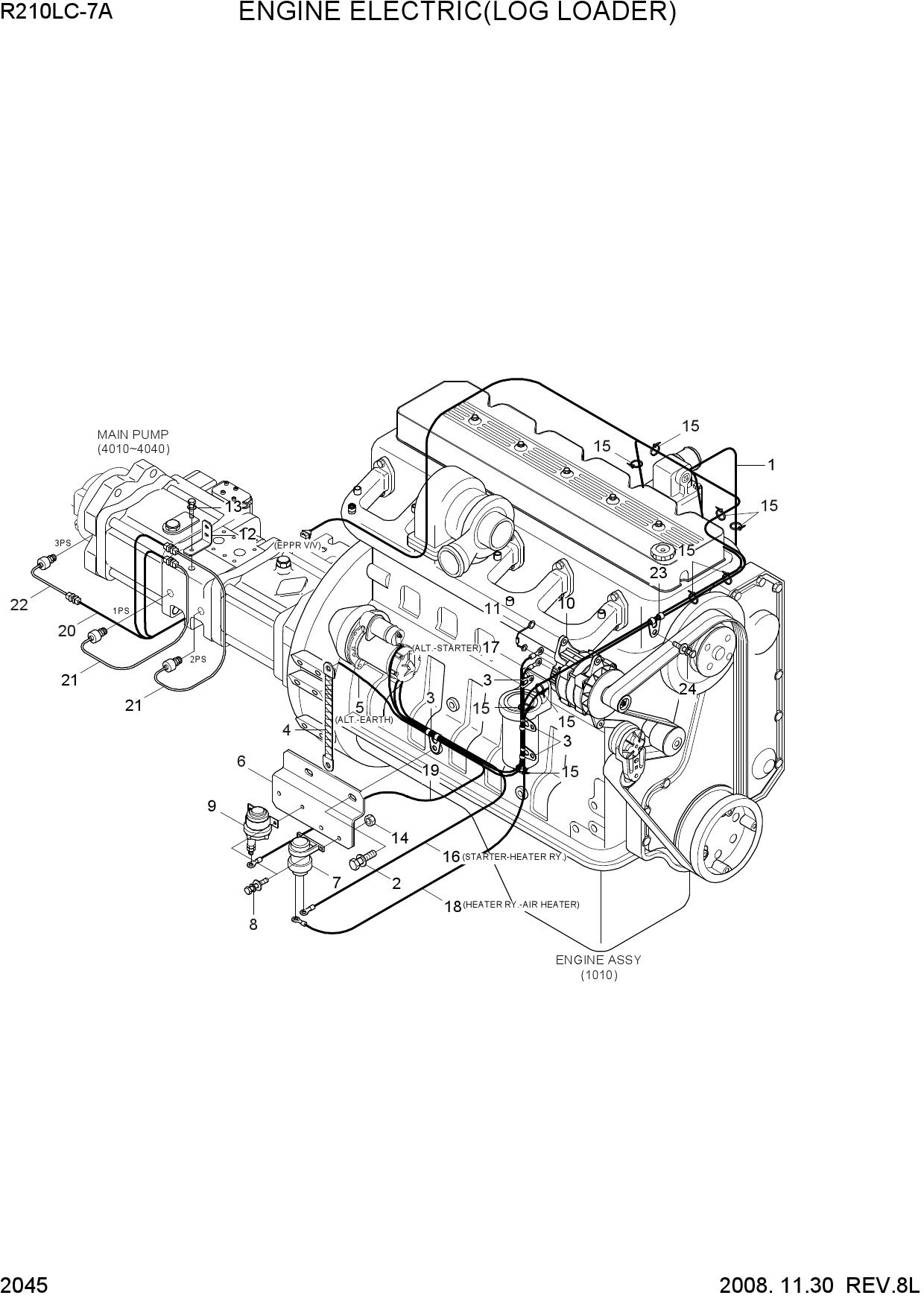

ENGINE ELECTRIC(LOG LOADER)
1 21N8-42021
- 21N8-42021 - HARNESS-ENGINE
- Поз.: 1
2 S037-122056
- S037-122056 - BOLT-W/WASHER
- Поз.: 2
3 21E9-00170
- 21E9-00170 - CLIP-HARNESS
- Поз.: 3
4 25D1-10170
- 25D1-10170 - STRAP-EARTH
- Поз.: 4
5 21N8-40080
- 21N8-40080 - CABLE(ALT-EARTH)
- Поз.: 5
6 21Q6-40181
- 21Q6-40181 - BRACKET
- Поз.: 6
7 21N8-42050
- 21N8-42050 - RELAY-HEATER
- Поз.: 7
8 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 8
9 21N6-30120
- 21N6-30120 - RELAY-START
- Поз.: 9
10 21E6-40030
- 21E6-40030 - ALTERNATOR ASSY
- Поз.: 10
11 21E1-21120
- 21E1-21120 - WIRE LINK-ALTERNATOR
- Поз.: 11
12 21N6-25010
- 21N6-25010 - PLATE-PUMP PS
- Поз.: 12
13 S037-101556
- S037-101556 - BOLT-W/WASHER
- Поз.: 13
14 S552-050203
- S552-050203 - CLAMP-BAND
- Поз.: 15
15 21LC-40061
- 21LC-40061 - CABLE(STARTER-HT RY)
- Поз.: 16
16 21N8-10200
- 21N8-10200 - CABLE(ALT-STARTER)
- Поз.: 17
17 21LF-20141
- 21LF-20141 - CABLE(HEAT RY-AIR HEAT)
- Поз.: 18
18 21N8-40071
- 21N8-40071 - HARNESS-RELAY
- Поз.: 19
19 21W5-10020
- 21W5-10020 - HARNESS-PUMP PS
- Поз.: 20
20 21EG-32200
- 21EG-32200 - SENDER-PRESSURE
- Поз.: 21
21 21EG-32210
- 21EG-32210 - SENDER-PRESSURE
- Поз.: 22
22 S593-000902
- S593-000902 - CLIP-HARNESS
- Поз.: 23
23 S593-000802
- S593-000802 - CLIP-HARNESS
- Поз.: 23
24 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 24
