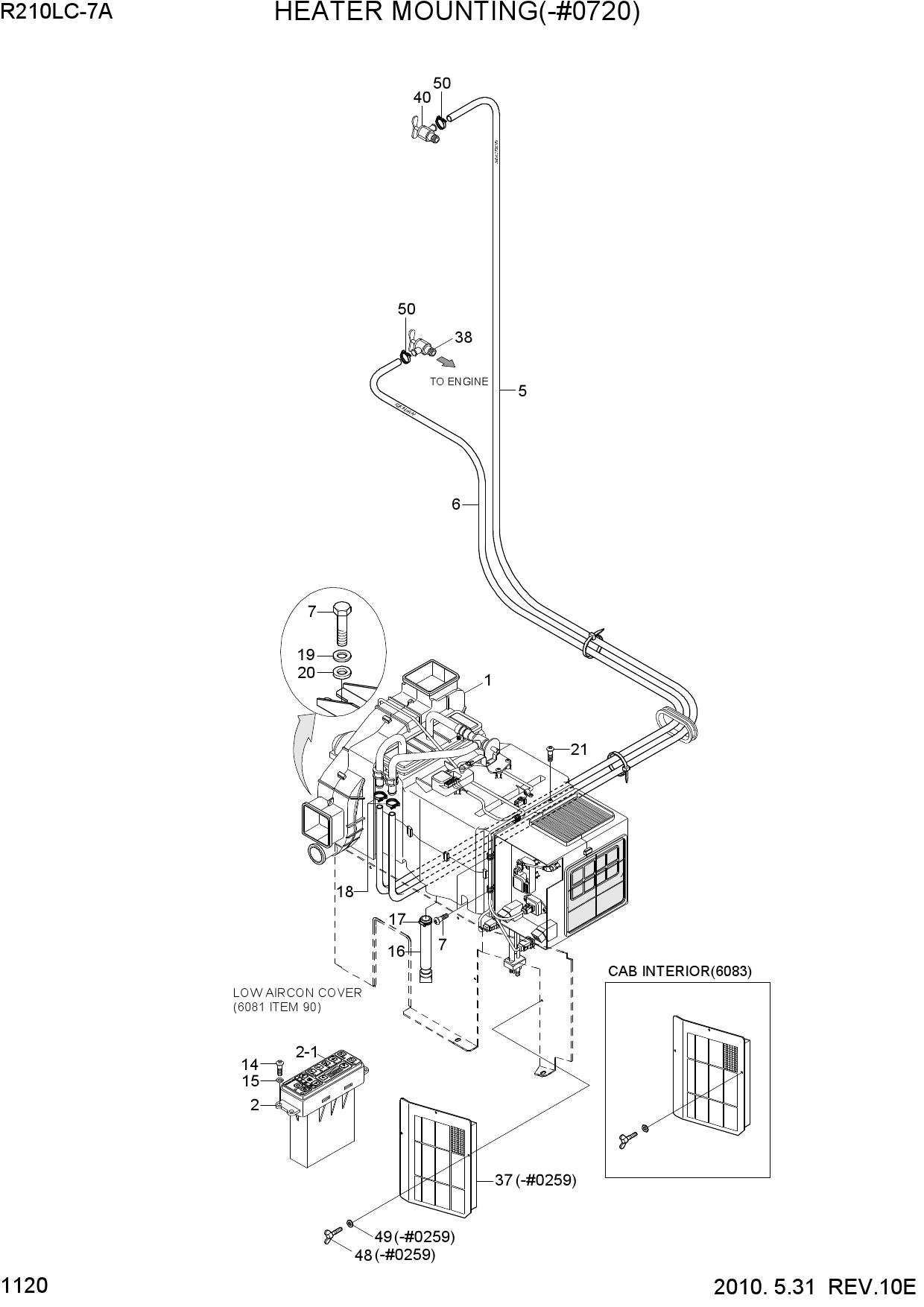

HEATER MOUNTING(-#0720)
1 11N6-90331
- 11N6-90331 - CONTROL ASSY
- Поз.: 2
2 11N6-90860
- 11N6-90860 - DECAL-HEATER
- Поз.: 2-1
3 11N4-92040
- 11N4-92040 - HOSE-RETURN
- Поз.: 5
4 11EK-92070
- 11EK-92070 - HOSE-HEATER
- Поз.: 6
5 S017-120256
- S017-120256 - BOLT-HEX
- Поз.: 7
6 S179-050206
- S179-050206 - SCREW-SOCKET RD HD
- Поз.: 14
7 S403-05200B
- S403-05200B - WASHER-PLAIN
- Поз.: 15
8 11EK-92090
- 11EK-92090 - HOSE-DRAIN
- Поз.: 16
9 S520-020000
- S520-020000 - CLAMP-HOSE
- Поз.: 17
10 S572-220006
- S572-220006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 18
11 S441-120006
- S441-120006 - WASHER-HARDENED
- Поз.: 19
12 73NB-56400
- 73NB-56400 - SHIM
- Поз.: 20
13 S151-040126
- S151-040126 - SCREW-TAPPING
- Поз.: 21
14 11N6-90340
- 11N6-90340 - FILTER-REC
- Поз.: 37
15 14L1-01350
- 14L1-01350 - VALVE-HEATER
- Поз.: 38
16 11L7-90150
- 11L7-90150 - VALVE-HEATER
- Поз.: 40
17 S091-060156
- S091-060156 - BOLT-WING
- Поз.: 48
18 S403-06100B
- S403-06100B - WASHER-PLAIN
- Поз.: 49
19 S572-220006
- S572-220006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 50
