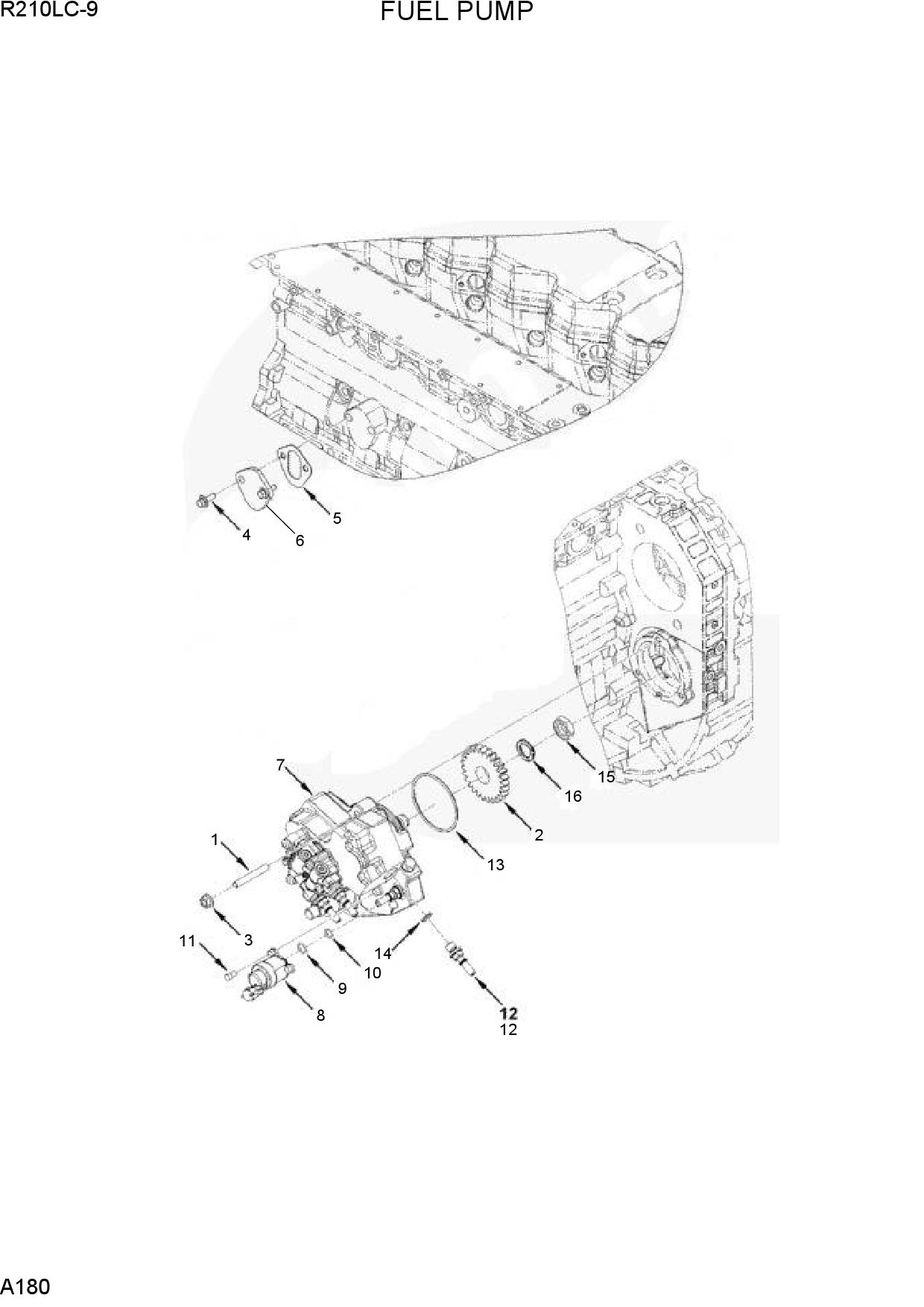

FUEL PUMP
1 XKDE-01478
- XKDE-01478 - STUD-DOUBLE END PLAIN
- Поз.: 1
2 XKDE-01125
- XKDE-01125 - GEAR-FUEL PUMP
- Поз.: 2
3 XKDE-00321
- XKDE-00321 - NUT-HEX FLANGE
- Поз.: 3
4 XKDE-00322
- XKDE-00322 - SCREW-HEX HD CAP
- Поз.: 4
5 XKDE-00649
- XKDE-00649 - GASKET-COVER PLATE
- Поз.: 5
6 XKDE-01283
- XKDE-01283 - PLATE-COVER
- Поз.: 6
7 XKDE-01320
- XKDE-01320 - PUMP-FUEL
- Поз.: 7
8 XKDE-00825
- XKDE-00825 - ACTUATOR-ETR FUEL CNTL
- Поз.: 8
9 XKDE-01419
- XKDE-01419 - SEAL/O-RING
- Поз.: 9
10 XKDE-01420
- XKDE-01420 - SEAL/O RING
- Поз.: 10
11 XKDE-01404
- XKDE-01404 - SCREW-SOCKET HD CAP
- Поз.: 11
12 XKDE-00976
- XKDE-00976 - CONNECTOR-Q/DISCONN
- Поз.: 12
13 XKDE-01414
- XKDE-01414 - SEAL/O-RING
- Поз.: 13
14 XKDE-01557
- XKDE-01557 - WASHER-SEALING
- Поз.: 14
15 XKDE-01241
- XKDE-01241 - NUT-REGULAR HEXAGON
- Поз.: 15
16 XKDE-01561
- XKDE-01561 - WASHER-SPRING
- Поз.: 16
