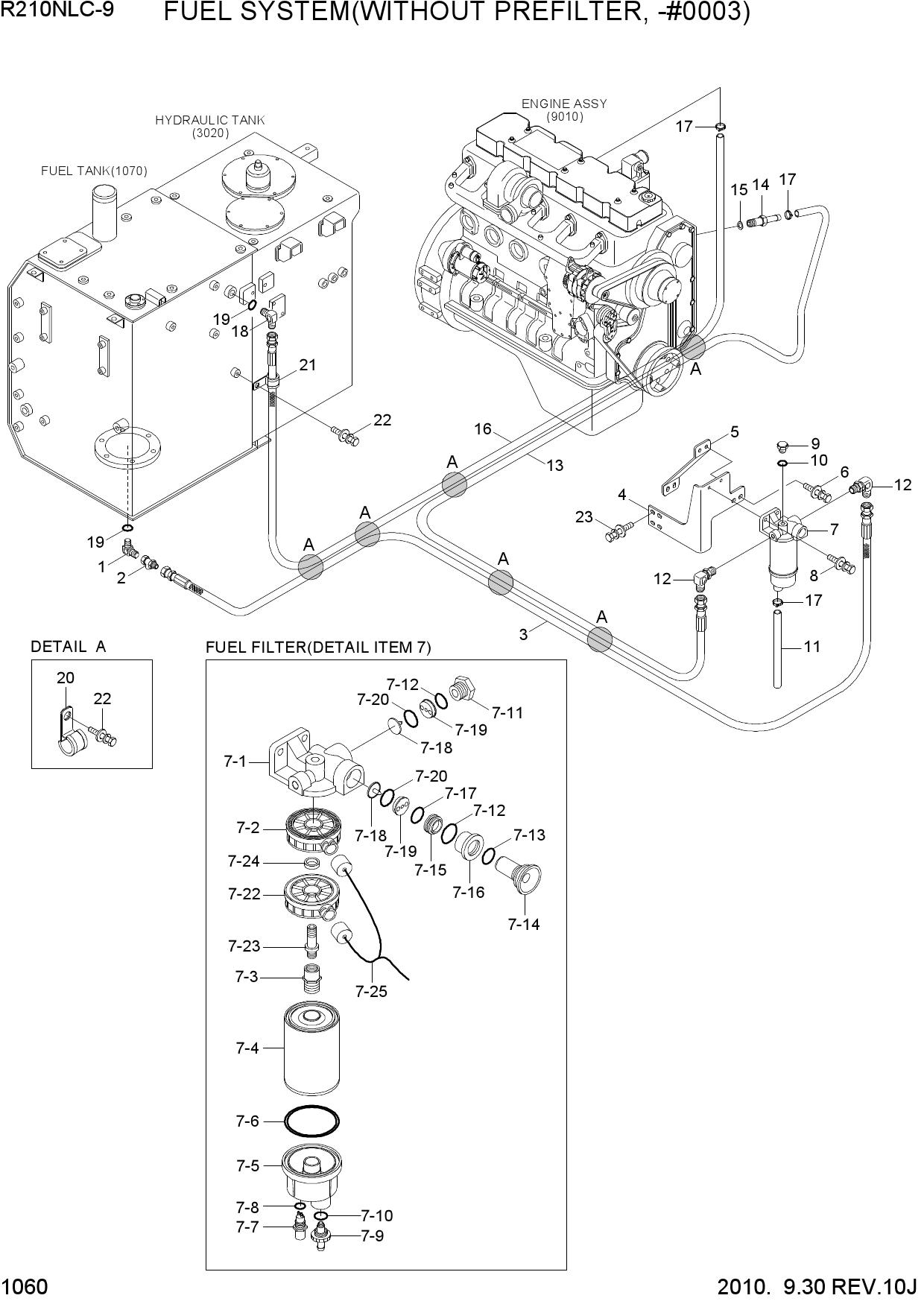

FUEL SYSTEM(WITHOUT PREFILTER, -#0003)
1 11Q4-50030
- 11Q4-50030 - ELBOW-90
- Поз.: 1
2 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 2
3 11Q6-54050
- 11Q6-54050 - HOSE-FUEL
- Поз.: 3
4 11Q6-54081
- 11Q6-54081 - BRACKET
- Поз.: 4
5 11Q6-54040
- 11Q6-54040 - BRACKET
- Поз.: 5
6 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 6
7 11NA-71001
- 11NA-71001 - FUEL FILTER & W/S ASSY
- Поз.: 7
8 11NA-73000
- 11NA-73000 - FUEL FILTER & W/S ASSY
- Поз.: 7
9 11NA-71010
- 11NA-71010 - HEAD-FILTER
- Поз.: 7-1
10 11NA-71020
- 11NA-71020 - HEATER-FUEL
- Поз.: 7-2
11 11NA-71030
- 11NA-71030 - CONNECTOR
- Поз.: 7-3
12 11NA-71041
- 11NA-71041 - ELEMENT ASSY
- Поз.: 7-4
13 11NA-71050
- 11NA-71050 - BOWL-CLEAR
- Поз.: 7-5
14 11NA-71060
- 11NA-71060 - O-RING
- Поз.: 7-6
15 11NA-71070
- 11NA-71070 - SENSOR
- Поз.: 7-7
16 11NA-71080
- 11NA-71080 - O-RING
- Поз.: 7-8
17 11NA-71090
- 11NA-71090 - VALVE-SCREW
- Поз.: 7-9
18 11NA-71100
- 11NA-71100 - O-RING
- Поз.: 7-10
19 11NA-71020
- 11NA-71020 - HEATER-FUEL
- Поз.: 7-22
20 11Q6-50100
- 11Q6-50100 - CONNECTOR
- Поз.: 7-23
21 11Q6-50110
- 11Q6-50110 - SPACER
- Поз.: 7-24
22 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 7-25
23 S037-103526
- S037-103526 - BOLT-W/WASHER
- Поз.: 8
24 P210-101400
- P210-101400 - PLUG-HEX
- Поз.: 9
25 Y161-014001
- Y161-014001 - O-RING
- Поз.: 10
26 11Q6-54070
- 11Q6-54070 - HOSE ASSY
- Поз.: 11
27 11N8-50060
- 11N8-50060 - ELBOW-90
- Поз.: 12
28 11N8-57030
- 11N8-57030 - HOSE ASSY-FUEL
- Поз.: 13
29 11ND-40170
- 11ND-40170 - CONNECTOR
- Поз.: 14
30 P392-120000
- P392-120000 - WASHER-COPPER
- Поз.: 15
31 11N8-57000
- 11N8-57000 - HOSE ASSY-FUEL
- Поз.: 16
32 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 17
33 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 18
34 S631-018004
- S631-018004 - O-RING
- Поз.: 19
35 31L7-10220
- 31L7-10220 - CLAMP-TUBE
- INS SINGLE
- Поз.: 20
36 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 21
37 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 22
38 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 23
