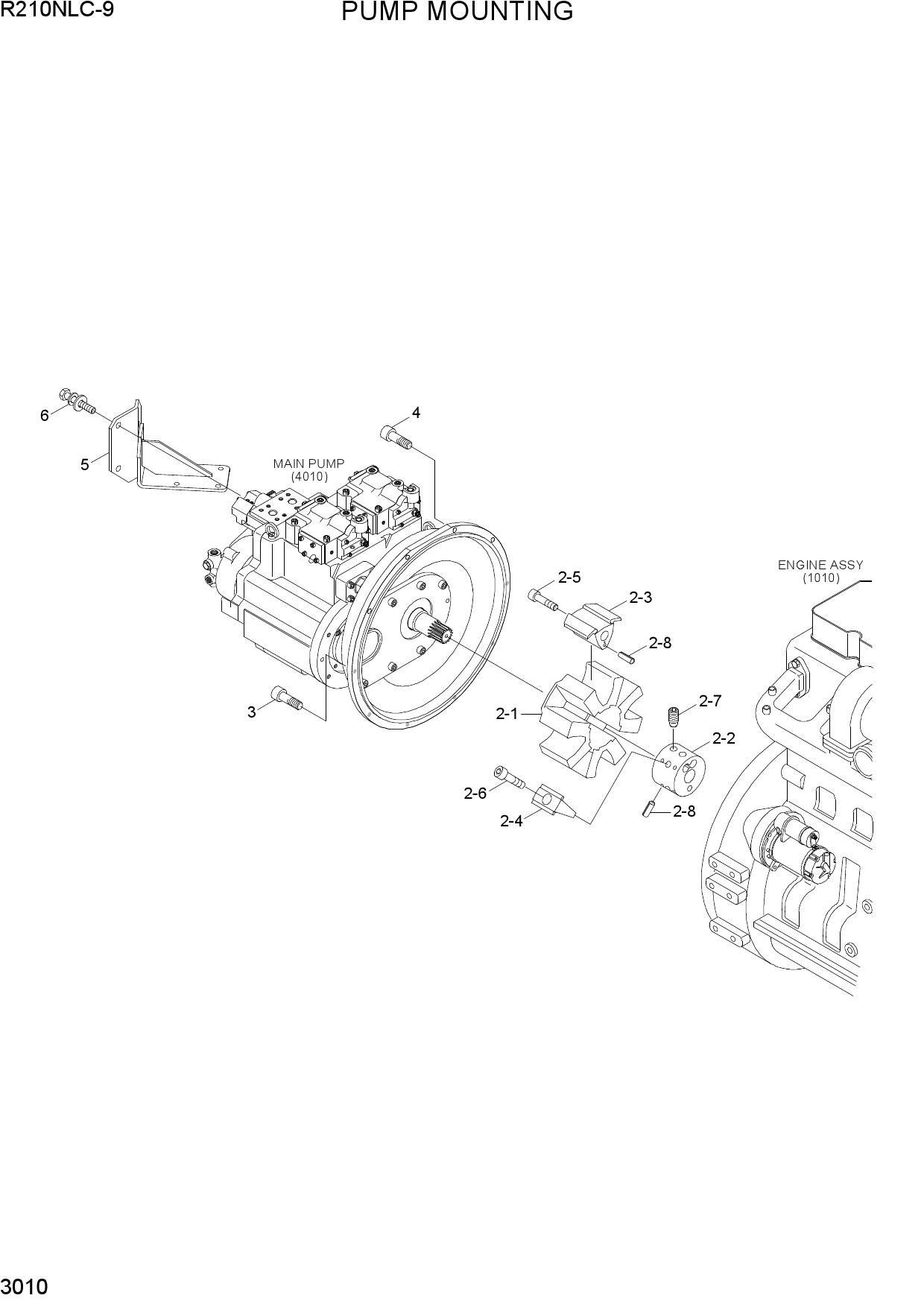

PUMP MOUNTING
1 11N6-15010
- 11N6-15010 - COUPLING ASSY
- Поз.: 2
2 11N7-10020
- 11N7-10020 - ELEMENT
- Поз.: 2-1
3 11N6-15020
- 11N6-15020 - HUB-SPLINE
- Поз.: 2-2
4 11N7-10040
- 11N7-10040 - INSERT-A
- Поз.: 2-3
5 11N7-10050
- 11N7-10050 - INSERT-R
- Поз.: 2-4
6 S109-18060D
- S109-18060D - BOLT-SOCKET
- Поз.: 2-5
7 S109-18055D
- S109-18055D - BOLT-SOCKET
- Поз.: 2-6
8 11N7-10060
- 11N7-10060 - SCREW-CLAMP
- Поз.: 2-7
9 S472-500102
- S472-500102 - PIN-SPRING
- Поз.: 2-8
10 S109-100306
- S109-100306 - BOLT-SOCKET
- Поз.: 3
11 S109-100356
- S109-100356 - BOLT-SOCKET
- Поз.: 4
12 11N6-14010
- 11N6-14010 - BRACKET
- Поз.: 5
13 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 6
