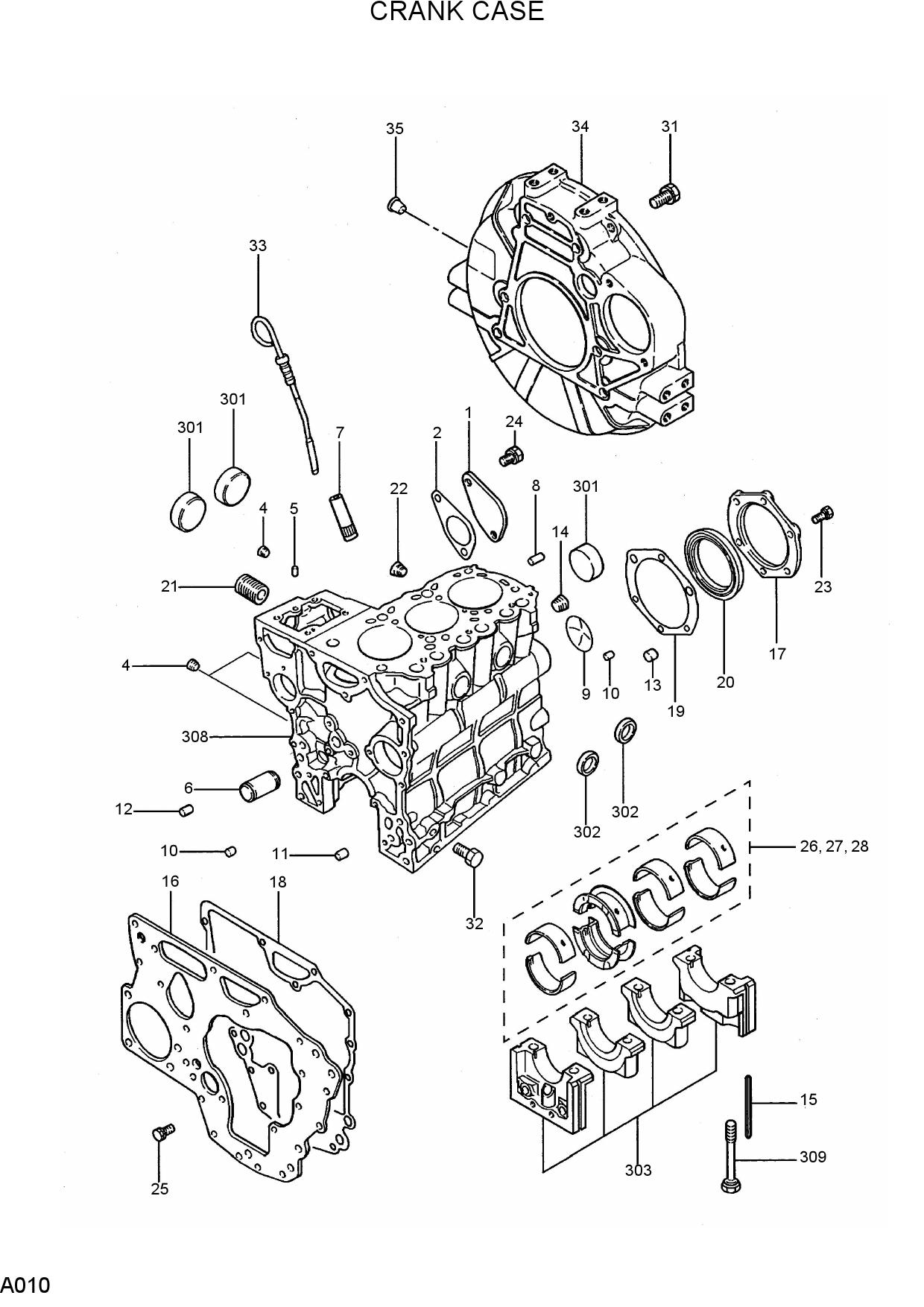

CRANK CASE
1 XJAF-02124
- XJAF-02124 - COVER
- Поз.: 1
2 XJAF-01571
- XJAF-01571 - GASKET
- Поз.: 2
3 XJAF-02105
- XJAF-02105 - BLOCK SUB ASSY-CYL
- Поз.: 3
4 XJAF-01934
- XJAF-01934 - CAP-SEALING
- Поз.: 301
5 XJAF-02025
- XJAF-02025 - CAP-SEALING
- Поз.: 302
6 XJAF-01569
- XJAF-01569 - BOLT-BEARING CAP
- Поз.: 309
7 XJAF-01570
- XJAF-01570 - PLUG-TAPER
- Поз.: 4
8 XJAF-02089
- XJAF-02089 - PIN-DOWEL
- Поз.: 5
9 XJAF-02141
- XJAF-02141 - SHAFT-IDLER
- Поз.: 6
10 XJAF-02096
- XJAF-02096 - GUIDE-OIL LEVEL
- Поз.: 7
11 XJAF-02006
- XJAF-02006 - PIN-DOWEL
- Поз.: 8
12 XJAF-02019
- XJAF-02019 - PLUG-EXPANSION
- Поз.: 9
13 XJAF-02222
- XJAF-02222 - BUSHING-KNOCK
- Поз.: 10
14 XJAF-02223
- XJAF-02223 - BUSHING-KNOCK
- Поз.: 11
15 XJAF-02225
- XJAF-02225 - BUSHING-KNOCK
- Поз.: 12
16 XJAF-02226
- XJAF-02226 - BUSHING-KNOCK
- Поз.: 13
17 XJAF-02232
- XJAF-02232 - PLUG-TAPERED
- Поз.: 14
18 XJAF-02114
- XJAF-02114 - SEAL-SIDE
- Поз.: 15
19 XJAF-02160
- XJAF-02160 - PLATE-FRONT PTO
- Поз.: 16
20 XJAF-02107
- XJAF-02107 - CASE-OIL SEAL
- Поз.: 17
21 XJAF-01573
- XJAF-01573 - GASKET-FRONT PLATE
- Поз.: 18
22 XJAF-01572
- XJAF-01572 - GASKET-OIL SEAL CASE
- Поз.: 19
23 XJAF-01945
- XJAF-01945 - SEAL-OIL REAR
- Поз.: 20
24 XJAF-01568
- XJAF-01568 - SHAFT-OIL FILTER
- Поз.: 21
25 XJAF-00613
- XJAF-00613 - PLUG-TAPER
- Поз.: 22
26 XJAF-01965
- XJAF-01965 - BOLT
- Поз.: 23
27 XJAF-01976
- XJAF-01976 - BOLT-W/WASHER
- Поз.: 24
28 XJAF-01979
- XJAF-01979 - BOLT-W/WASHER
- Поз.: 25
29 XJAF-02218
- XJAF-02218 - METAL SET
- Поз.: 26
30 XJAF-02219
- XJAF-02219 - METAL SET
- Поз.: 27
31 XJAF-02220
- XJAF-02220 - METAL SET
- Поз.: 28
32 XJAF-01983
- XJAF-01983 - BOLT-W/WASHER
- Поз.: 31
33 XJAF-01963
- XJAF-01963 - BOLT
- Поз.: 32
34 XJAF-02192
- XJAF-02192 - GAGE-OIL LEVEL
- Поз.: 33
35 XJAF-01578
- XJAF-01578 - HOUSING-FLYWHEEL
- Поз.: 34
36 XJAF-01187
- XJAF-01187 - PLUG
- Поз.: 35
