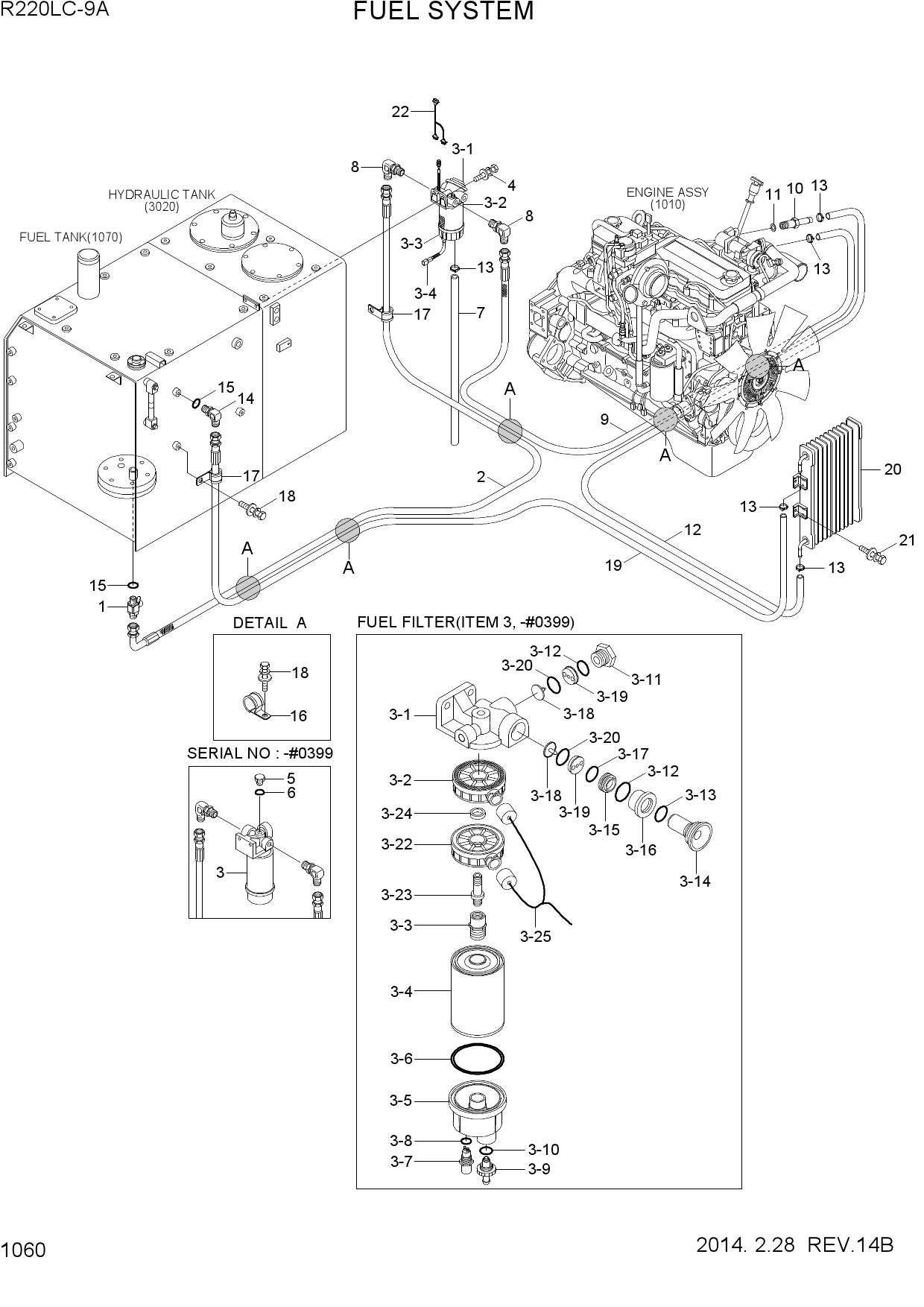

FUEL SYSTEM
1 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 1
2 11N8-57020
- 11N8-57020 - HOSE-FUEL FILLER
- Поз.: 2
3 11NA-73000
- 11NA-73000 - FUEL FILTER & W/S ASSY
- Поз.: 3
4 11NA-71001
- 11NA-71001 - FUEL FILTER & W/S ASSY
- Поз.: 3
5 11NA-71010
- 11NA-71010 - HEAD-FILTER
- Поз.: 3-1
6 11NA-71020
- 11NA-71020 - HEATER-FUEL
- Поз.: 3-2
7 11NA-71030
- 11NA-71030 - CONNECTOR
- Поз.: 3-3
8 11NA-71041
- 11NA-71041 - ELEMENT ASSY
- Поз.: 3-4
9 11NA-71050
- 11NA-71050 - BOWL-CLEAR
- Поз.: 3-5
10 11NA-71060
- 11NA-71060 - O-RING
- Поз.: 3-6
11 11NA-71070
- 11NA-71070 - SENSOR
- Поз.: 3-7
12 11NA-71080
- 11NA-71080 - O-RING
- Поз.: 3-8
13 11NA-71090
- 11NA-71090 - VALVE-SCREW
- Поз.: 3-9
14 11NA-71100
- 11NA-71100 - O-RING
- Поз.: 3-10
15 11NA-71020
- 11NA-71020 - HEATER-FUEL
- Поз.: 3-22
16 11Q6-50100
- 11Q6-50100 - CONNECTOR
- Поз.: 3-23
17 11Q6-50110
- 11Q6-50110 - SPACER
- Поз.: 3-24
18 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 3-25
19 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 3
20 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 3
21 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 3-1
22 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 3-2
23 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 3-3
24 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 3-3
25 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 3-4
26 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 4
27 P210-101400
- P210-101400 - PLUG-HEX
- Поз.: 5
28 Y161-014001
- Y161-014001 - O-RING
- Поз.: 6
29 11M8-50030
- 11M8-50030 - HOSE ASSY
- Поз.: 7
30 11N8-50060
- 11N8-50060 - ELBOW-90
- Поз.: 8
31 11Q6-50030
- 11Q6-50030 - HOSE-FUEL
- Поз.: 9
32 11ND-40170
- 11ND-40170 - CONNECTOR
- Поз.: 10
33 P392-120000
- P392-120000 - WASHER-COPPER
- Поз.: 11
34 11Q7-53010
- 11Q7-53010 - HOSE-FUEL
- Поз.: 12
35 S520-017000
- S520-017000 - CLAMP-HOSE
- Поз.: 13
36 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 14
37 S631-018004
- S631-018004 - O-RING
- Поз.: 15
38 31L7-10220
- 31L7-10220 - CLAMP-TUBE
- INS SINGLE
- Поз.: 16
39 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 17
40 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 18
41 11Q7-53020
- 11Q7-53020 - HOSE-FUEL
- Поз.: 19
42 11QB-41041
- 11QB-41041 - COOLER-FUEL
- Поз.: 20
43 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 21
44 21QB-23500
- 21QB-23500 - HARNESS FUEL WARMER
- Поз.: 22
