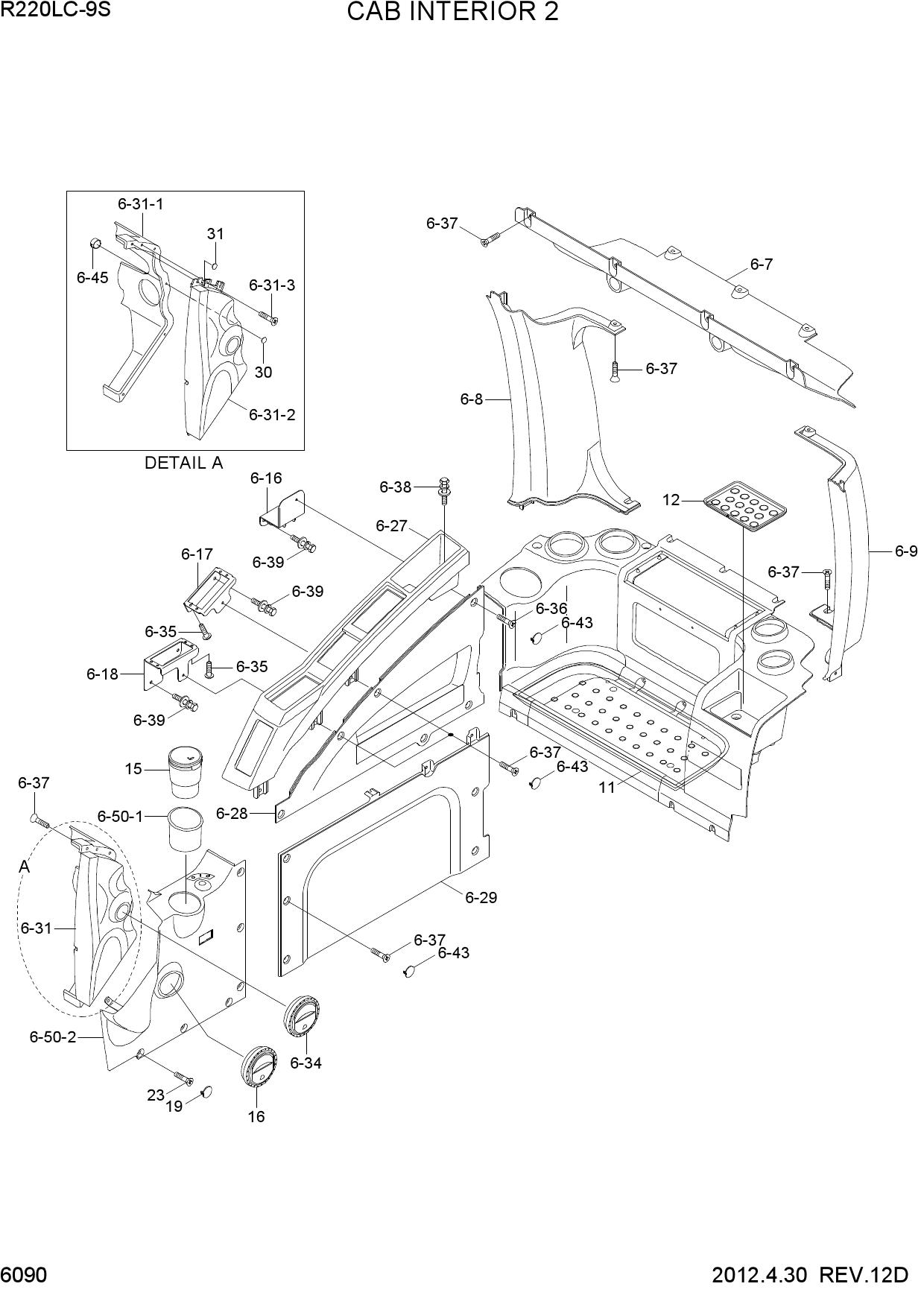

CAB INTERIOR 2

CAB INTERIOR 2

CAB INTERIOR 2

1 71Q6-22250GG

  • 71Q6-22250GG - COVER-SPEAKER
  • Поз.: 6-7

2 71Q6-22240GG

  • 71Q6-22240GG - TRIM-PILLAR
  • RH
  • Поз.: 6-8

3 71Q6-22230GG

  • 71Q6-22230GG - TRIM-PILLAR
  • LH
  • Поз.: 6-9

4 71Q6-21500

  • 71Q6-21500 - BRACKET-TRAY
  • Поз.: 6-16

5 71Q6-21502

  • 71Q6-21502 - BRACKET-TRAY
  • Поз.: 6-16

6 71Q6-21530

  • 71Q6-21530 - BRACKET-REMOTE
  • Поз.: 6-17

7 71Q6-21532

  • 71Q6-21532 - BRACKET-REMOTE
  • Поз.: 6-17

8 71Q6-21550

  • 71Q6-21550 - BRACKET-MEMBRANE
  • Поз.: 6-18

9 71Q6-21552

  • 71Q6-21552 - BRACKET-MEMBRANE
  • Поз.: 6-18

10 71Q6-22141

  • 71Q6-22141 - PANEL-SWITCH
  • Поз.: 6-27

11 71Q6-22800GG

  • 71Q6-22800GG - TRIM ASSY-UPPER
  • RH
  • Поз.: 6-28

12 71Q6-22660GG

  • 71Q6-22660GG - TRIM ASSY-LOWER
  • RH
  • Поз.: 6-29

13 71Q6-22581GG

  • 71Q6-22581GG - COVER-WIPER MOTOR
  • Поз.: 6-31

14 71Q6-22091

  • 71Q6-22091 - COVER(1)-WIPER MOTOR
  • Поз.: 6-31-1

15 71Q6-22101

  • 71Q6-22101 - COVER(2)-WIPER MOTOR
  • Поз.: 6-31-2

16 S002-06015B

  • S002-06015B - SCREW-TRUS HEAD
  • Поз.: 6-31-3

17 71Q6-22390

  • 71Q6-22390 - NOZZLE-AIR
  • FRONT
  • Поз.: 6-34

18 71Q6-23660

  • 71Q6-23660 - NOZZLE-AIR
  • FRONT
  • Поз.: 6-34

19 S002-05015B

  • S002-05015B - SCREW-TRUS HEAD
  • Поз.: 6-35

20 S002-06010B

  • S002-06010B - SCREW-TRUS HEAD
  • Поз.: 6-36

21 S002-06015B

  • S002-06015B - SCREW-TRUS HEAD
  • Поз.: 6-37

22 S035-061526

  • S035-061526 - BOLT-W/WASHER
  • Поз.: 6-38

23 S035-081526

  • S035-081526 - BOLT-W/WASHER
  • Поз.: 6-39

24 71Q6-22760GG

  • 71Q6-22760GG - CAP-TRIM
  • Поз.: 6-43

25 71Q6-23040

  • 71Q6-23040 - CAP-WIPER MOTOR(2)
  • Поз.: 6-45

26 71Q6-22980GG

  • 71Q6-22980GG - TRIM-RH
  • FRONT LOW
  • Поз.: 6-50

27 71Q6-22110GG

  • 71Q6-22110GG - HOLDER-CUP
  • Поз.: 6-50-1

28 71Q6-22080GG

  • 71Q6-22080GG - TRIM-RH
  • FRONT LOW
  • Поз.: 6-50-2

29 71Q6-22340

  • 71Q6-22340 - COVER MAT-AIRCON
  • Поз.: 11

30 71Q6-22350

  • 71Q6-22350 - COVER MAT-RADIO TRAY
  • Поз.: 12

31 71Q6-22410

  • 71Q6-22410 - ASH-TRAY
  • Поз.: 15

32 71Q6-22390

  • 71Q6-22390 - NOZZLE-AIR
  • FRONT
  • Поз.: 16

33 71Q6-23660

  • 71Q6-23660 - NOZZLE-AIR
  • FRONT
  • Поз.: 16

34 71Q6-22760GG

  • 71Q6-22760GG - CAP-TRIM
  • Поз.: 19

35 S002-06015B

  • S002-06015B - SCREW-TRUS HEAD
  • Поз.: 23

36 71Q6-22771

  • 71Q6-22771 - CAP-WIPER MOTOR
  • Поз.: 30

37 71Q6-23050

  • 71Q6-23050 - CAP-WIPER MOTOR
  • Поз.: 31
