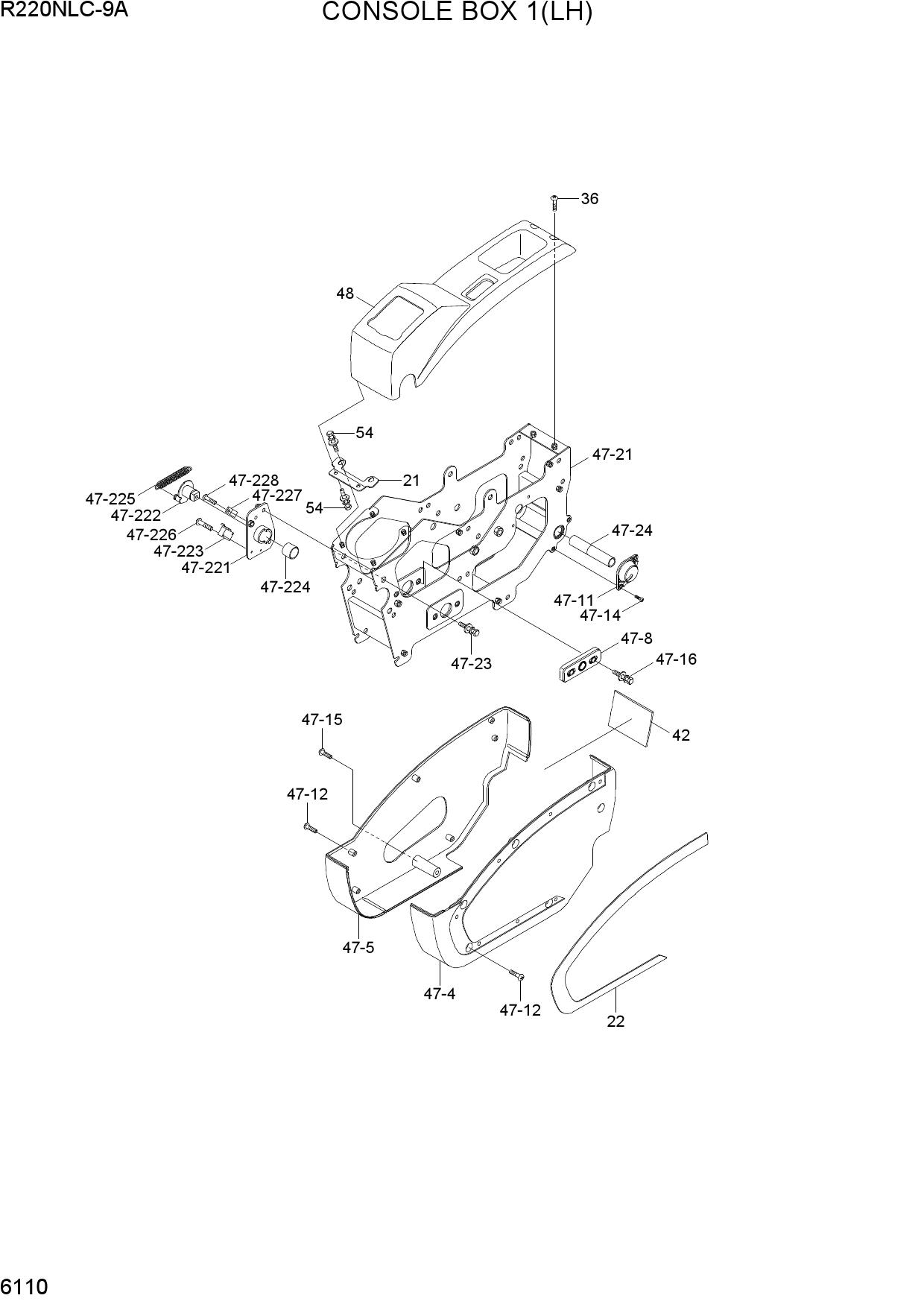

CONSOLE BOX 1(LH)
1 71Q6-21610
- 71Q6-21610 - BRACKET-CONSOLE UP
- Поз.: 21
2 71Q6-22031
- 71Q6-22031 - CONSOLE COVER-TRIM
- Поз.: 22
3 S002-06015B
- S002-06015B - SCREW-TRUS HEAD
- Поз.: 36
4 71Q8-22671
- 71Q8-22671 - PROTECTOR
- Поз.: 42
5 71Q8-22220
- 71Q8-22220 - FRAME ASSY-LH
- Поз.: 47-2
6 71Q8-23110
- 71Q8-23110 - CENTER FRAME WA
- Поз.: 47-21
7 71Q6-20920
- 71Q6-20920 - BRACKET ASSY-SAFETY
- Поз.: 47-22
8 71Q6-20930
- 71Q6-20930 - BRACKET-LOWER
- Поз.: 47-221
9 71Q6-20960
- 71Q6-20960 - BRACKET-UPPER
- Поз.: 47-222
10 21N8-20300
- 21N8-20300 - SWITCH-MICRO
- Поз.: 47-223
11 S731-020015
- S731-020015 - DU BUSHING
- Поз.: 47-224
12 71N6-21610
- 71N6-21610 - SPRING
- Поз.: 47-225
13 S161-030152
- S161-030152 - SCREW-CROSS R/ROUND
- Поз.: 47-226
14 71Q6-22840
- 71Q6-22840 - PLATE-STOPPER
- Поз.: 47-227
15 S131-051526
- S131-051526 - SCREW-W/WASHER
- Поз.: 47-228
16 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 47-23
17 S731-020020
- S731-020020 - BUSHING-DU
- Поз.: 47-24
18 71Q8-22011
- 71Q8-22011 - COVER-CONSOLE
- LH
- Поз.: 47-4
19 71Q8-23591
- 71Q8-23591 - COVER-CONSOLE
- RH
- Поз.: 47-5
20 71Q8-22210
- 71Q8-22210 - HOUSING
- Поз.: 47-8
21 71Q8-23600
- 71Q8-23600 - CAP-CONSOLE
- Поз.: 47-11
22 S002-06010B
- S002-06010B - SCREW-TRUS HEAD
- Поз.: 47-12
23 S002-05015B
- S002-05015B - SCREW-TRUS HEAD
- Поз.: 47-14
24 S151-040156
- S151-040156 - SCREW-TAPPING
- Поз.: 47-15
25 S035-081556
- S035-081556 - BOLT-W/WASHER
- Поз.: 47-16
26 71Q6-22060GG
- 71Q6-22060GG - CONSOLE COVER UP-LH
- Поз.: 48
27 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 54
