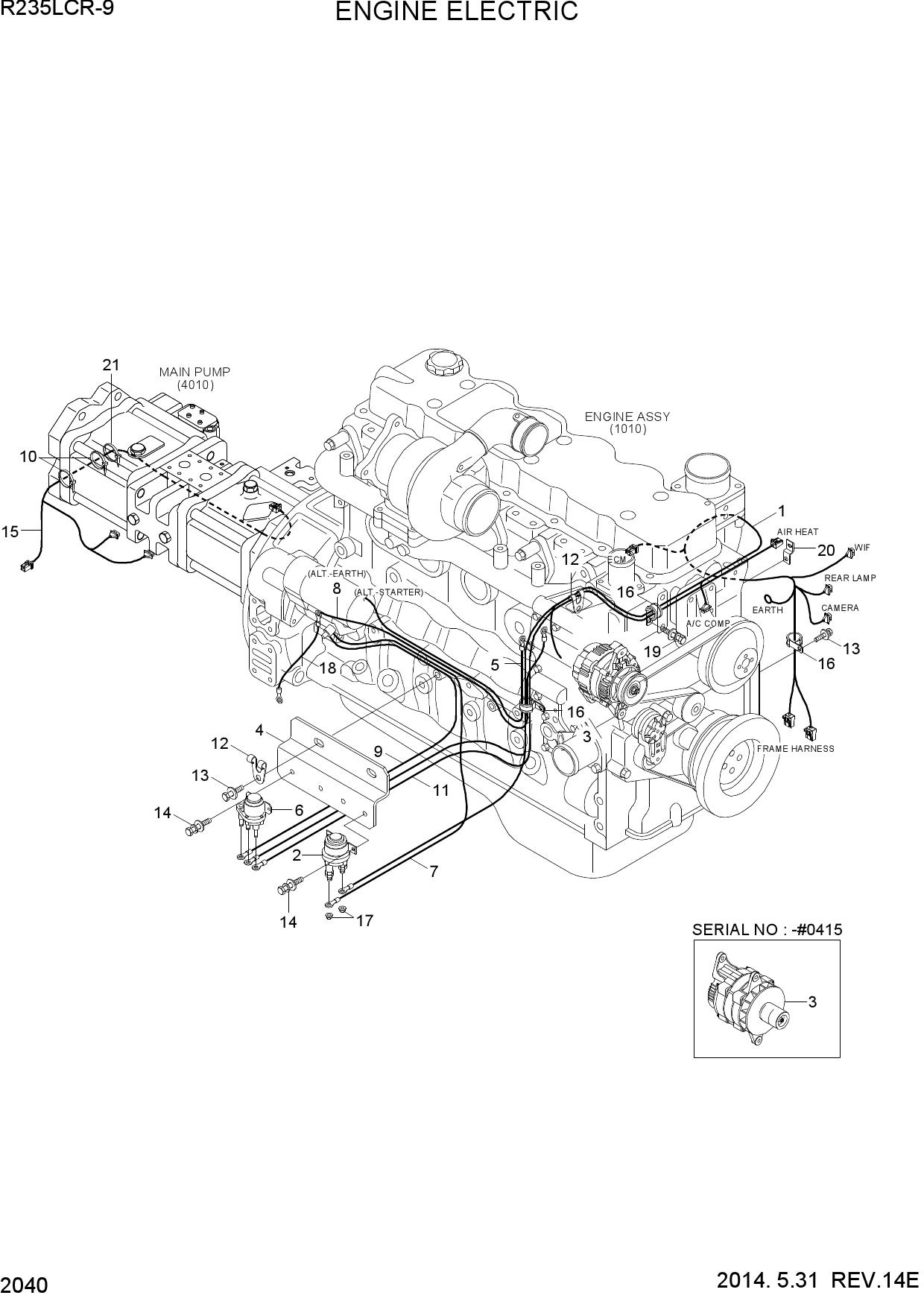

ENGINE ELECTRIC
1 21Q6-40602
- 21Q6-40602 - HARNESS-ENGINE
- Поз.: 1
2 21Q6-40603
- 21Q6-40603 - HARNESS-ENGINE
- Поз.: 1
3 21LH-30130
- 21LH-30130 - RESISTER
- Поз.: 1-1
4 21N6-30120
- 21N6-30120 - RELAY-START
- Поз.: 2
5 21Q6-41000
- 21Q6-41000 - ALTERNATOR ASSY
- Поз.: 3
6 21Q6-42001
- 21Q6-42001 - ALTERNATOR ASSY
- Поз.: 3
7 21N8-43000
- 21N8-43000 - HARNESS-ALTERNATOR
- Поз.: 3-1
8 21Q6-40140
- 21Q6-40140 - BRACKET-START & HEATER
- Поз.: 4
9 21N8-10201
- 21N8-10201 - CABLE(ALT-STARTER)
- Поз.: 5
10 21N8-42050
- 21N8-42050 - RELAY-HEATER
- Поз.: 6
11 21N8-40071
- 21N8-40071 - HARNESS-RELAY
- Поз.: 7
12 21N8-40080
- 21N8-40080 - CABLE(ALT-EARTH)
- Поз.: 8
13 21N4-01571
- 21N4-01571 - CABLE(ALT-STARTER)
- Поз.: 9
14 S553-035140
- S553-035140 - CLAMP-BAND
- Поз.: 10
15 21LF-20141
- 21LF-20141 - CABLE(HEAT RY-AIR HEAT)
- Поз.: 11
16 21E9-00170
- 21E9-00170 - CLIP-HARNESS
- Поз.: 12
17 S037-122056
- S037-122056 - BOLT-W/WASHER
- Поз.: 13
18 S035-062026
- S035-062026 - BOLT-W/WASHER
- Поз.: 14
19 21Q6-11400
- 21Q6-11400 - HARNESS-PUMP PS
- Поз.: 15
20 31L7-10200
- 31L7-10200 - CLAMP-TUBE
- Поз.: 16
21 S285-061002
- S285-061002 - NUT-FLANGED
- Поз.: 17
22 21NA-10500
- 21NA-10500 - CABLE(MASTER SW-EARTH)
- Поз.: 18
23 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 19
24 21N4-01130
- 21N4-01130 - PLATE-CLIP
- Поз.: 20
25 S552-050203
- S552-050203 - CLAMP-BAND
- Поз.: 21
