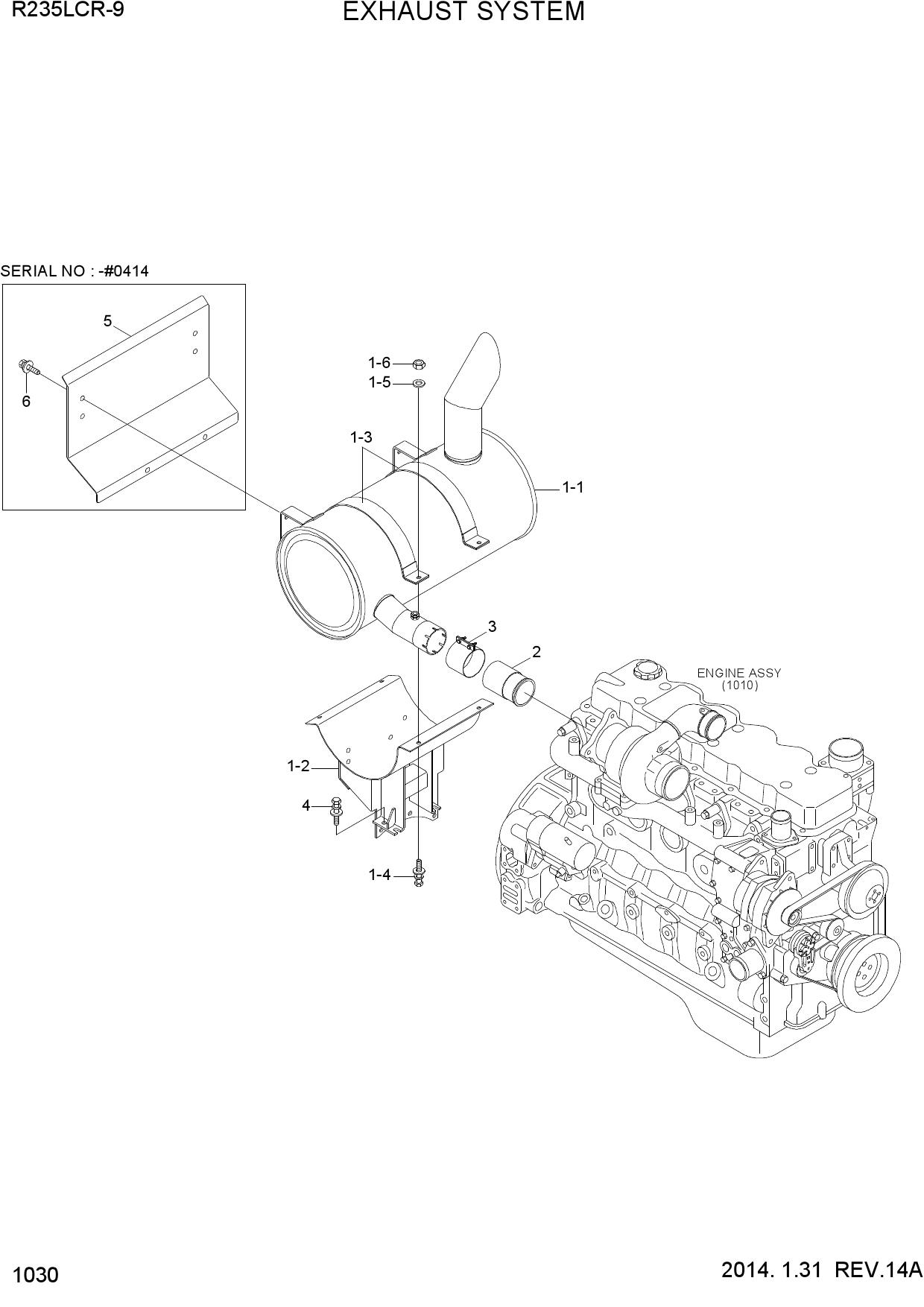

EXHAUST SYSTEM
1 11Q6-35111
- 11Q6-35111 - MUFFLER SUB ASSY
- Поз.: 1
2 11Q6-35112
- 11Q6-35112 - MUFFLER SUB ASSY
- Поз.: 1
3 11Q6-35121
- 11Q6-35121 - MUFFLER
- Поз.: 1-1
4 11Q6-35122
- 11Q6-35122 - MUFFLER
- Поз.: 1-1
5 11Q6-35130
- 11Q6-35130 - BRACKET-MUFFLER
- Поз.: 1-2
6 11Q6-35131
- 11Q6-35131 - BRACKET-MUFFLER
- Поз.: 1-2
7 11N8-30161
- 11N8-30161 - CLAMP-BAND
- Поз.: 1-3
8 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 1-4
9 S441-10000B
- S441-10000B - WASHER-HARDENED
- Поз.: 1-5
10 S205-10100B
- S205-10100B - NUT-HEX
- Поз.: 1-6
11 11N8-33130
- 11N8-33130 - CONNETOR-EXHAUST
- Поз.: 2
12 11N6-30040
- 11N6-30040 - CLAMP-SEAL
- Поз.: 3
13 11LM-50090
- 11LM-50090 - CLAMP ASSY-SEAL
- Поз.: 3
14 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 4
15 11Q6-35142
- 11Q6-35142 - SCREEN
- Поз.: 5
16 S037-102056
- S037-102056 - BOLT-W/WASHER
- Поз.: 6
