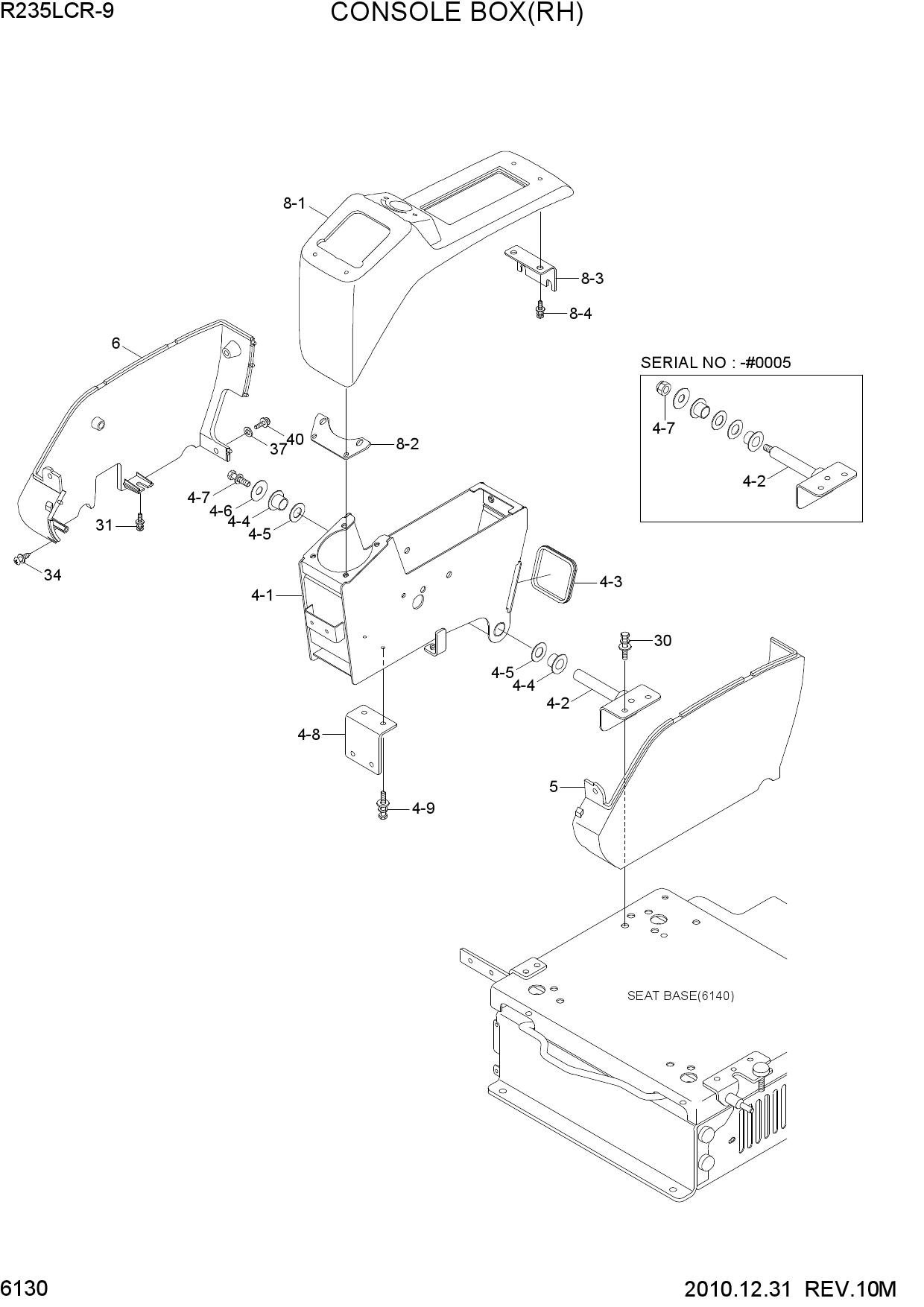

CONSOLE BOX(RH)
1 75Q4-20190
- 75Q4-20190 - CONSOLE FRAME ASSY-RH
- Поз.: 4
2 75Q4-23690
- 75Q4-23690 - CONSOLE FRAME ASSY-RH
- Поз.: 4
3 75Q4-20200
- 75Q4-20200 - CONSOLE FRAME WA-RH
- Поз.: 4-1
4 71M9-22161
- 71M9-22161 - BRACKET WA-CONSOL
- RR
- Поз.: 4-2
5 72M9-23740
- 72M9-23740 - BRACKET WA-CONSOL
- RR
- Поз.: 4-2
6 71Q6-21420
- 71Q6-21420 - GROMMET
- Поз.: 4-3
7 S731-020020
- S731-020020 - BUSHING-DU
- Поз.: 4-4
8 71Q6-22630
- 71Q6-22630 - SHIM-CONSOLE
- Поз.: 4-5
9 71M9-22210
- 71M9-22210 - SHIM-ROUND
- Поз.: 4-6
10 71Q6-23700
- 71Q6-23700 - SHIM(2.0T)-ROUND
- Поз.: 4-6
11 S275-12000B
- S275-12000B - NUT-SELF LOCKING
- Поз.: 4-7
12 S037-102016
- S037-102016 - BOLT-W/WASHER
- Поз.: 4-7
13 75Q4-20390
- 75Q4-20390 - BRACKET-UNDER
- Поз.: 4-8
14 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 4-9
15 71M9-21011
- 71M9-21011 - CONSOLE LOW-LH
- Поз.: 5
16 71M9-21021
- 71M9-21021 - CONSOLE LOW-RH
- Поз.: 6
17 75Q4-21070
- 75Q4-21070 - CONSOLE UP ASSY-RH
- Поз.: 8
18 75Q4-20060
- 75Q4-20060 - CONSOLE BOX UP-RH
- Поз.: 8-1
19 75Q4-22470
- 75Q4-22470 - BRACKET
- Поз.: 8-2
20 75Q4-21160
- 75Q4-21160 - BRACKET
- Поз.: 8-3
21 S002-06010B
- S002-06010B - SCREW-TRUS HEAD
- Поз.: 8-4
22 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 30
23 S002-06015B
- S002-06015B - SCREW-TRUS HEAD
- Поз.: 31
24 S151-040156
- S151-040156 - SCREW-TAPPING
- Поз.: 34
25 S403-06500B
- S403-06500B - WASHER-PLAIN
- Поз.: 37
26 S002-06010B
- S002-06010B - SCREW-TRUS HEAD
- Поз.: 40
