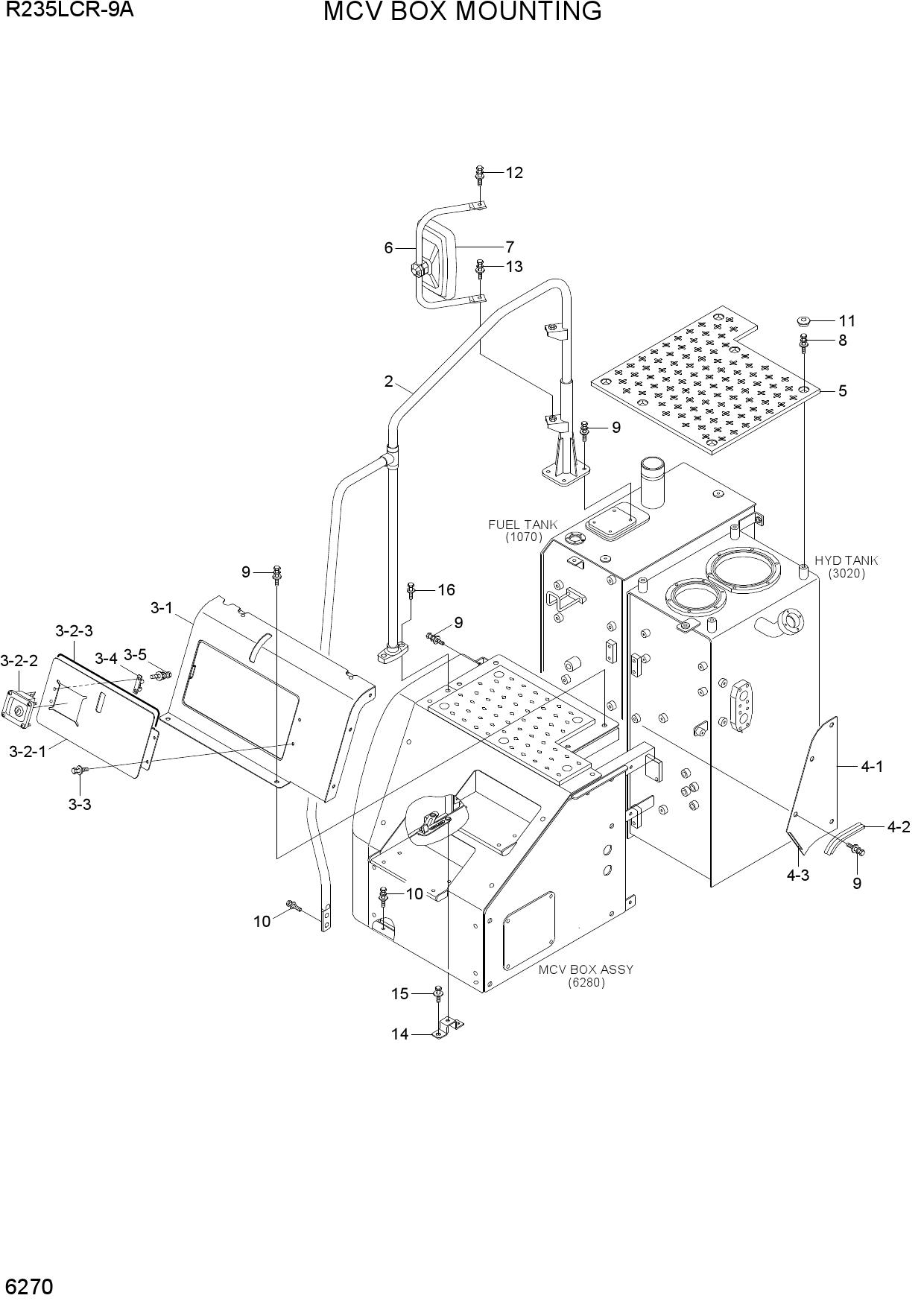

MCV BOX MOUNTING
1 74Q6-45100
- 74Q6-45100 - HANDRAIL WA
- Поз.: 2
2 74Q6-46103
- 74Q6-46103 - COVER-FUEL TANK
- Поз.: 3
3 74Q6-46112
- 74Q6-46112 - COVER BODY WA
- Поз.: 3-1
4 74Q6-46213
- 74Q6-46213 - COVER ASSY
- Поз.: 3-2
5 74Q6-46222
- 74Q6-46222 - COVER WA
- Поз.: 3-2-1
6 76N4-42200GG
- 76N4-42200GG - CATCH ASSY
- Поз.: 3-2-2
7 74Q6-46240
- 74Q6-46240 - PAD-RUBBER
- Поз.: 3-2-3
8 S035-082056
- S035-082056 - BOLT-W/WASHER
- Поз.: 3-3
9 73Q4-44310
- 73Q4-44310 - PLATE-LOCK
- Поз.: 3-4
10 71Q6-50020
- 71Q6-50020 - BOLT-W/WASHER
- Поз.: 3-5
11 74Q6-43203
- 74Q6-43203 - COVER ASSY-LH
- Поз.: 4
12 74Q6-43213
- 74Q6-43213 - COVER-LH
- Поз.: 4-1
13 S772-002500
- S772-002500 - WEATHER STRIP
- Поз.: 4-2
14 74Q6-43230
- 74Q6-43230 - PLATE
- Поз.: 4-3
15 74Q6-46400
- 74Q6-46400 - NON-SLIP PLATE
- Поз.: 5
16 71Q6-48200
- 71Q6-48200 - STAY WA-RH
- Поз.: 6
17 71N8-47101
- 71N8-47101 - MIRROR
- Поз.: 7
18 71Q6-50020
- 71Q6-50020 - BOLT-W/WASHER
- Поз.: 8
19 71Q6-50025
- 71Q6-50025 - BOLT-W/WASHER
- Поз.: 9
20 71Q6-50040
- 71Q6-50040 - BOLT-W/WASHER
- Поз.: 10
21 71Q6-41700
- 71Q6-41700 - CAP
- Поз.: 11
22 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 12
23 S037-104026
- S037-104026 - BOLT-W/WASHER
- Поз.: 13
24 74Q6-46501
- 74Q6-46501 - BRACKET WA
- Поз.: 14
25 S037-101556
- S037-101556 - BOLT-W/WASHER
- Поз.: 15
26 S037-101556
- S037-101556 - BOLT-W/WASHER
- Поз.: 16
