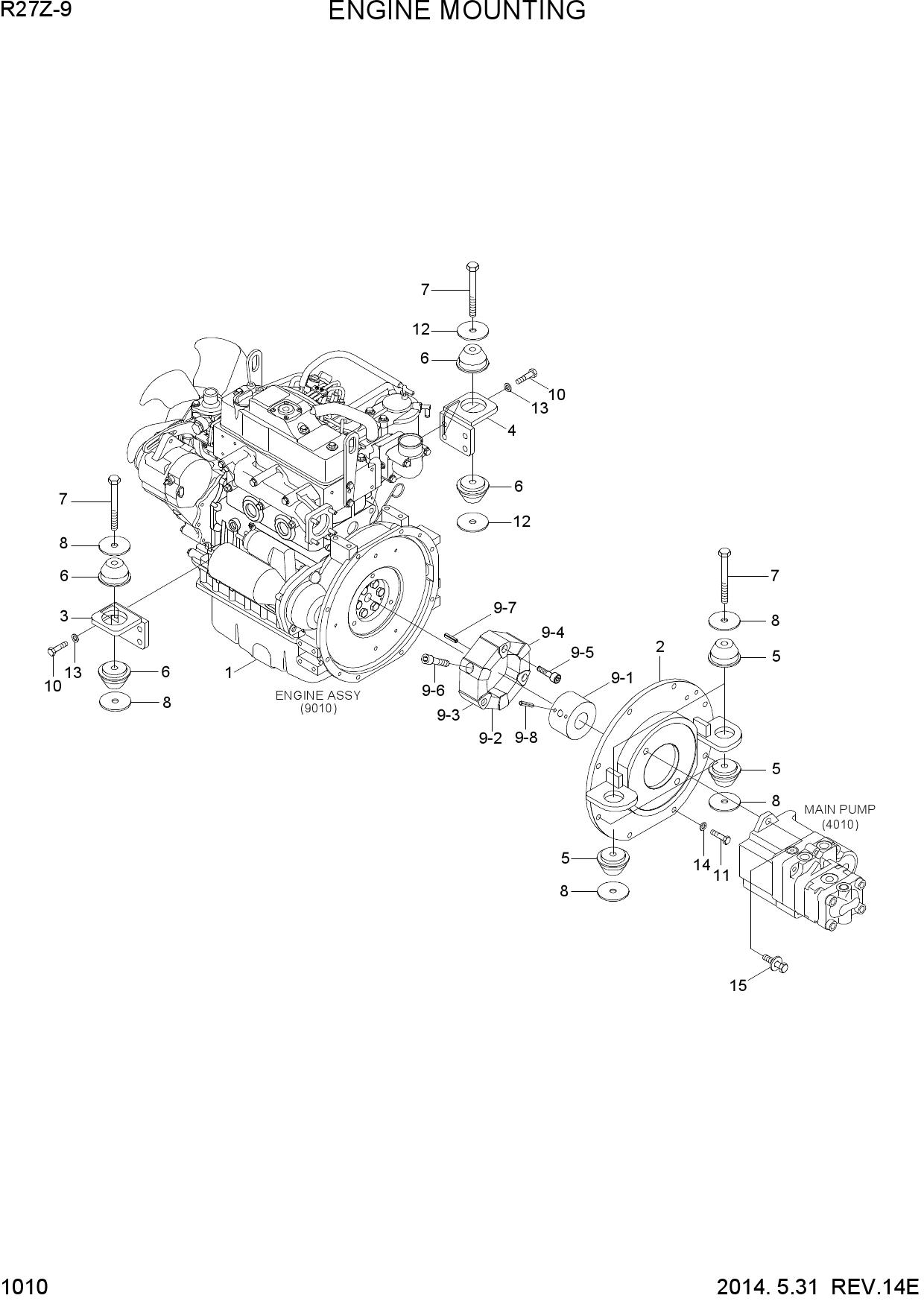

ENGINE MOUNTING
1 11MK-00011
- 11MK-00011 - ENGINE ASSY
- Поз.: 1
2 11MK-00012
- 11MK-00012 - ENGINE ASSY
- Поз.: 1
3 11MK-00013
- 11MK-00013 - ENGINE ASSY
- Поз.: 1
4 11MK-00220
- 11MK-00220 - HOUSING
- Поз.: 2
5 11MK-00221
- 11MK-00221 - HOUSING
- Поз.: 2
6 11MK-00021
- 11MK-00021 - BRACKET
- Поз.: 3
7 11MK-00022
- 11MK-00022 - BRACKET
- Поз.: 3
8 11MK-00060
- 11MK-00060 - BRACKET
- Поз.: 4
9 11MK-00061
- 11MK-00061 - BRACKET
- Поз.: 4
10 11MH-07150
- 11MH-07150 - MOUNT-RUBBER
- Поз.: 5
11 11MH-07140
- 11MH-07140 - MOUNT-RUBBER
- Поз.: 6
12 S017-121106
- S017-121106 - BOLT-HEX
- Поз.: 7
13 11MH-00230
- 11MH-00230 - WASHER-PLATE
- Поз.: 8
14 11MF-10020
- 11MF-10020 - COUPLING ASSY
- Поз.: 9
15 11MF-12010
- 11MF-12010 - HUB-SPLINE
- Поз.: 9-1
16 11MF-12020
- 11MF-12020 - RUBBER ASSY
- Поз.: 9-2
17 S109-120356
- S109-120356 - BOLT-SOCKET
- Поз.: 9-5
18 S109-120356
- S109-120356 - BOLT-SOCKET
- Поз.: 9-6
19 S472-500254
- S472-500254 - PIN-SPRING
- Поз.: 9-7
20 S472-500104
- S472-500104 - PIN-SPRING
- Поз.: 9-8
21 S018-120306
- S018-120306 - BOLT-HEX
- Поз.: 10
22 S018-100306
- S018-100306 - BOLT-HEX
- Поз.: 11
23 11MH-00280
- 11MH-00280 - WASHER-OVERLOAD
- Поз.: 12
24 S441-120006
- S441-120006 - WASHER-HARDENED
- Поз.: 13
25 S441-100006
- S441-100006 - WASHER-HARDENED
- Поз.: 14
26 S037-123526
- S037-123526 - BOLT-W/WASHER
- Поз.: 15
