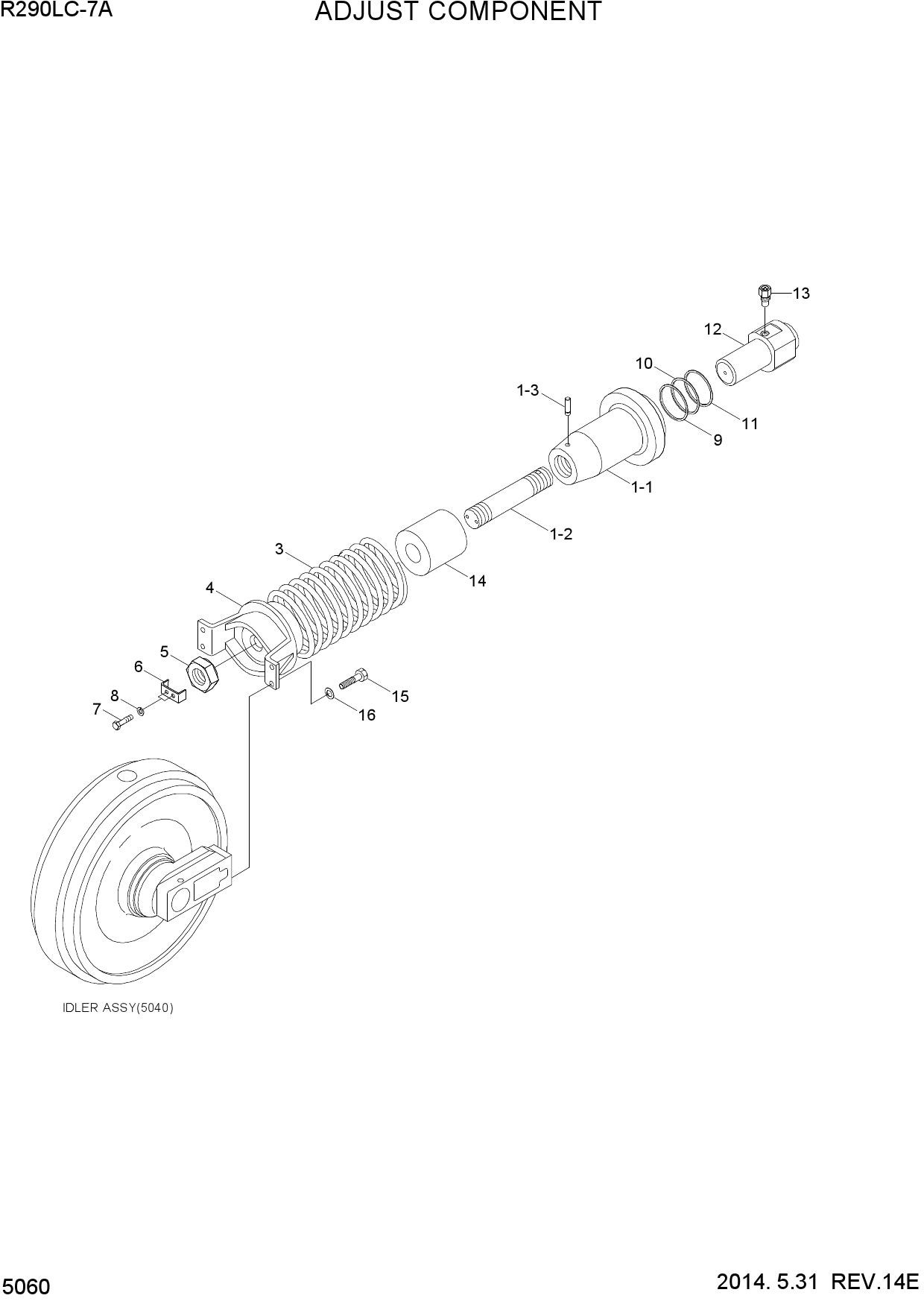

ADJUST COMPONENT
1 81N8-14300
- 81N8-14300 - BODY ASSY
- Поз.: 1
2 81N8-14301
- 81N8-14301 - BODY ASSY
- Поз.: 1
3 81N8-14302
- 81N8-14302 - BODY ASSY
- Поз.: 1
4 81N8-14303
- 81N8-14303 - BODY ASSY
- Поз.: 1
5 81N8-14100
- 81N8-14100 - BODY
- Поз.: 1-1
6 81N8-14101
- 81N8-14101 - BODY
- Поз.: 1-1
7 81N8-14102
- 81N8-14102 - BODY
- Поз.: 1-1
8 81N8-14103
- 81N8-14103 - BODY
- Поз.: 1-1
9 81N8-14110
- 81N8-14110 - BAR-TIE
- Поз.: 1-2
10 81N8-14111
- 81N8-14111 - BAR-TIE
- Поз.: 1-2
11 81N8-14112
- 81N8-14112 - BAR-TIE
- Поз.: 1-2
12 81N8-14290
- 81N8-14290 - PIN-SPRING
- Поз.: 1-3
13 81N8-14120
- 81N8-14120 - SPRING
- Поз.: 3
14 81N8-14121
- 81N8-14121 - SPRING
- Поз.: 3
15 81N8-14122
- 81N8-14122 - SPRING
- Поз.: 3
16 81N8-14130
- 81N8-14130 - BRACKET
- Поз.: 4
17 81N8-14131
- 81N8-14131 - BRACKET-T/CYL
- Поз.: 4
18 81N8-14132
- 81N8-14132 - BRACKET
- Поз.: 4
19 81N8-14131
- 81N8-14131 - BRACKET-T/CYL
- Поз.: 4
20 81N8-14132
- 81N8-14132 - BRACKET
- Поз.: 4
21 81E9-2015
- 81E9-2015 - NUT-LOCK
- Поз.: 5
22 81E9-20151
- 81E9-20151 - NUT-LOCK
- Поз.: 5
23 81E9-20152
- 81E9-20152 - NUT-LOCK
- Поз.: 5
24 81E9-20153
- 81E9-20153 - NUT LOCK
- Поз.: 5
25 81E9-20160
- 81E9-20160 - PLATE-LOCK
- Поз.: 6
26 81E9-20161
- 81E9-20161 - PLATE-LOCK
- Поз.: 6
27 81E9-20160
- 81E9-20160 - PLATE-LOCK
- Поз.: 6
28 81E9-20161
- 81E9-20161 - PLATE-LOCK
- Поз.: 6
29 S018-120306
- S018-120306 - BOLT-HEX
- Поз.: 7
30 S411-120006
- S411-120006 - WASHER-SPRING
- Поз.: 8
31 81E1-3104
- 81E1-3104 - PACKING-ROD
- Поз.: 9
32 81E1-3204
- 81E1-3204 - RING-BACK UP
- Поз.: 10
33 81E1-3304
- 81E1-3304 - SEAL-DUST
- Поз.: 11
34 81N8-14211
- 81N8-14211 - ROD
- Поз.: 12
35 E181-2013
- E181-2013 - VALVE-GREASE
- Поз.: 13
36 81N6-14240
- 81N6-14240 - VALVE-GREASE
- Поз.: 13
37 81Q6-14240
- 81Q6-14240 - VALVE-GREASE
- Поз.: 13
38 81N8-14270
- 81N8-14270 - TUBE
- Поз.: 14
39 81N8-14271
- 81N8-14271 - TUBE
- Поз.: 14
40 81N8-14272
- 81N8-14272 - TUBE
- Поз.: 14
41 S018-16050D
- S018-16050D - BOLT-HEX
- Поз.: 15
42 S411-160006
- S411-160006 - WASHER-SPRING
- Поз.: 16
