R290LC-9
/
Гидравлическая система
/

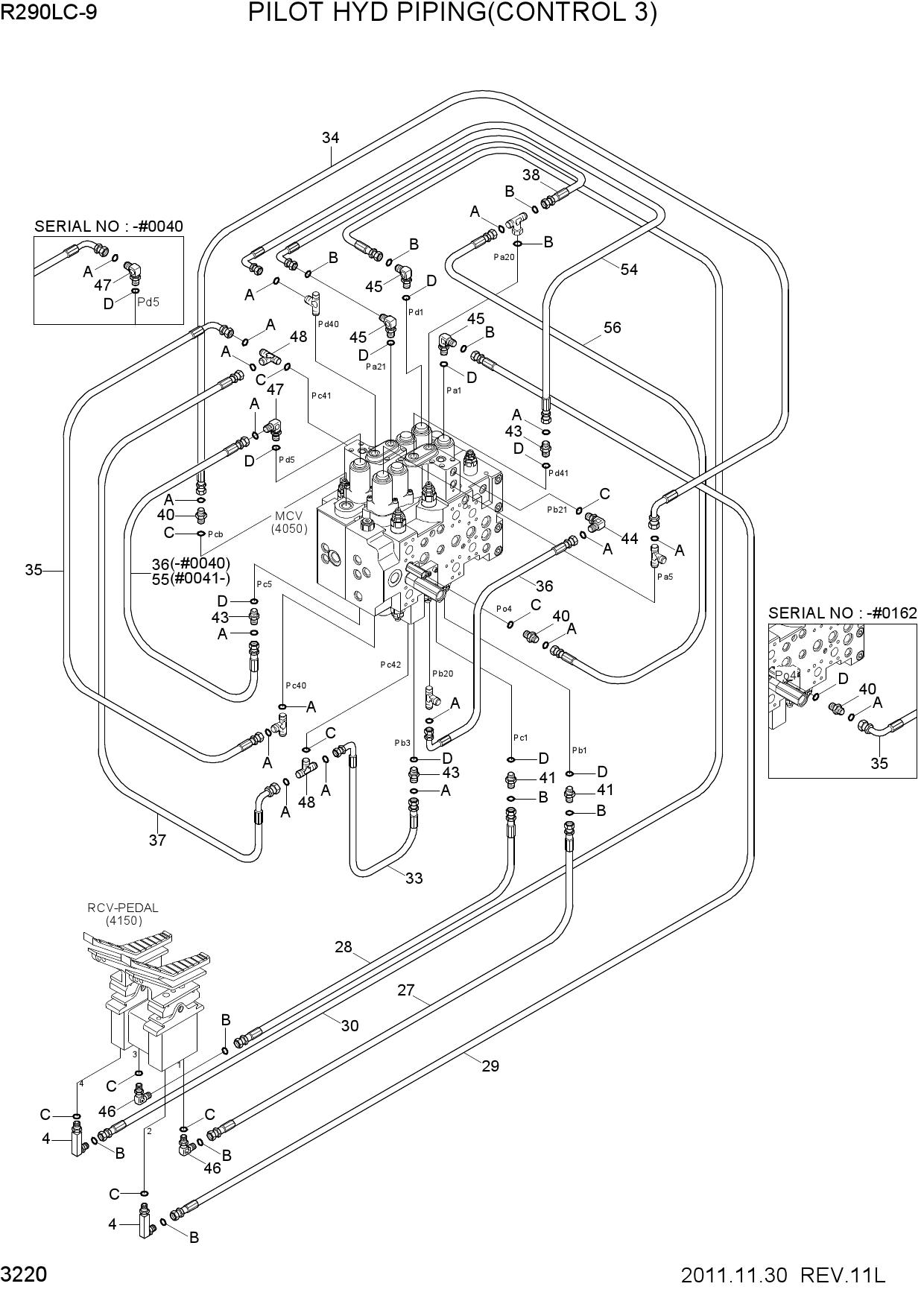

PILOT HYD PIPING(CONTROL 3)

PILOT HYD PIPING(CONTROL 3)

PILOT HYD PIPING(CONTROL 3)

1 31N7-22100

  • 31N7-22100 - ELBOW-90
  • ORFS
  • LONG
  • Поз.: 4

2 X400-062063

  • X400-062063 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 27

3 X400-062064

  • X400-062064 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 27

4 X400-062096

  • X400-062096 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 27

5 X400-062065

  • X400-062065 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 28

6 X400-062066

  • X400-062066 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 28

7 X400-062098

  • X400-062098 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 28

8 X400-062071

  • X400-062071 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 29

9 X400-062072

  • X400-062072 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 29

10 X400-062104

  • X400-062104 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 29

11 X400-062073

  • X400-062073 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 30

12 X400-062074

  • X400-062074 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 30

13 X400-062106

  • X400-062106 - HOSE ASSY-SYNF
  • ORFS
  • Поз.: 30

14 X420-042007

  • X420-042007 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 33

15 X420-042007

  • X420-042007 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 33

16 X420-042014

  • X420-042014 - HOSE ASSY-SYNF
  • ORFS 0X90
  • Поз.: 34

17 X420-042015

  • X420-042015 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 35

18 X420-042015

  • X420-042015 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 35

19 X420-042016

  • X420-042016 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 36

20 X420-042016

  • X420-042016 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 36

21 X420-042019

  • X420-042019 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 37

22 X420-042019

  • X420-042019 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 38

23 X420-062010

  • X420-062010 - HOSE ASSY-ORFS 0X90
  • Поз.: 38

24 X500-110001

  • X500-110001 - CONNECTOR-ORFS
  • Поз.: 40

25 X500-110002

  • X500-110002 - CONNECTOR-ORFS
  • Поз.: 41

26 X500-110013

  • X500-110013 - CONNECTOR-ORFS
  • Поз.: 43

27 X520-110001

  • X520-110001 - ELBOW-90
  • ORFS
  • Поз.: 44

28 X520-110002

  • X520-110002 - ELBOW-90
  • ORFS
  • Поз.: 45

29 X520-110011

  • X520-110011 - ELBOW-90
  • ORFS
  • Поз.: 46

30 X520-110012

  • X520-110012 - ELBOW-90
  • ORFS
  • Поз.: 47

31 X820-045151

  • X820-045151 - TEE-R/TYPE
  • ORFS
  • Поз.: 48

32 X420-042010

  • X420-042010 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 54

33 X400-042021

  • X400-042021 - HOSE ASSY-SYNFLEX
  • ORFS
  • Поз.: 55

34 X400-042026

  • X400-042026 - HOSE ASSY-ORFS 0X0
  • Поз.: 56
