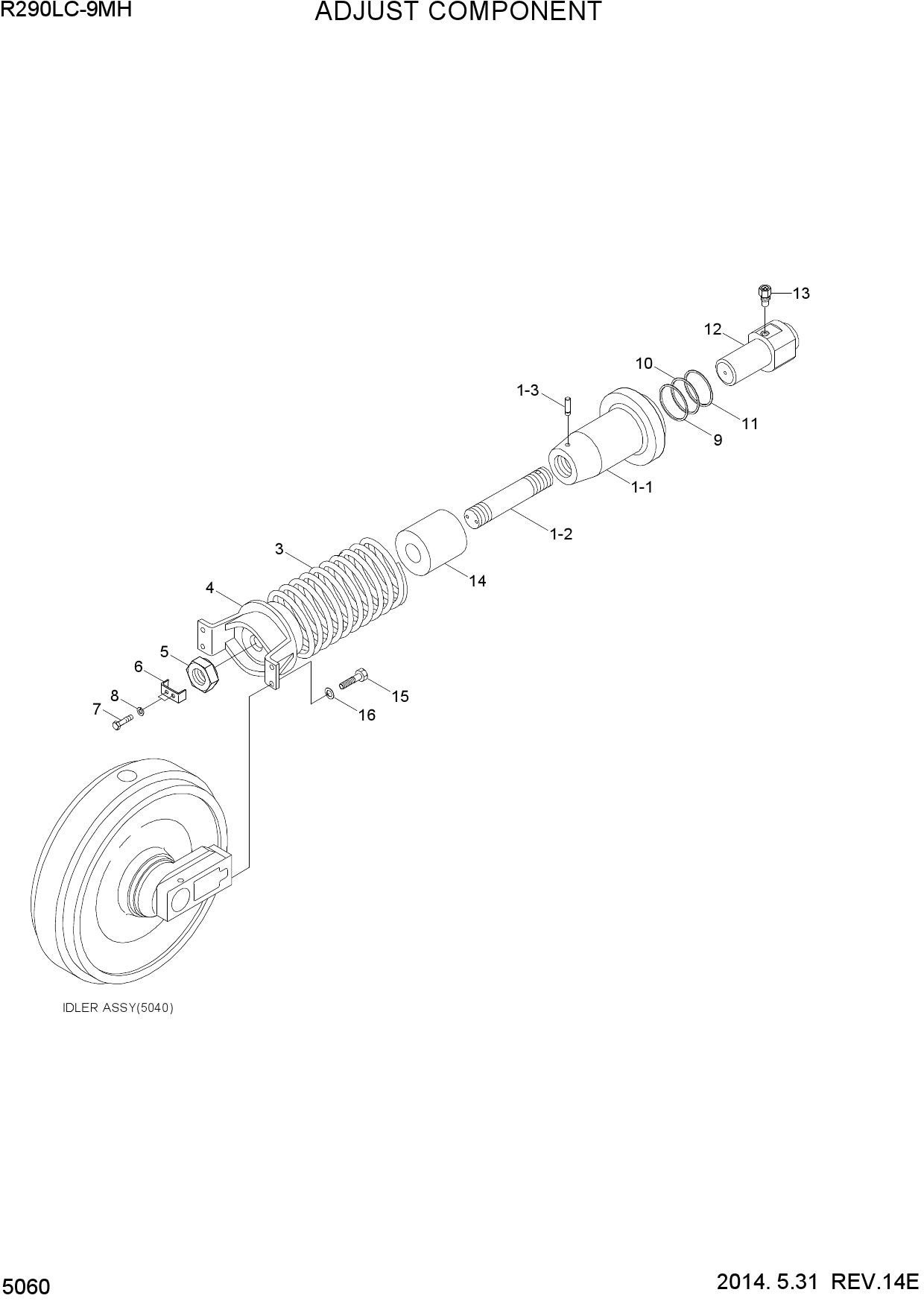

ADJUST COMPONENT
1 81N8-14303
- 81N8-14303 - BODY ASSY
- Поз.: 1
2 81N8-14103
- 81N8-14103 - BODY
- Поз.: 1-1
3 81N8-14112
- 81N8-14112 - BAR-TIE
- Поз.: 1-2
4 81N8-14290
- 81N8-14290 - PIN-SPRING
- Поз.: 1-3
5 81N8-14121
- 81N8-14121 - SPRING
- Поз.: 3
6 81N8-14122
- 81N8-14122 - SPRING
- Поз.: 3
7 81N8-14132
- 81N8-14132 - BRACKET
- Поз.: 4
8 81N8-14131
- 81N8-14131 - BRACKET-T/CYL
- Поз.: 4
9 81N8-14132
- 81N8-14132 - BRACKET
- Поз.: 4
10 81E9-20153
- 81E9-20153 - NUT LOCK
- Поз.: 5
11 81E9-20161
- 81E9-20161 - PLATE-LOCK
- Поз.: 6
12 81E9-20160
- 81E9-20160 - PLATE-LOCK
- Поз.: 6
13 81E9-20161
- 81E9-20161 - PLATE-LOCK
- Поз.: 6
14 S018-120306
- S018-120306 - BOLT-HEX
- Поз.: 7
15 S411-120006
- S411-120006 - WASHER-SPRING
- Поз.: 8
16 81E1-3104
- 81E1-3104 - PACKING-ROD
- Поз.: 9
17 81E1-3204
- 81E1-3204 - RING-BACK UP
- Поз.: 10
18 81E1-3304
- 81E1-3304 - SEAL-DUST
- Поз.: 11
19 81N8-14211
- 81N8-14211 - ROD
- Поз.: 12
20 81N6-14240
- 81N6-14240 - VALVE-GREASE
- Поз.: 13
21 81Q6-14240
- 81Q6-14240 - VALVE-GREASE
- Поз.: 13
22 81N8-14271
- 81N8-14271 - TUBE
- Поз.: 14
23 81N8-14272
- 81N8-14272 - TUBE
- Поз.: 14
24 S018-16050D
- S018-16050D - BOLT-HEX
- Поз.: 15
25 S411-160006
- S411-160006 - WASHER-SPRING
- Поз.: 16
