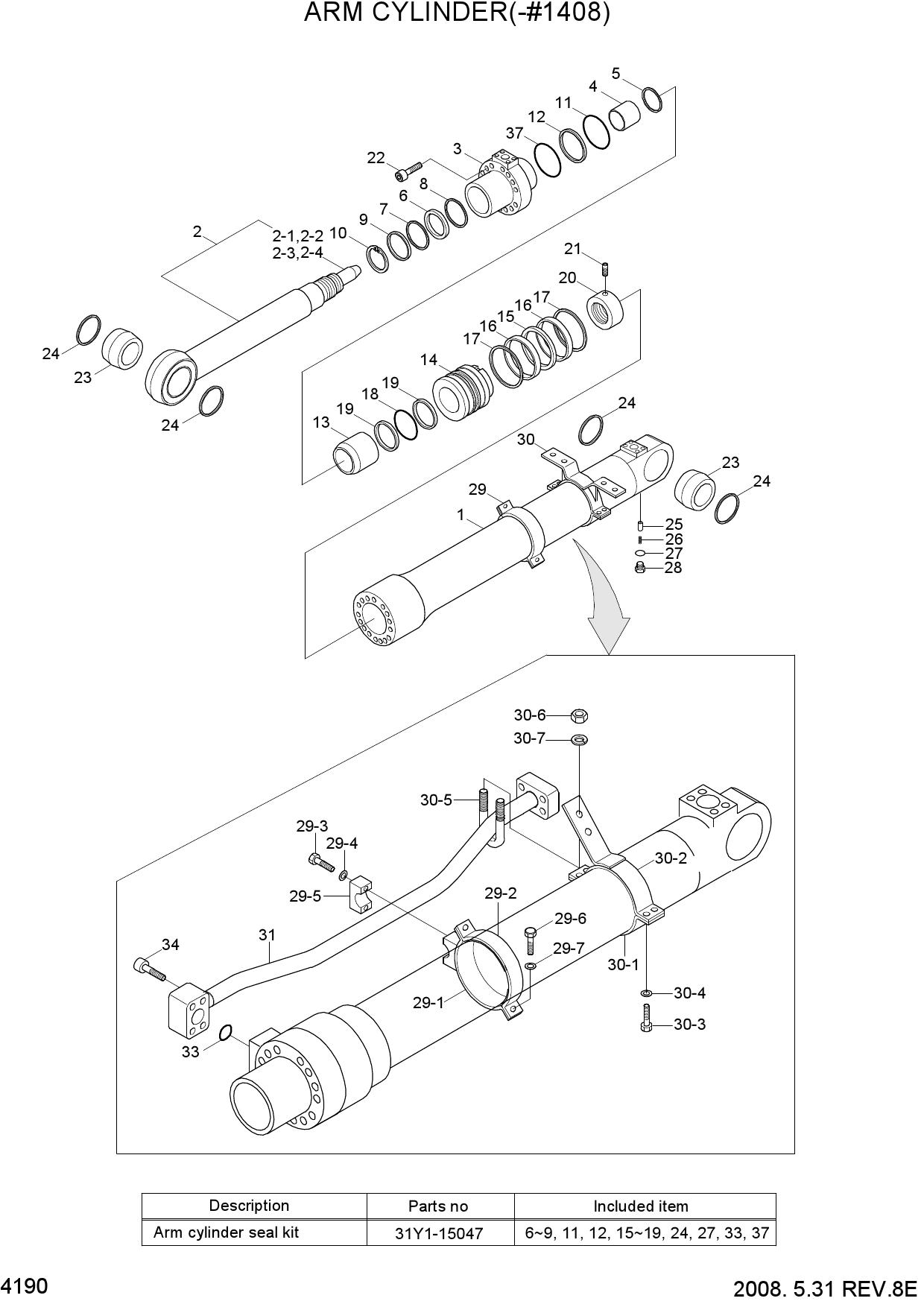

ARM CYLINDER(-#1408)
1 31Y1-14916
- 31Y1-14916 - TUBE ASSY
- Поз.: 1
2 31Y1-14966
- 31Y1-14966 - ROD ASSY
- Поз.: 2
3 S732-110045
- S732-110045 - BUSHING
- Поз.: 4
4 Y191-117000
- Y191-117000 - RING-SNAP
- Поз.: 5
5 Y190-126000
- Y190-126000 - RING-SNAP
- Поз.: 10
6 31YC-26100
- 31YC-26100 - RING-CUSHION
- Поз.: 13
7 31Y1-15006
- 31Y1-15006 - PISTON
- Поз.: 14
8 31YC-68060
- 31YC-68060 - NUT-LOCK
- Поз.: 20
9 S114-100164
- S114-100164 - SCREW-SET
- Поз.: 21
10 S109-200904
- S109-200904 - BOLT-SOCKET
- Поз.: 22
11 31YC-11161
- 31YC-11161 - BUSHING-PIN
- Поз.: 23
12 31YC-2A070
- 31YC-2A070 - VALVE-CHECK
- Поз.: 25
13 31YC-99071
- 31YC-99071 - SPRING-COIL
- Поз.: 26
14 P220-110103
- P220-110103 - PLUG-HEX
- Поз.: 28
15 31Y1-15015
- 31Y1-15015 - BAND ASSY-R
- Поз.: 29
16 31Y1-15050
- 31Y1-15050 - BAND SUB ASSY
- Поз.: 29-1
17 31YC-31420
- 31YC-31420 - BAND
- Поз.: 29-2
18 S015-120452
- S015-120452 - BOLT-HEX
- Поз.: 29-3
19 S411-120002
- S411-120002 - WASHER-SPRING
- Поз.: 29-4
20 31YC-37040
- 31YC-37040 - CLAMP-PIPE
- Поз.: 29-5
21 S015-120402
- S015-120402 - BOLT-HEX
- Поз.: 29-6
22 S411-120002
- S411-120002 - WASHER-SPRING
- Поз.: 29-7
23 31Y1-21926
- 31Y1-21926 - BAND ASSY-B
- Поз.: 30
24 31Y1-21935
- 31Y1-21935 - BAND SUB ASSY
- Поз.: 30-1
25 31YC-32280
- 31YC-32280 - BAND
- Поз.: 30-2
26 S015-120452
- S015-120452 - BOLT-HEX
- Поз.: 30-3
27 S411-120002
- S411-120002 - WASHER-SPRING
- Поз.: 30-4
28 S071-023430
- S071-023430 - U-BOLT
- Поз.: 30-5
29 S201-101002
- S201-101002 - NUT-HEX
- Поз.: 30-6
30 S411-100002
- S411-100002 - WASHER-SPRING
- Поз.: 30-7
31 31Y1-15026
- 31Y1-15026 - PIPE ASSY-R
- Поз.: 31
32 S107-120554
- S107-120554 - BOLT-SOCKET
- Поз.: 34
