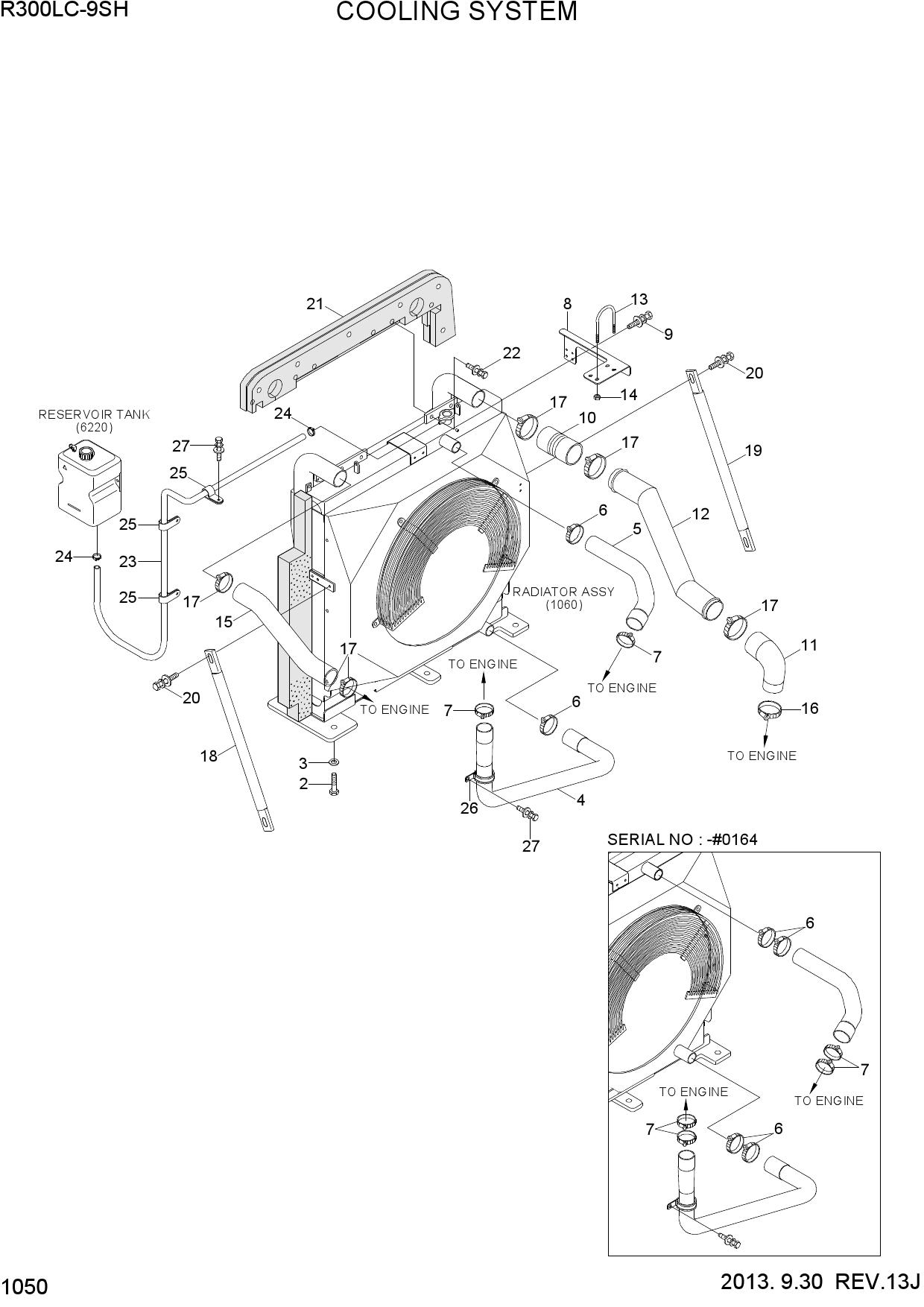

COOLING SYSTEM
1 S017-16045D
- S017-16045D - BOLT-HEX
- Поз.: 2
2 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 3
3 11Q8-41410
- 11Q8-41410 - HOSE-LOWER
- Поз.: 4
4 11Q8-41421
- 11Q8-41421 - HOSE-UPPER
- Поз.: 5
5 S572-750006
- S572-750006 - CLAMP-HOSE WIRE TYPE
- Поз.: 6
6 11Q4-44300
- 11Q4-44300 - CLAMP
- Поз.: 6
7 S572-820006
- S572-820006 - CLAMP-HOSE WIRE TYPE
- Поз.: 7
8 11Q4-44310
- 11Q4-44310 - CLAMP
- Поз.: 7
9 11Q8-41470
- 11Q8-41470 - BRACKET
- Поз.: 8
10 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 9
11 11Q9-40420
- 11Q9-40420 - HOSE-CAC
- Поз.: 10
12 11Q8-41441
- 11Q8-41441 - HOSE-CAC
- Поз.: 11
13 11Q8-41481
- 11Q8-41481 - PIPE-CAC
- Поз.: 12
14 11N6-43280-DA
- 11N6-43280-DA - U-BOLT
- Поз.: 13
15 S275-12000B
- S275-12000B - NUT-SELF LOCKING
- Поз.: 14
16 11Q8-41451
- 11Q8-41451 - HOSE-CAC
- Поз.: 15
17 11U2-40180
- 11U2-40180 - CLAMP-T-RETENTION
- Поз.: 16
18 11Q8-41460
- 11Q8-41460 - CLAMP-BAND
- T-BOLT
- Поз.: 17
19 11Q8-41530
- 11Q8-41530 - STAY
- Поз.: 18
20 11Q6-41170
- 11Q6-41170 - STAY
- Поз.: 19
21 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 20
22 11Q8-42520
- 11Q8-42520 - SCREEN ASSY
- Поз.: 21
23 11Q8-42521
- 11Q8-42521 - SCREEN ASSY
- Поз.: 21
24 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 22
25 E111-2504
- E111-2504 - HOSE
- Поз.: 23
26 S520-017000
- S520-017000 - CLAMP-HOSE
- Поз.: 24
27 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 25
28 31L7-10360
- 31L7-10360 - CLAMP
- Поз.: 26
29 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 27
