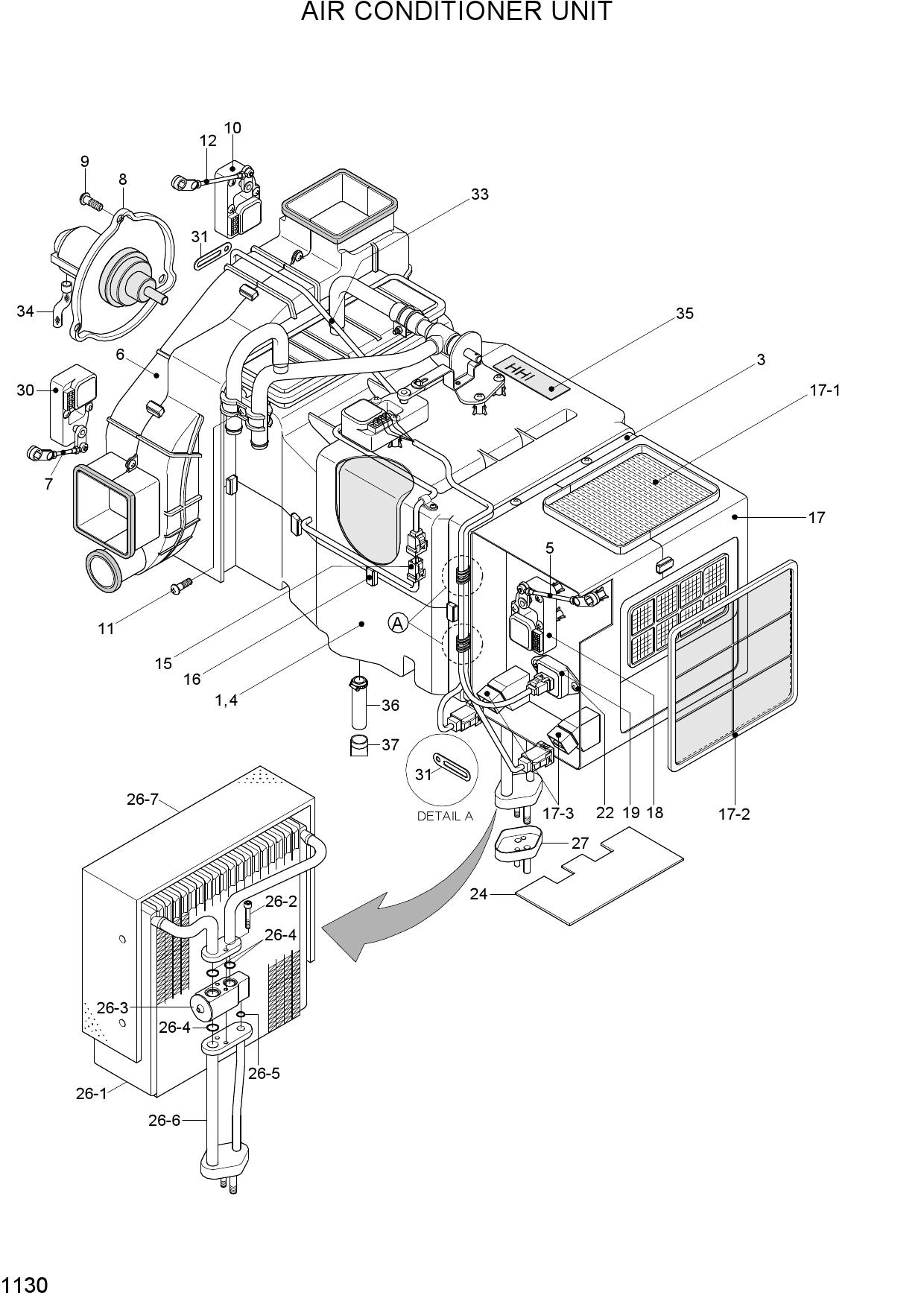

AIR CONDITIONER UNIT(-#0099)
1 AM12101400-0
- AM12101400-0 - HVAC CASE-LOW
- Поз.: 1
2 AM11101602-0
- AM11101602-0 - HVAC CASE-UPP
- Поз.: 3
3 AM75001000-2
- AM75001000-2 - EVAC INSULATION-LOW
- Поз.: 4
4 AM52300100-4
- AM52300100-4 - ROD-INTAKE
- Поз.: 5
5 AW10001400-2
- AW10001400-2 - BLOWER CASE ASSY
- Поз.: 6
6 AW70002400-4
- AW70002400-4 - ROD-DEF/FOOT
- Поз.: 7
7 11N6-90700
- 11N6-90700 - FAN & MOTOR
- Поз.: 8
8 AW22000800-2
- AW22000800-2 - FAN
- Поз.: 8-1
9 AW21002500-1
- AW21002500-1 - MOTOR
- Поз.: 8-2
10 4AH-0886
- 4AH-0886 - SCREW
- Поз.: 9
11 11N6-90710
- 11N6-90710 - MOTOR ACT-VENT
- Поз.: 10
12 K500531
- K500531 - SCREW
- Поз.: 11
13 AW70002300-4
- AW70002300-4 - ROD-VENT
- Поз.: 12
14 A165400100-2
- A165400100-2 - SENSOR-DUCT
- Поз.: 15
15 4AH-0688
- 4AH-0688 - CLIP-CASE
- Поз.: 16
16 AM13000203-2
- AM13000203-2 - INTAKE CASE ASSY
- Поз.: 17
17 11N6-90740
- 11N6-90740 - MOTOR ACT-INTAKE
- Поз.: 18
18 11N6-90750
- 11N6-90750 - RESISTOR ASSY
- Поз.: 19
19 11N6-90760
- 11N6-90760 - AIR FILTER-FRESH
- Поз.: 20
20 11N6-90770
- 11N6-90770 - AIR FILTER-REFRESH
- Поз.: 21
21 K500533
- K500533 - SCREW
- Поз.: 22
22 A112050700-3
- A112050700-3 - PLATE-SIDE
- Поз.: 24
23 11N6-90790
- 11N6-90790 - EVAP CORE ASSY
- Поз.: 26
24 A111056400-1
- A111056400-1 - CORE ASSY-LAMI
- Поз.: 26-1
25 A111750100-4
- A111750100-4 - BOLT-WRENCH
- HEX
- Поз.: 26-2
26 11N6-90800
- 11N6-90800 - VALVE-EXPANSION
- Поз.: 26-3
27 A305000212-2
- A305000212-2 - O-RING
- Поз.: 26-4
28 A305000211-2
- A305000211-2 - O-RING
- Поз.: 26-5
29 A112059600-2
- A112059600-2 - PIPE ASSY
- Поз.: 26-6
30 A115004900-2
- A115004900-2 - INSULATION-CORE
- Поз.: 26-7
31 A306201301-3
- A306201301-3 - CAP-FLANGE
- Поз.: 27
32 11N6-90810
- 11N6-90810 - MOTOR ACT-FOOT/DEF
- Поз.: 30
33 4AH-0643
- 4AH-0643 - HOLDER-WIRE
- Поз.: 31
34 11N6-90820
- 11N6-90820 - RELAY
- Поз.: 32
35 11N6-90830
- 11N6-90830 - WIRING ASSY
- Поз.: 33
36 A710051601-3
- A710051601-3 - HOSE-DRAIN
- Поз.: 34
37 AE73000400Z2
- AE73000400Z2 - PLATE-NAME
- Поз.: 35
