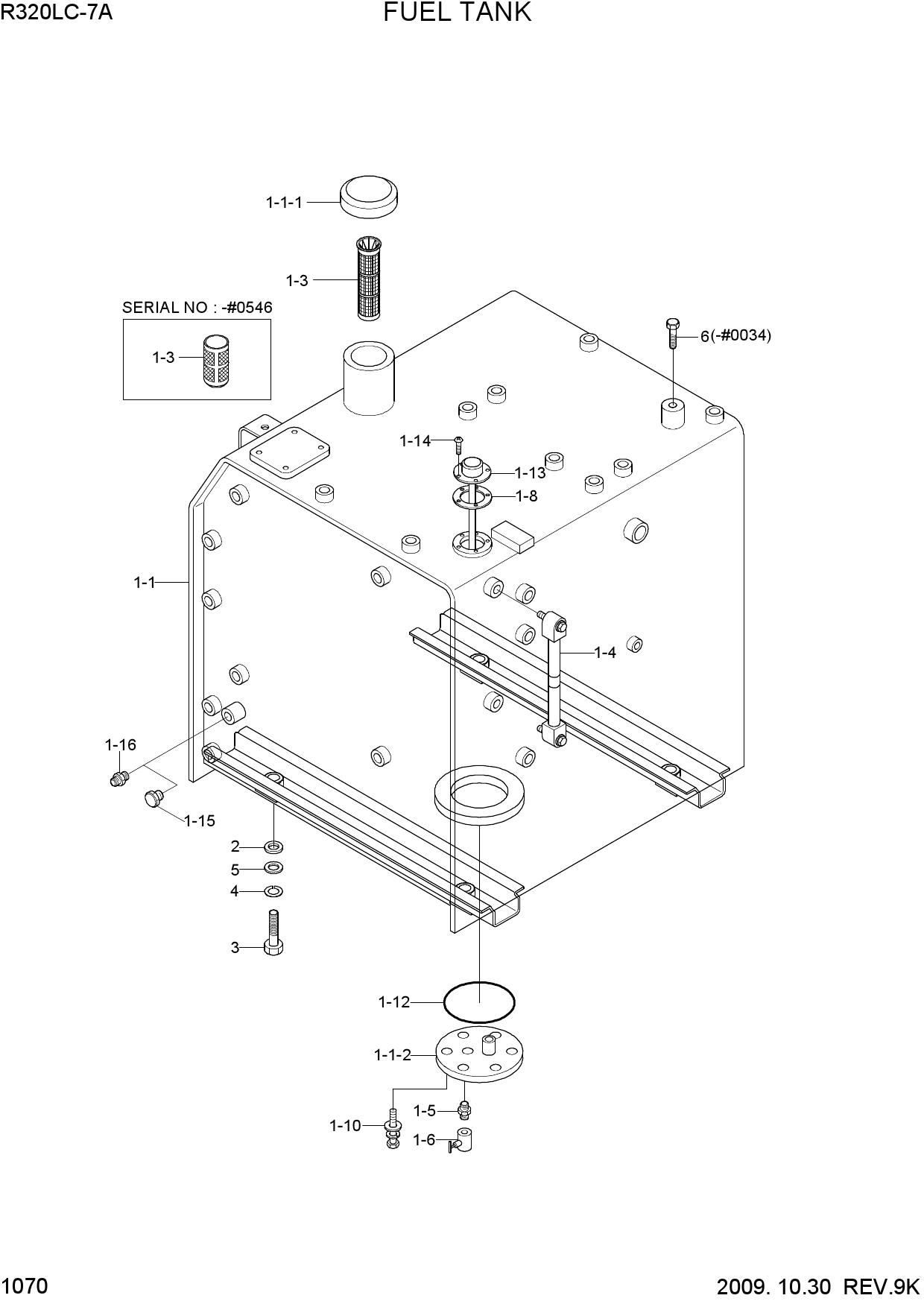

FUEL TANK
1 31N8-03014
- 31N8-03014 - FUEL TANK WA
- Поз.: 1-1
2 31N8-03111
- 31N8-03111 - FUEL TANK WA
- Поз.: 1-1
3 31N8-03112
- 31N8-03112 - FUEL TANK WA
- Поз.: 1-1
4 31N8-03510
- 31N8-03510 - FUEL TANK WA
- Поз.: 1-1
5 E131-1038
- E131-1038 - CAP-FILLER
- Поз.: 1-1-1
6 31N4-02120
- 31N4-02120 - FUEL CAP ASSY
- Поз.: 1-1-1
7 31N4-02110
- 31N4-02110 - COVER-DRAIN
- Поз.: 1-1-2
8 31E1-10300
- 31E1-10300 - STRAINER
- Поз.: 1-3
9 31QA-02080
- 31QA-02080 - STRAINER
- Поз.: 1-3
10 31N6-02600
- 31N6-02600 - GAUGE-LEVEL
- Поз.: 1-4
11 31E5-3049
- 31E5-3049 - FITTING
- Поз.: 1-5
12 E131-1006
- E131-1006 - VALVE-NEEDLE
- Поз.: 1-6
13 E128-1053
- E128-1053 - GASKET
- Поз.: 1-8
14 S037-103022
- S037-103022 - BOLT-W/WASHER
- Поз.: 1-10
15 S632-170001
- S632-170001 - O-RING
- Поз.: 1-12
16 21NB-10701
- 21NB-10701 - SENDER-FUEL
- Поз.: 1-13
17 21QB-10700
- 21QB-10700 - SENDER-FUEL
- Поз.: 1-13
18 S161-050162
- S161-050162 - SCREW-CROSS R/ROUND
- Поз.: 1-14
19 S131-051546
- S131-051546 - SCREW-W/WASHER
- Поз.: 1-14
20 P220-430204
- P220-430204 - PLUG-HEX
- Поз.: 1-15
21 P090-101208
- P090-101208 - CONNECTOR-HOSE
- Поз.: 1-16
22 31N8-01300
- 31N8-01300 - SHIM(1.0T)
- Поз.: 2
23 S017-200502
- S017-200502 - BOLT-HEX
- Поз.: 3
24 S411-200002
- S411-200002 - WASHER-SPRING
- Поз.: 4
25 91E6-60200
- 91E6-60200 - WASHER-HARDENED
- Поз.: 5
26 S017-120202
- S017-120202 - BOLT-HEX
- Поз.: 6
