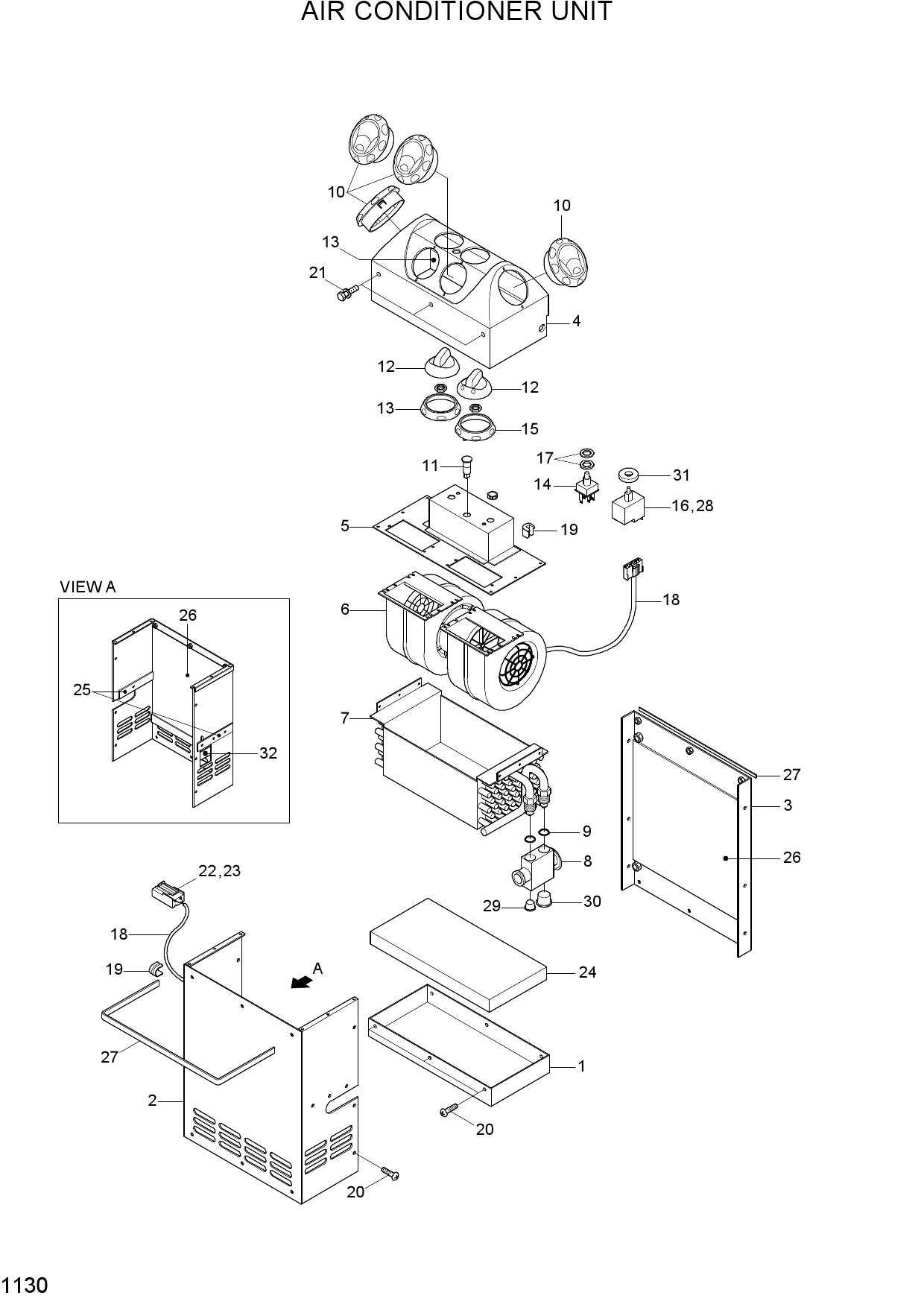

AIR CONDITIONER UNIT
1 ZFAD-00001
- ZFAD-00001 - CONDENSATE VAT S.U.E
- Поз.: 1
2 ZFAD-00002
- ZFAD-00002 - BOX-STEEL
- Поз.: 2
3 ZFAD-00003
- ZFAD-00003 - BEHIND COWL S.U.E
- Поз.: 3
4 ZFAD-00004
- ZFAD-00004 - COVER-THERMOFORMED
- Поз.: 4
5 ZFAD-00005
- ZFAD-00005 - BRACKET-BLOWER
- Поз.: 5
6 ZFAD-00006
- ZFAD-00006 - BLOWER-DOUBLE
- Поз.: 6
7 ZFAD-00007
- ZFAD-00007 - EVAPORATOR S.U.E
- Поз.: 7
8 ZFAD-00008
- ZFAD-00008 - VALVE-EXPANSION
- Поз.: 8
9 ZFAD-00009
- ZFAD-00009 - O-RING
- Поз.: 9
10 ZFAD-00010
- ZFAD-00010 - LOUVER-SENSYO
- Поз.: 10
11 ZFAD-00011
- ZFAD-00011 - GREEN LIGHT
- Поз.: 11
12 ZFAD-00041
- ZFAD-00041 - KNOB
- Поз.: 12
13 ZFAD-00013
- ZFAD-00013 - PANEL-VENTILATION
- Поз.: 13
14 ZFAD-00014
- ZFAD-00014 - SWITCH-4 POSITIONS
- Поз.: 14
15 ZFAD-00015
- ZFAD-00015 - PANEL-COOLING
- Поз.: 15
16 ZFAD-00016
- ZFAD-00016 - THERMOSTAT-RANCO
- Поз.: 16
17 ZFAD-00017
- ZFAD-00017 - WASHER-LOCK
- Поз.: 17
18 ZFAD-00018
- ZFAD-00018 - WIRE-BUNDLE
- Поз.: 18
19 ZFAD-00019
- ZFAD-00019 - CLAMP-CABLE
- Поз.: 19
20 ZFAD-00020
- ZFAD-00020 - SCREW-TAPPING
- Поз.: 20
21 ZFAD-00042
- ZFAD-00042 - SCREW
- Поз.: 21
22 ZFAD-00022
- ZFAD-00022 - CONNECTOR
- Поз.: 22
23 ZFAD-00023
- ZFAD-00023 - CONNECTOR-MALE
- Поз.: 23
24 ZFAD-00024
- ZFAD-00024 - FOAM
- Поз.: 24
25 ZFAD-00025
- ZFAD-00025 - FOAM-POLYETHYLENE
- Поз.: 25
26 ZFAD-00026
- ZFAD-00026 - FOAM-ADHESIVE
- Поз.: 26
27 ZFAD-00027
- ZFAD-00027 - FOAM
- Поз.: 27
28 ZFAD-00028
- ZFAD-00028 - CLAMP-BLACK POLYAMIDE
- Поз.: 28
29 ZFAD-00029
- ZFAD-00029 - CAP-PLASTIC
- Поз.: 29
30 ZFAD-00030
- ZFAD-00030 - CAP-PLASTIC
- Поз.: 30
31 ZFAD-00031
- ZFAD-00031 - WASHER-WASHER
- Поз.: 31
