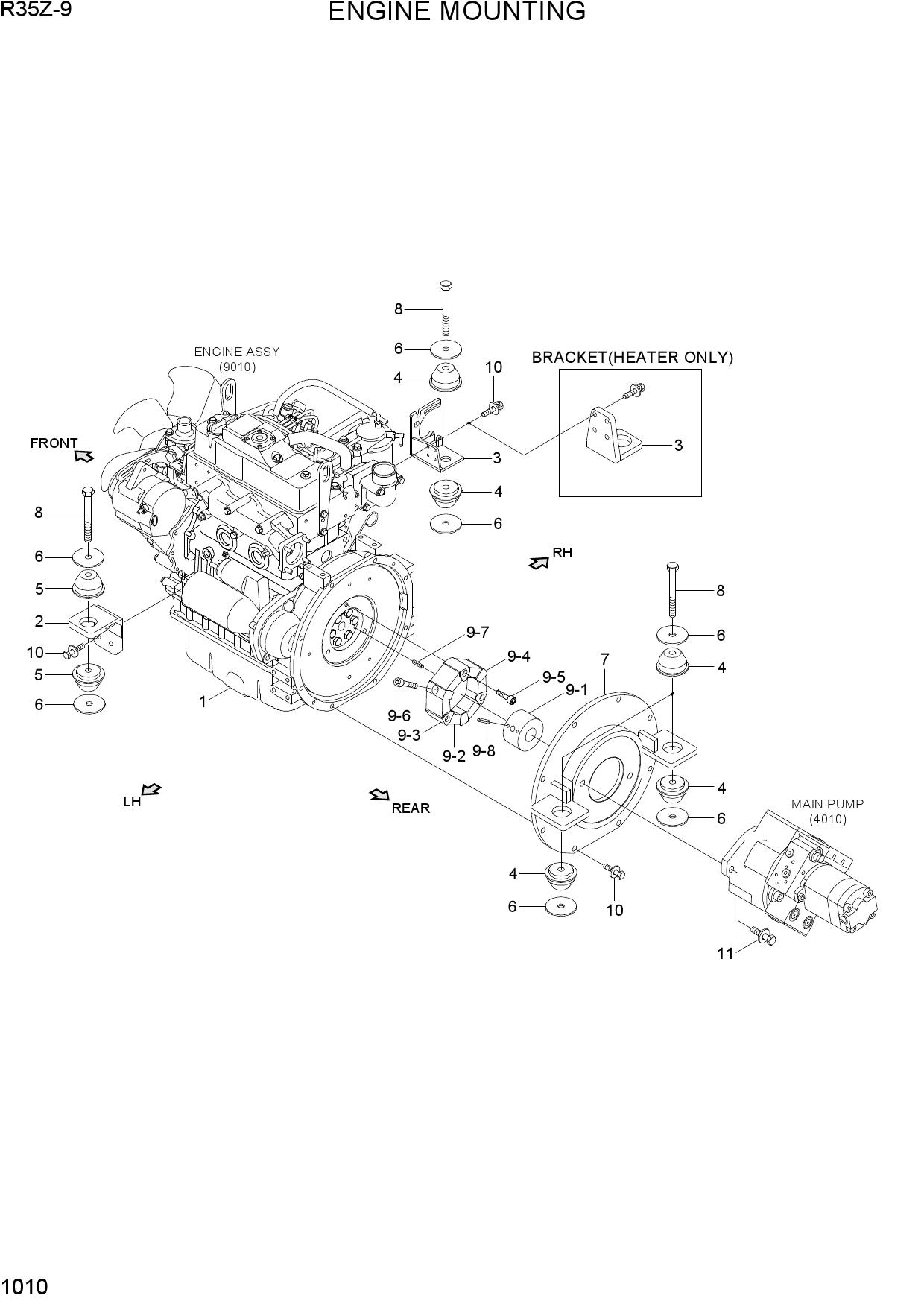

ENGINE MOUNTING
1 11MH-01010
- 11MH-01010 - ENGINE ASSY
- Поз.: 1
2 11MH-00200
- 11MH-00200 - BRACKET-FRONT
- Поз.: 2
3 11MH-00291
- 11MH-00291 - COMP BRACKET
- Поз.: 3
4 11MH-00270
- 11MH-00270 - BRACKET-FRONT
- Поз.: 3
5 11MH-07150
- 11MH-07150 - MOUNT-RUBBER
- Поз.: 4
6 11MH-07160
- 11MH-07160 - MOUNT-RUBBER
- Поз.: 5
7 11MH-00230
- 11MH-00230 - WASHER-PLATE
- Поз.: 6
8 11MH-00220
- 11MH-00220 - HOUSING-PUMP
- Поз.: 7
9 S017-121106
- S017-121106 - BOLT-HEX
- Поз.: 8
10 11MF-10020
- 11MF-10020 - COUPLING ASSY
- Поз.: 9
11 11MF-12010
- 11MF-12010 - HUB-SPLINE
- Поз.: 9-1
12 11MF-12020
- 11MF-12020 - RUBBER ASSY
- Поз.: 9-2
13 S109-120356
- S109-120356 - BOLT-SOCKET
- Поз.: 9-5
14 S109-120356
- S109-120356 - BOLT-SOCKET
- Поз.: 9-6
15 S472-500254
- S472-500254 - PIN-SPRING
- Поз.: 9-7
16 S472-500104
- S472-500104 - PIN-SPRING
- Поз.: 9-8
17 S037-103052
- S037-103052 - BOLT-W/WASHER
- Поз.: 10
18 S037-123556
- S037-123556 - BOLT-W/WASHER
- Поз.: 11
