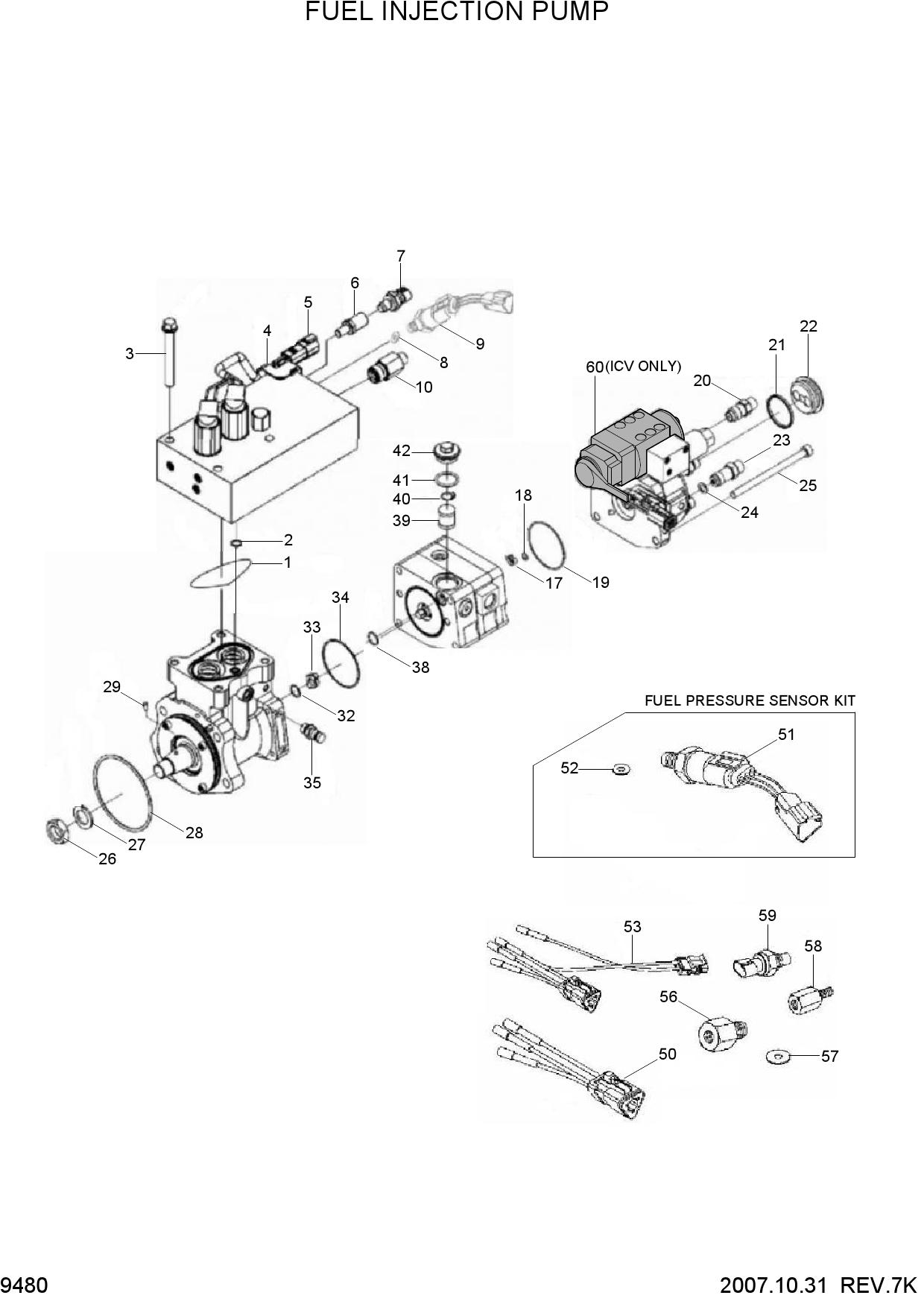

FUEL INJECTION PUMP
1 3330797
- 3330797 - O-RING/SEAL
- Поз.: 1
2 3867640
- 3867640 - O-RING
- Поз.: 2
3 3331002
- 3331002 - SCREW-HEX HEAD CAP
- Поз.: 3
4 3417095
- 3417095 - RETAINING CLIP-WIRE
- Поз.: 4
5 3417161
- 3417161 - HARNESS-WIRING
- Поз.: 5
6 4010084
- 4010084 - ADAPTER-FUEL SENSOR
- Поз.: 6
7 4010051
- 4010051 - SENSOR-FUEL TEMP
- Поз.: 7
8 4076375
- 4076375 - WASHER-SEAL
- Поз.: 8
9 3408551
- 3408551 - SENSOR-FUEL PRESS
- Поз.: 9
10 4010544
- 4010544 - VALVE ASSY-ROTE SHAPE
- Поз.: 10
11 3330644
- 3330644 - COUPLING-ROTOR
- Поз.: 17
12 3867480
- 3867480 - O-RING/SEAL
- Поз.: 18
13 3867645
- 3867645 - O-RING/SEAL
- Поз.: 19
14 3348757
- 3348757 - O-RING/SEAL
- Поз.: 21
15 3347873
- 3347873 - CAP-FUEL FILTER
- Поз.: 22
16 3800909
- 3800909 - FITTING ASSY-OUTLET
- Поз.: 23
17 3867724
- 3867724 - WASHER-SEALING
- Поз.: 24
18 3347941
- 3347941 - SCREW-SOCKET HEAD
- Поз.: 25
19 3926593
- 3926593 - NUT-HEX
- Поз.: 26
20 3330252
- 3330252 - WASHER-SPRING
- Поз.: 27
21 3330081
- 3330081 - SEAL/O-RING
- Поз.: 28
22 3329899
- 3329899 - PIN-DOWEL
- Поз.: 29
23 4061755
- 4061755 - HUB-DISTRIBUTOR
- Поз.: 33
24 3867642
- 3867642 - O-RING/SEAL
- Поз.: 34
25 3348448
- 3348448 - CONNECTOR
- Поз.: 35
26 3867641
- 3867641 - O-RING
- Поз.: 38
27 3090769
- 3090769 - SCREEN-FILTER
- Поз.: 39
28 70700
- 70700 - SPRING-COMPRESSION
- Поз.: 40
29 3046943
- 3046943 - O-RING
- Поз.: 41
30 4062462
- 4062462 - CAP-FUEL FILTER
- Поз.: 42
31 3164188
- 3164188 - CONNECTOR-ELE REPAIR
- Поз.: 50
32 3164187
- 3164187 - CONNECTOR-ELE REPAIR
- Поз.: 53
33 4009826
- 4009826 - ADATOR-PRESS SENSOR
- Поз.: 56
34 3087276
- 3087276 - WASHER-LARGE SEAL
- Поз.: 57
35 4010084
- 4010084 - ADAPTER-FUEL SENSOR
- Поз.: 58
36 4010051
- 4010051 - SENSOR-FUEL TEMP
- Поз.: 59
37 4089661
- 4089661 - INJECTION CNTL VLV
- Поз.: 60
38 3408551
- 3408551 - SENSOR-FUEL PRESS
- Поз.: 51
39 4076375
- 4076375 - WASHER-SEAL
- Поз.: 52
