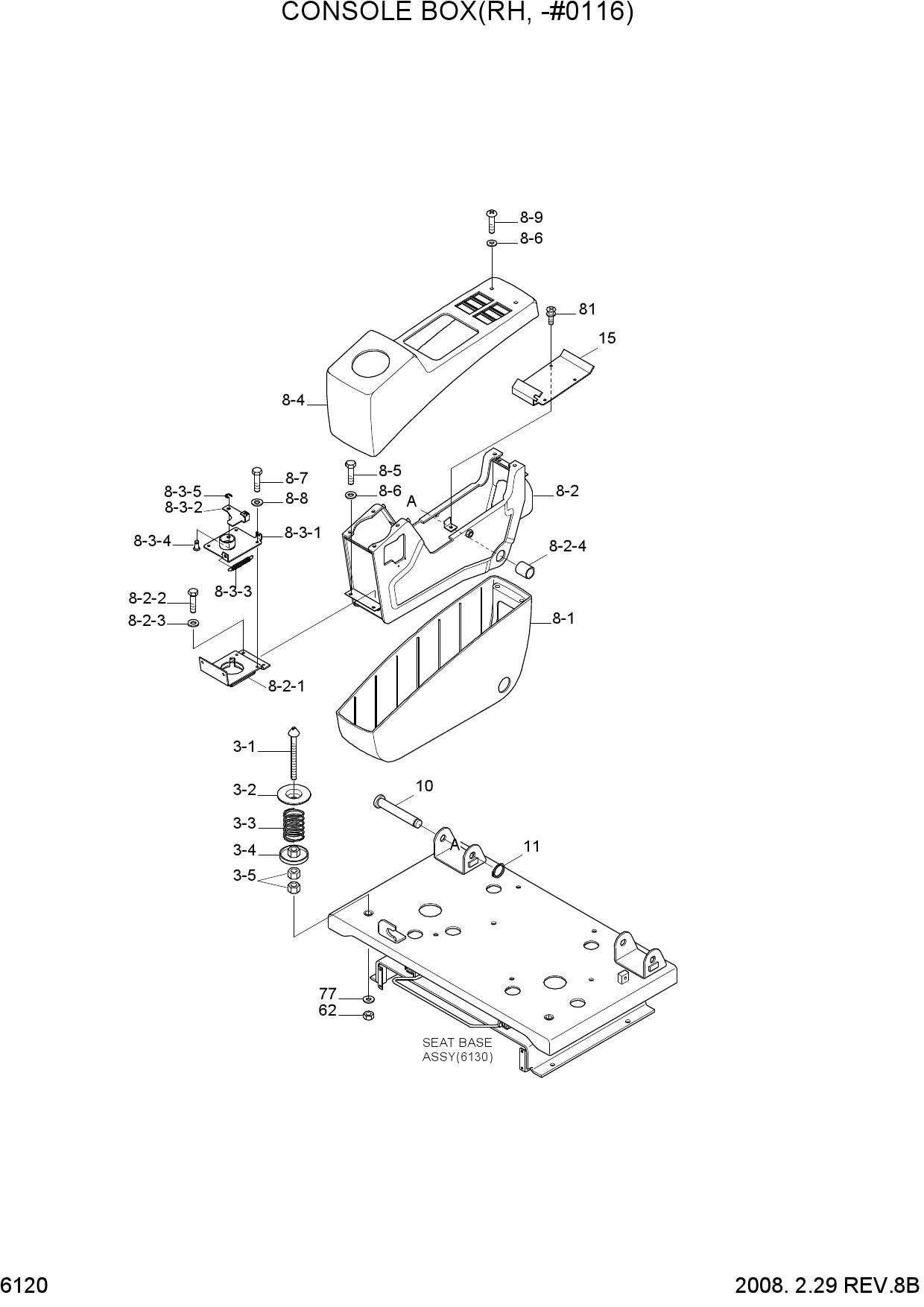

CONSOLE BOX(RH, -#0116)
1 71N6-20031
- 71N6-20031 - TILT LOCKER ASSY
- Поз.: 3
2 71N6-21151
- 71N6-21151 - SHAFT
- Поз.: 3-1
3 71N6-21160
- 71N6-21160 - PLATE
- Поз.: 3-2
4 71N6-21170
- 71N6-21170 - SPRING
- Поз.: 3-3
5 71N6-21180
- 71N6-21180 - PLATE WA
- Поз.: 3-4
6 S207-161006
- S207-161006 - NUT-HEX
- Поз.: 3-5
7 71N6-20440
- 71N6-20440 - CONSOLE BOX ASSY-RH
- Поз.: 8
8 71N6-20071
- 71N6-20071 - CONSOLE BOX-LOW
- Поз.: 8-1
9 71N6-20061
- 71N6-20061 - C/BOX FRAME WA-RH
- Поз.: 8-2
10 71N6-21320
- 71N6-21320 - BRACKET-TILT
- Поз.: 8-2-1
11 S015-060146
- S015-060146 - BOLT-HEX
- Поз.: 8-2-2
12 S403-062006
- S403-062006 - WASHER-PLAIN
- Поз.: 8-2-3
13 S731-020025
- S731-020025 - BUSHING-DU
- Поз.: 8-2-4
14 71N6-20091
- 71N6-20091 - TILT CATCH ASSY
- Поз.: 8-3
15 71N6-21420
- 71N6-21420 - TILT CATCH-LOW
- Поз.: 8-3-1
16 71N6-21451
- 71N6-21451 - TILT CATCH-UP
- Поз.: 8-3-2
17 71N6-21460
- 71N6-21460 - SPRING
- Поз.: 8-3-3
18 71N6-21470
- 71N6-21470 - PIN
- Поз.: 8-3-4
19 P560-090002
- P560-090002 - RETAINING RING-E TYPE
- Поз.: 8-3-5
20 71N6-20172
- 71N6-20172 - CONSOLE BOX-UP(RH)
- Поз.: 8-4
21 S015-050206
- S015-050206 - BOLT-HEX
- Поз.: 8-5
22 S403-052006
- S403-052006 - WASHER-PLAIN
- Поз.: 8-6
23 S161-060126
- S161-060126 - SCREW-CROSS R/ROUND
- Поз.: 8-7
24 S403-062006
- S403-062006 - WASHER-PLAIN
- Поз.: 8-8
25 S161-050166
- S161-050166 - SCREW-CROSS R/ROUND
- Поз.: 8-9
26 71N6-20082
- 71N6-20082 - SHAFT
- Поз.: 10
27 S601-020004
- S601-020004 - RING-RETAINING
- Поз.: 11
28 71N6-20111
- 71N6-20111 - PLATE-CABLE
- Поз.: 15
29 S205-161006
- S205-161006 - NUT-HEX
- Поз.: 62
30 S403-162006
- S403-162006 - WASHER-PLAIN
- Поз.: 77
31 S131-061646
- S131-061646 - SCREW-W/WASHER
- Поз.: 81
