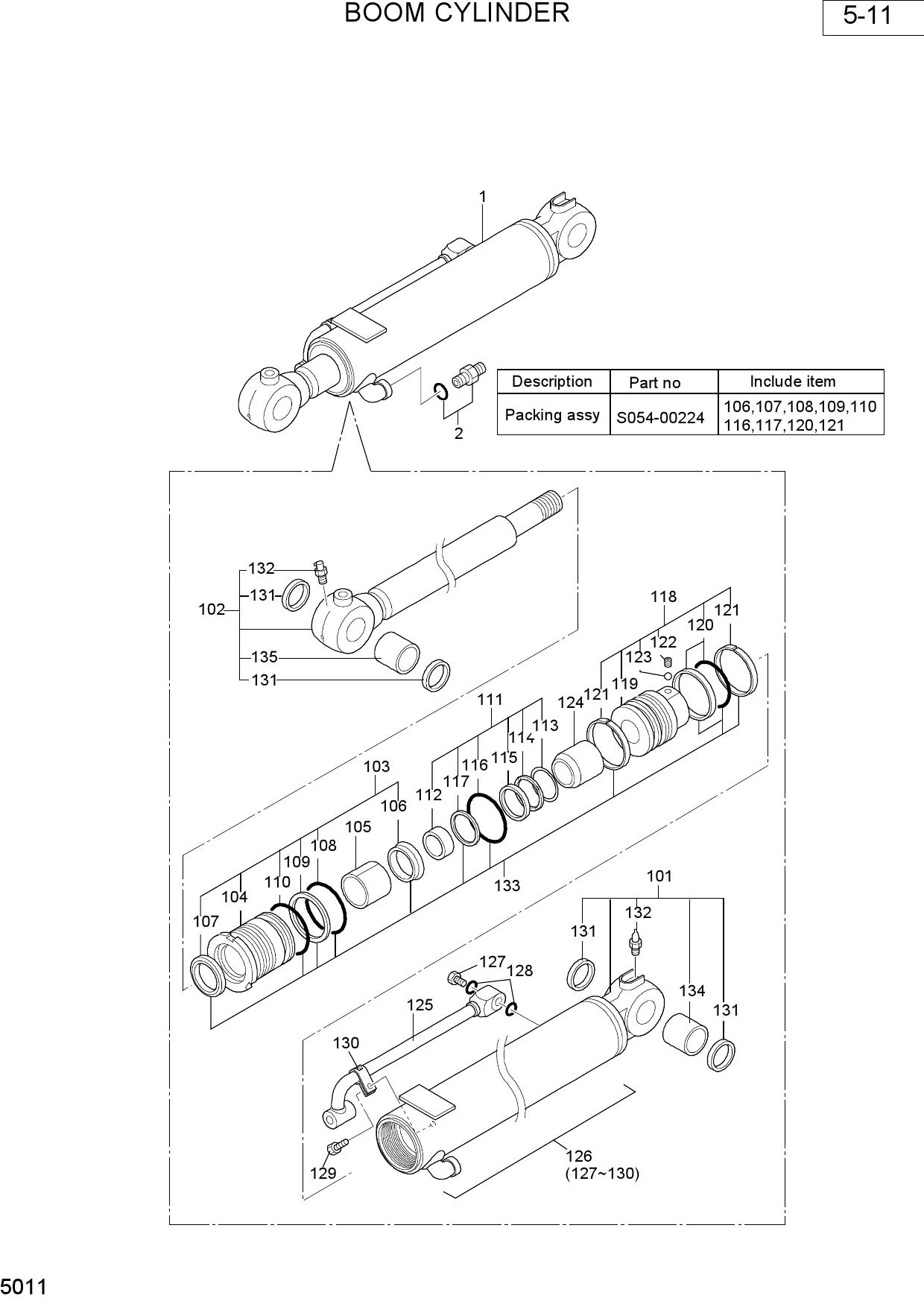

BOOM CYLINDER
1 XJDH-01965
- XJDH-01965 - BOOM CYLINDER
- Поз.: 1
2 XJDH-02213
- XJDH-02213 - TUBE ASSY-CYL
- Поз.: 101
3 XJDH-02214
- XJDH-02214 - ROD ASSY-PISTON
- Поз.: 102
4 XJDH-02215
- XJDH-02215 - HEAD ASSY-CYL
- Поз.: 103
5 XJDH-02216
- XJDH-02216 - HEAD-CYL
- Поз.: 104
6 XJDH-02175
- XJDH-02175 - BUSHING
- Поз.: 105
7 XJDH-02217
- XJDH-02217 - U-RING
- Поз.: 106
8 XJDH-02177
- XJDH-02177 - RING-WIPER
- Поз.: 107
9 XJDH-00352
- XJDH-00352 - O-RING
- Поз.: 108
10 XJDH-02218
- XJDH-02218 - RING-BACK UP
- Поз.: 109
11 XJDH-00353
- XJDH-00353 - O-RING
- Поз.: 110
12 XJDH-02219
- XJDH-02219 - HOLDER ASSY
- Поз.: 111
13 XJDH-02220
- XJDH-02220 - HOLDER
- Поз.: 112
14 XJDH-02221
- XJDH-02221 - SPACER
- Поз.: 113
15 XJDH-02222
- XJDH-02222 - SEAL-CUSHION
- Поз.: 114
16 XJDH-02223
- XJDH-02223 - COLLAR
- Поз.: 115
17 XJDH-00352
- XJDH-00352 - O-RING
- Поз.: 116
18 XJDH-02224
- XJDH-02224 - RING-BACK UP
- Поз.: 117
19 XJDH-02225
- XJDH-02225 - PISTON ASSY
- Поз.: 118
20 XJDH-02226
- XJDH-02226 - PISTON
- Поз.: 119
21 XJDH-02227
- XJDH-02227 - SEAL RING ASSY
- Поз.: 120
22 XJDH-02228
- XJDH-02228 - RING-SLIDE
- Поз.: 121
23 XJDH-02156
- XJDH-02156 - SCREW-SET
- Поз.: 122
24 XJDH-02157
- XJDH-02157 - BALL-STEEL
- Поз.: 123
25 XJDH-02229
- XJDH-02229 - BEARING-CUSHION
- Поз.: 124
26 XJDH-02230
- XJDH-02230 - PIPE ASSY
- Поз.: 125
27 XJDH-02160
- XJDH-02160 - PLUG ASSY
- Поз.: 126
28 XJDH-02161
- XJDH-02161 - PLUG
- Поз.: 127
29 XJDH-00335
- XJDH-00335 - O-RING
- Поз.: 128
30 XJDH-02162
- XJDH-02162 - BOLT-UPSET
- Поз.: 129
31 XJDH-02163
- XJDH-02163 - HOLDER-PIPE
- Поз.: 130
32 XJDH-02164
- XJDH-02164 - SEAL-DUST
- Поз.: 131
33 XJDH-00373
- XJDH-00373 - NIPPLE-GREASE
- Поз.: 132
34 XJDH-02209
- XJDH-02209 - PACKING ASSY
- Поз.: 133
35 XJDH-02199
- XJDH-02199 - BUSHING
- Поз.: 134
36 XJDH-02200
- XJDH-02200 - BUSHING
- Поз.: 135
37 XJDH-00452
- XJDH-00452 - CONNECTOR-MALE
- Поз.: 2
