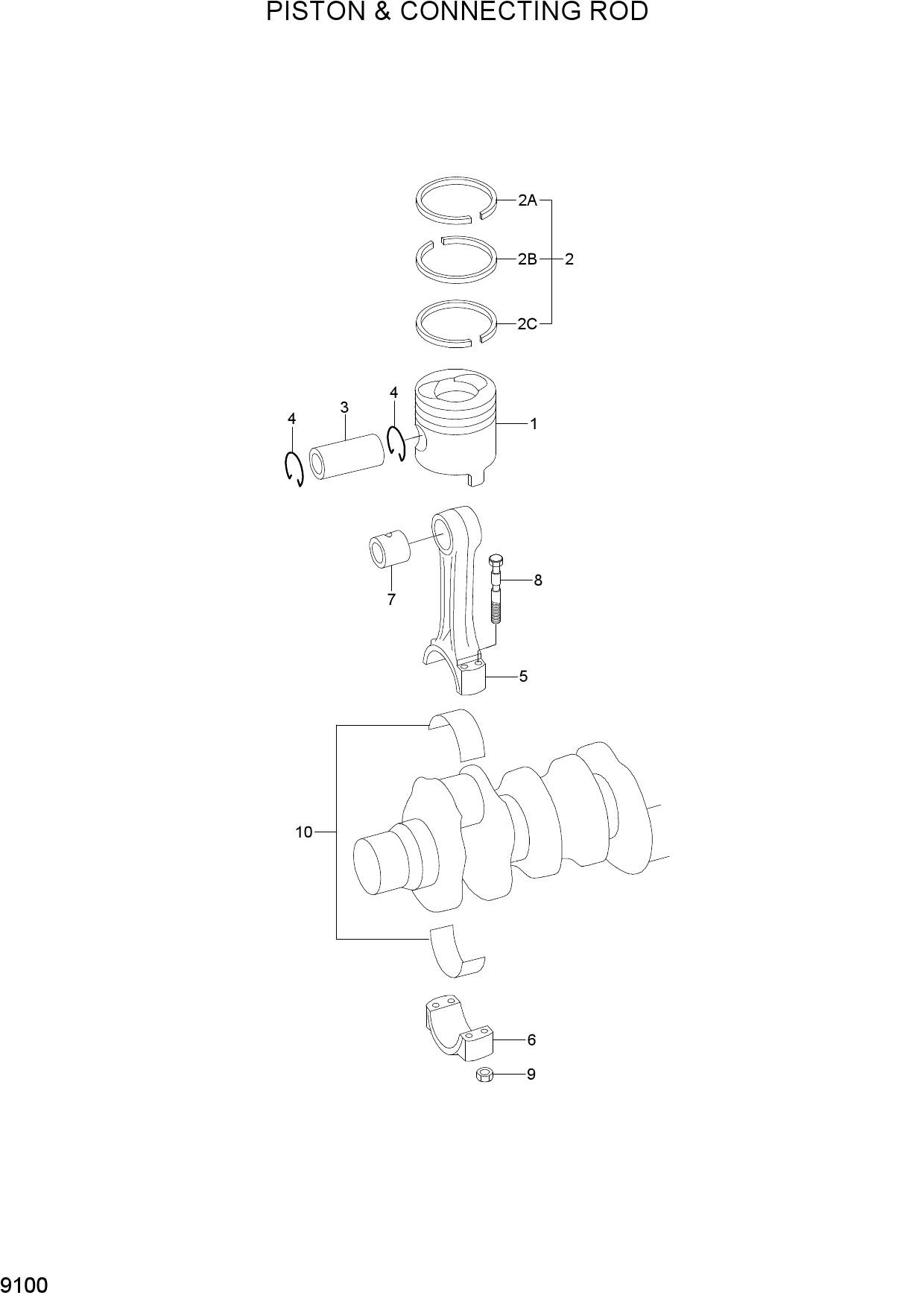

PISTON & CONNECTING ROD
1 23411-83411
- 23411-83411 - PISTON-STD
- Поз.: 1
2 23411-83894
- 23411-83894 - PISTON-OS0.50
- Поз.: 1
3 23411-83895
- 23411-83895 - PISTON-OS0.75
- Поз.: 1
4 23411-83896
- 23411-83896 - PISTON-OS1.00
- Поз.: 1
5 23040-83030
- 23040-83030 - RING SET-PISTON
- ST
- Поз.: 2
6 23412-83000
- 23412-83000 - PIN-PISTON
- Поз.: 3
7 23414-72000
- 23414-72000 - RING-SNAP
- Поз.: 4
8 23518-83800
- 23518-83800 - BUSHING-SEMI SIZE
- Поз.: 7
9 23513-83001
- 23513-83001 - BOLT-CONNECTING ROD
- Поз.: 8
10 23514-83000
- 23514-83000 - NUT
- Поз.: 9
11 23060-83000
- 23060-83000 - BEARING SET-C/R
- ST
- Поз.: 10
12 23611-83010
- 23611-83010 - BEARING-C/R
- STD(LO
- Поз.: 10
13 23612-83010
- 23612-83010 - BEARING-C/R
- STD(UP
- Поз.: 10
14 23060-83901
- 23060-83901 - BEARING SET-C/R
- US
- Поз.: 10
15 23060-83902
- 23060-83902 - BEARING SET-C/R
- US
- Поз.: 10
16 23060-83903
- 23060-83903 - BEARING SET-C/R
- US
- Поз.: 10
17 23060-83904
- 23060-83904 - BEARING SET-C/R
- US
- Поз.: 10
18 23060-83905
- 23060-83905 - BEARING SET-C/R
- US
- Поз.: 10
19 23060-83906
- 23060-83906 - BEARING SET-C/R
- US
- Поз.: 10
