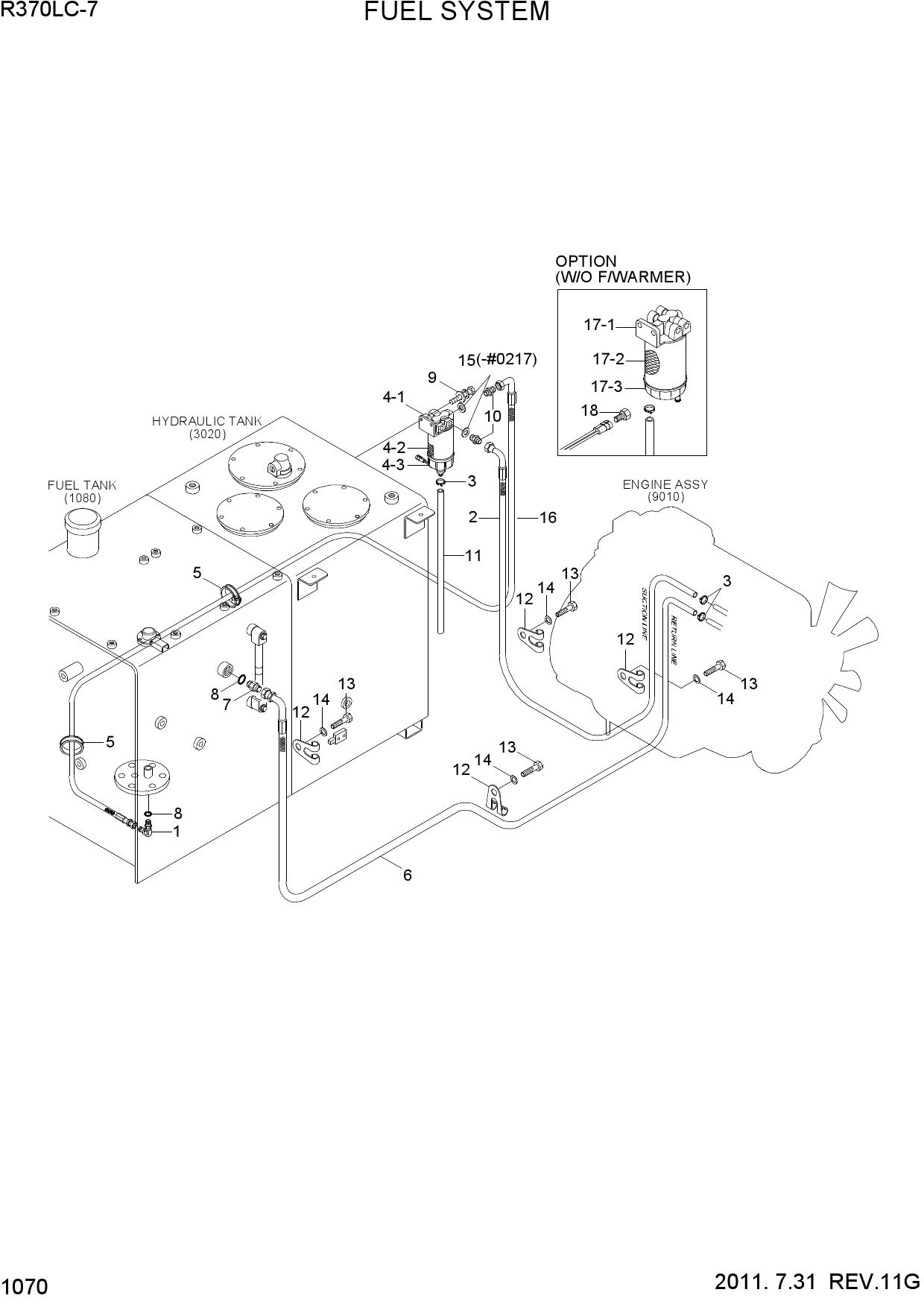

FUEL SYSTEM
1 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 1
2 11N8-52110
- 11N8-52110 - HOSE ASSY
- Поз.: 2
3 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 3
4 11NB-70400
- 11NB-70400 - PREFILTER ASSY
- Поз.: 4
5 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 4-1
6 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 4-2
7 11NB-70410
- 11NB-70410 - BOWL ASSY-W/HEATER
- Поз.: 4-3
8 11NB-70420
- 11NB-70420 - GASKET-DRAIN KNOB
- Поз.: 4-3-1
9 S760-041000
- S760-041000 - GROMMET
- Поз.: 5
10 11N8-50120
- 11N8-50120 - HOSE ASSY
- Поз.: 6
11 P010-110015
- P010-110015 - CONNECTOR
- Поз.: 7
12 S631-018001
- S631-018001 - O-RING
- Поз.: 8
13 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 9
14 11NA-50040
- 11NA-50040 - CONNECTOR
- Поз.: 10
15 11QB-50040
- 11QB-50040 - CONNECTOR
- Поз.: 10
16 11N1-50020
- 11N1-50020 - HOSE ASSY
- Поз.: 11
17 S593-001702
- S593-001702 - CLIP-HARNESS
- Поз.: 12
18 S017-100156
- S017-100156 - BOLT-HEX
- Поз.: 13
19 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 14
20 P392-160000
- P392-160000 - WASHER-COPPER
- Поз.: 15
21 14EA-52101
- 14EA-52101 - HOSE-FUEL
- Поз.: 16
22 11LB-20300
- 11LB-20300 - PREFILTER ASSY
- Поз.: 17
23 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 17-1
24 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 17-2
25 11LD-20260
- 11LD-20260 - BOWL ASSY-W/KNOB
- Поз.: 17-3
26 11N8-50070
- 11N8-50070 - PLUG
- Поз.: 18
