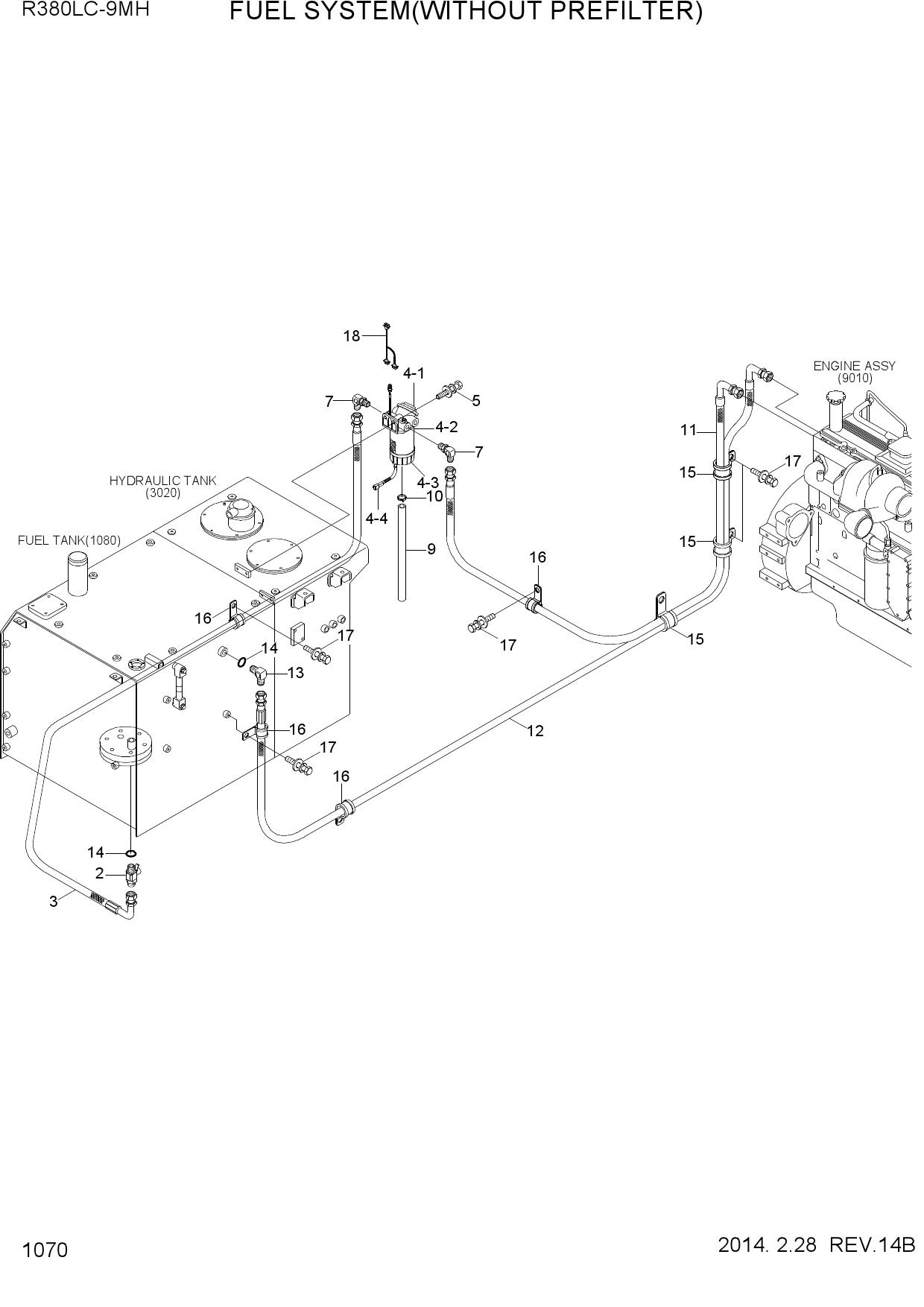

FUEL SYSTEM(WITHOUT PREFILTER)
1 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 2
2 11Q9-50040
- 11Q9-50040 - HOSE-FUEL
- Поз.: 3
3 11QA-71000
- 11QA-71000 - FUEL FILTER ASSY
- Поз.: 4
4 11QA-73000
- 11QA-73000 - FUEL FILTER ASSY
- Поз.: 4
5 11QA-71010
- 11QA-71010 - HEAD ASSY
- Поз.: 4-1
6 11QA-71040
- 11QA-71040 - ELEMENT ASSY
- Поз.: 4-2
7 11QA-71050
- 11QA-71050 - BOWL ASSY
- Поз.: 4-3
8 11QA-71030
- 11QA-71030 - BOWL ASSY
- Поз.: 4-3
9 11QA-71020
- 11QA-71020 - WIF SENSOR ASSY
- Поз.: 4-4
10 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 5
11 11N8-50060
- 11N8-50060 - ELBOW-90
- Поз.: 7
12 11M8-50030
- 11M8-50030 - HOSE ASSY
- Поз.: 9
13 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 10
14 11Q9-50020
- 11Q9-50020 - HOSE-FUEL
- Поз.: 11
15 11NA-53031
- 11NA-53031 - HOSE-FUEL
- Поз.: 12
16 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 13
17 S631-018004
- S631-018004 - O-RING
- Поз.: 14
18 31L7-10220
- 31L7-10220 - CLAMP-TUBE
- INS SINGLE
- Поз.: 15
19 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 16
20 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 17
21 21QB-23500
- 21QB-23500 - HARNESS FUEL WARMER
- Поз.: 18
