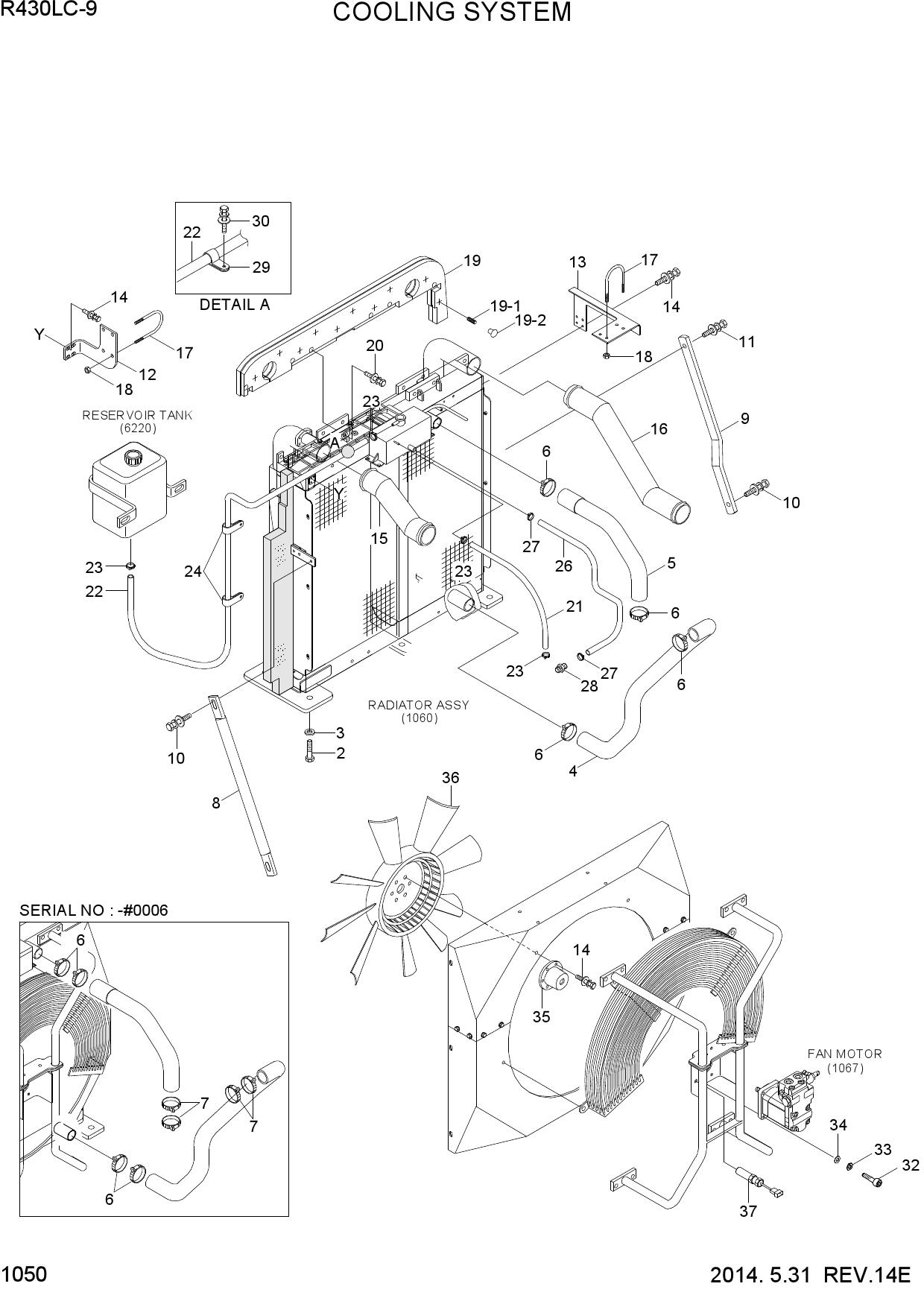

COOLING SYSTEM
1 S017-16045D
- S017-16045D - BOLT-HEX
- Поз.: 2
2 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 3
3 11Q9-40292
- 11Q9-40292 - HOSE-LOWER
- Поз.: 4
4 11Q9-40242
- 11Q9-40242 - HOSE-UPPER
- Поз.: 5
5 S572-720006
- S572-720006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 6
6 11Q4-44300
- 11Q4-44300 - CLAMP
- Поз.: 6
7 S572-750006
- S572-750006 - CLAMP-HOSE WIRE TYPE
- Поз.: 7
8 11N8-46150
- 11N8-46150 - STAY
- Поз.: 8
9 11Q9-40710
- 11Q9-40710 - STAY-BAR
- Поз.: 9
10 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 10
11 S037-102556
- S037-102556 - BOLT-W/WASHER
- Поз.: 11
12 11Q9-40383
- 11Q9-40383 - BRACKET
- Поз.: 12
13 11Q9-40392
- 11Q9-40392 - BRACKET
- Поз.: 13
14 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 14
15 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 14
16 11QA-40113
- 11QA-40113 - PIPE-CAC
- Поз.: 15
17 11QA-40103
- 11QA-40103 - PIPE-CAC
- Поз.: 16
18 11N6-43280-DA
- 11N6-43280-DA - U-BOLT
- Поз.: 17
19 S275-12000B
- S275-12000B - NUT-SELF LOCKING
- Поз.: 18
20 11Q9-40404
- 11Q9-40404 - SCREEN ASSY
- Поз.: 19
21 71EM-51590
- 71EM-51590 - STUD BOLT
- Поз.: 19-1
22 71EM-51580
- 71EM-51580 - CAP-STUD BOLT
- Поз.: 19-2
23 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 20
24 12L1-3011
- 12L1-3011 - HOSE-DRAIN
- Поз.: 21
25 E111-2504
- E111-2504 - HOSE
- Поз.: 22
26 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 23
27 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 24
28 11QB-40180
- 11QB-40180 - HOSE-MAKE UP
- Поз.: 26
29 S572-340006
- S572-340006 - CLAMP-HOSE
- WIRE TYPE
- Поз.: 27
30 14L4-01650
- 14L4-01650 - CONNECTOR-HOSE
- Поз.: 28
31 31L7-10190
- 31L7-10190 - CLAMP-TUBE
- Поз.: 29
32 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 30
33 S109-080406
- S109-080406 - BOLT-SOCKET
- Поз.: 32
34 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 33
35 S403-08100B
- S403-08100B - WASHER-PLAIN
- Поз.: 34
36 11Q9-60020
- 11Q9-60020 - CONNECTOR
- Поз.: 35
37 11QA-00041
- 11QA-00041 - FAN-COOLING(9EA)
- Поз.: 36
38 21LM-08210
- 21LM-08210 - SENSOR-SPEED
- Поз.: 37
