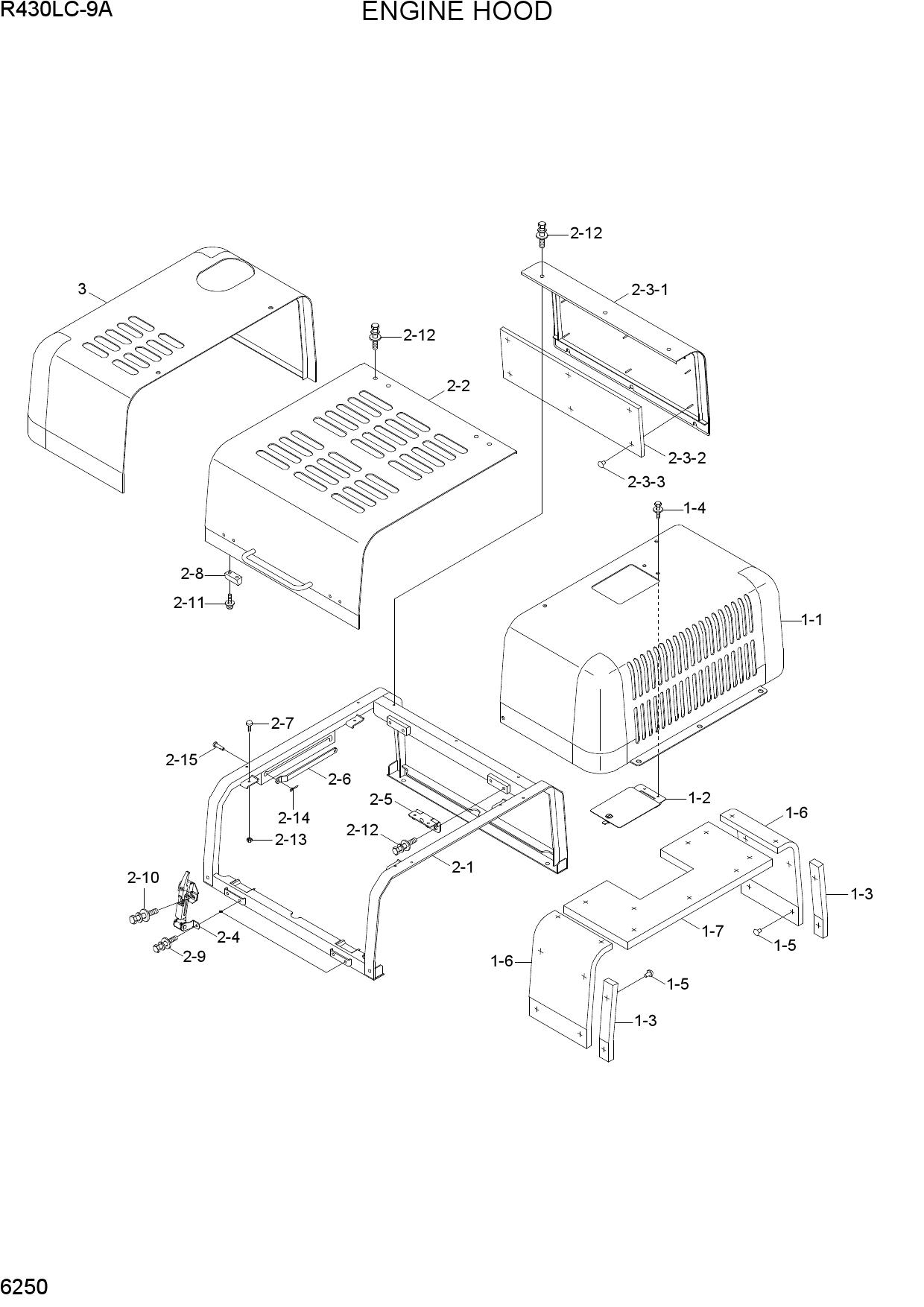

ENGINE HOOD
1 73QA-51501
- 73QA-51501 - ENGINE HOOD ASSY
- Поз.: 1
2 73QA-51501
- 73QA-51501 - ENGINE HOOD ASSY
- Поз.: 1-1
3 71QB-61900
- 71QB-61900 - COVER ASSY
- Поз.: 1-2
4 72QB-51651
- 72QB-51651 - SPONGE
- Поз.: 1-3
5 S035-082056
- S035-082056 - BOLT-W/WASHER
- Поз.: 1-4
6 71EM-51580
- 71EM-51580 - CAP-STUD BOLT
- Поз.: 1-5
7 73QA-51660
- 73QA-51660 - SPONGE
- Поз.: 1-6
8 73QA-51671
- 73QA-51671 - SPONGE
- Поз.: 1-7
9 73QA-51300
- 73QA-51300 - ENGINE HOOD ASSY
- Поз.: 2
10 73QA-51100
- 73QA-51100 - SUPPORT WA
- Поз.: 2-1
11 72QB-51310
- 72QB-51310 - COVER WA
- Поз.: 2-2
12 72QB-51400
- 72QB-51400 - COVER ASSY
- Поз.: 2-3
13 72QB-51411
- 72QB-51411 - COVER WA
- Поз.: 2-3-1
14 72QB-51470
- 72QB-51470 - SPONGE
- Поз.: 2-3-2
15 71EM-51580
- 71EM-51580 - CAP-STUD BOLT
- Поз.: 2-3-3
16 71N6-56400GG
- 71N6-56400GG - CATCH ASSY
- Поз.: 2-4
17 71QB-61800
- 71QB-61800 - HINGE ASSY
- Поз.: 2-5
18 71QB-61401
- 71QB-61401 - STAY WA
- Поз.: 2-6
19 71ML-52830
- 71ML-52830 - DAMPER
- Поз.: 2-7
20 71N6-51140
- 71N6-51140 - STOPPER-A
- Поз.: 2-8
21 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 2-9
22 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 2-10
23 S132-063056
- S132-063056 - SCREW-W/WASHER
- Поз.: 2-11
24 71Q6-50025
- 71Q6-50025 - BOLT-W/WASHER
- Поз.: 2-12
25 S205-10100B
- S205-10100B - NUT-HEX
- Поз.: 2-13
26 S461-320252
- S461-320252 - PIN-SPLIT
- Поз.: 2-14
27 S491-080252
- S491-080252 - PIN-CLEVIS
- Поз.: 2-15
28 73QA-51700
- 73QA-51700 - ENGINE HOOD WA
- Поз.: 3
