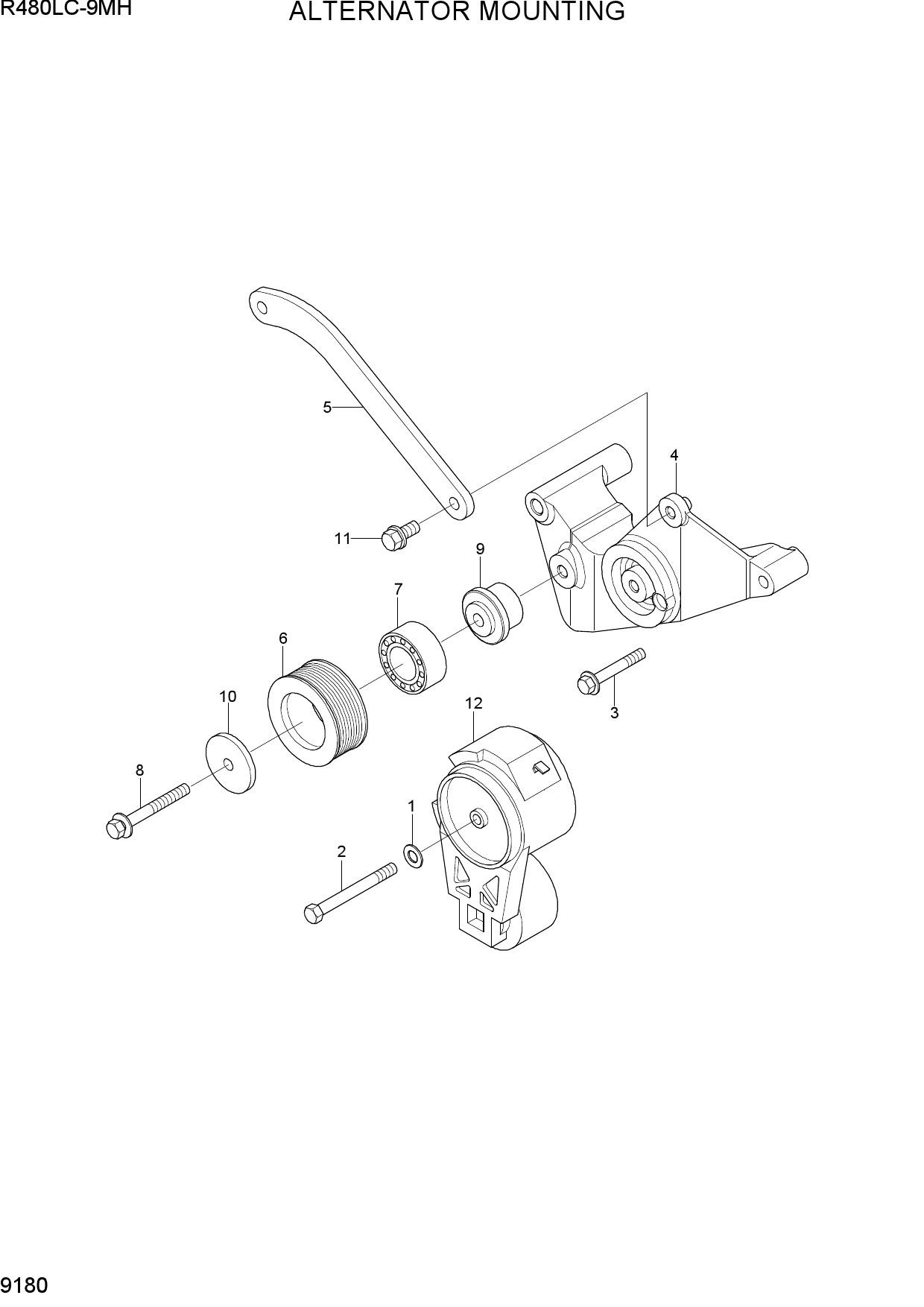

ALTERNATOR MOUNTING
1 3009330
- 3009330 - WASHER-PLAIN
- Поз.: 1
2 3081348
- 3081348 - SCREW-HEX HD CAP
- Поз.: 2
3 3821847
- 3821847 - SCREW-CAPTIVE W/CAP
- Поз.: 3
4 3104213
- 3104213 - SUPPORT-ALTERNATOR
- Поз.: 4
5 3400878
- 3400878 - BRACE-ALTERNATOR
- Поз.: 5
6 3400883
- 3400883 - PULLEY-IDLER
- Поз.: 6
7 3401202
- 3401202 - BEARING-BALL
- Поз.: 7
8 3820710
- 3820710 - SCREW
- Поз.: 8
9 4060100
- 4060100 - SHAFT-IDLER
- Поз.: 9
10 4060101
- 4060101 - COVER-IDLER PULLEY
- Поз.: 10
11 3818060
- 3818060 - SCREW-CAPTIVE W/CAP
- Поз.: 11
12 4920105
- 4920105 - TENSIONER-BELT
- Поз.: 12
