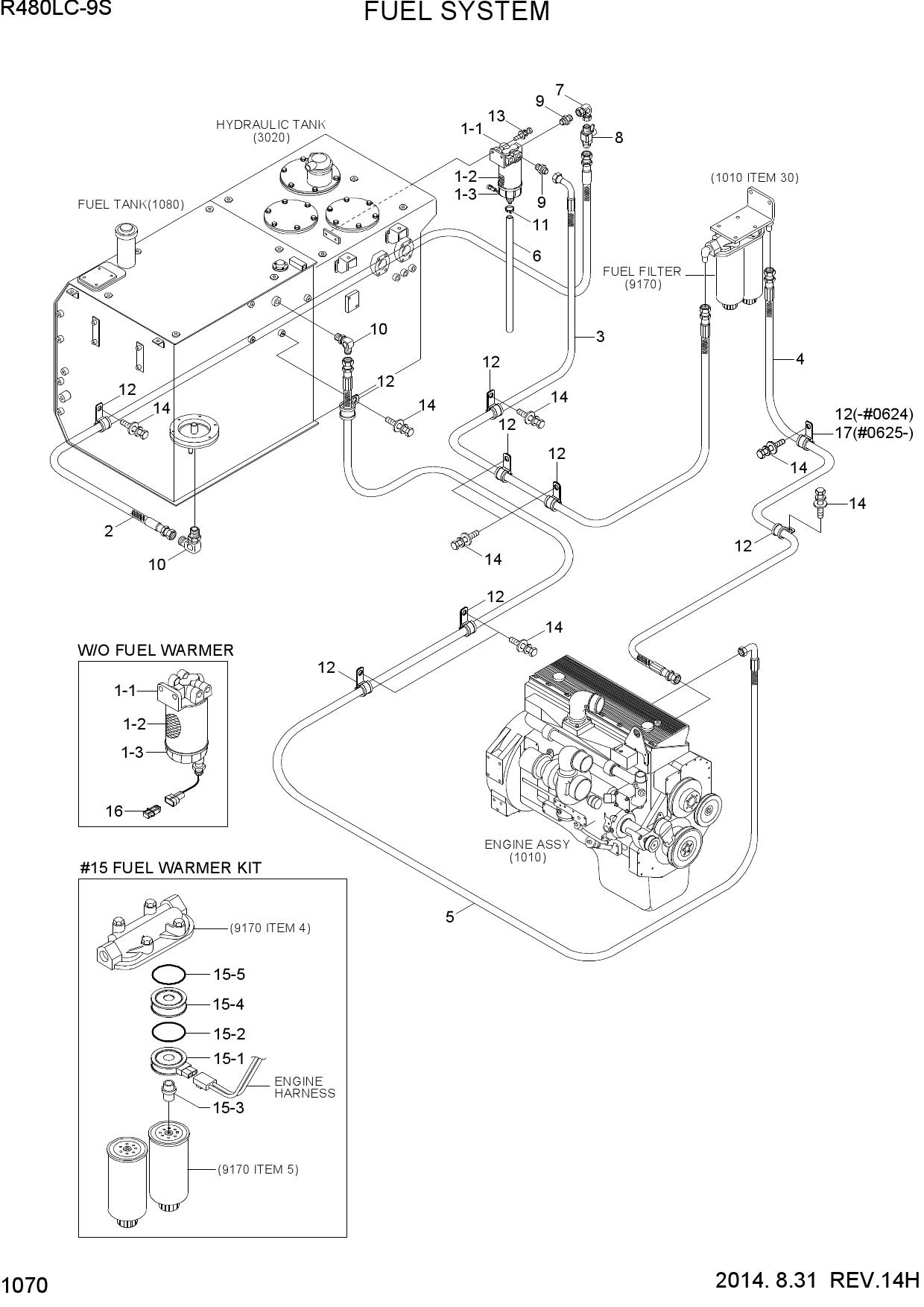

FUEL SYSTEM
1 11NB-70400
- 11NB-70400 - PREFILTER ASSY
- Поз.: 1
2 11LB-20300
- 11LB-20300 - PREFILTER ASSY
- Поз.: 1
3 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 1-1
4 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 1-2
5 11NB-70410
- 11NB-70410 - BOWL ASSY-W/HEATER
- Поз.: 1-3
6 11LD-20260
- 11LD-20260 - BOWL ASSY-W/KNOB
- Поз.: 1-3
7 11QB-50070
- 11QB-50070 - HOSE-FUEL
- Поз.: 2
8 P460-080037
- P460-080037 - HOSE ASSY-FUEL(0X0 )
- Поз.: 2
9 11QB-50050
- 11QB-50050 - HOSE-FUEL
- Поз.: 3
10 11QB-50060
- 11QB-50060 - HOSE-FUEL
- Поз.: 4
11 11QB-50090
- 11QB-50090 - HOSE-FUEL
- Поз.: 4
12 11NB-50020
- 11NB-50020 - HOSE ASSY
- Поз.: 5
13 11M8-50030
- 11M8-50030 - HOSE ASSY
- Поз.: 6
14 11ND-50060
- 11ND-50060 - ELBOW-90
- ORFS
- Поз.: 7
15 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 8
16 11QB-50040
- 11QB-50040 - CONNECTOR
- Поз.: 9
17 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 10
18 S520-015000
- S520-015000 - CLAMP-HOSE
- S/DRIVE
- Поз.: 11
19 31L7-10200
- 31L7-10200 - CLAMP-TUBE
- Поз.: 12
20 31L7-10200
- 31L7-10200 - CLAMP-TUBE
- Поз.: 12
21 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 13
22 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 14
23 11NA-70410
- 11NA-70410 - FUEL WARMER KIT
- Поз.: 15
24 392702300
- 392702300 - HEATER
- Поз.: 15-1
25 392666000
- 392666000 - O-RING
- Поз.: 15-2
26 393430000
- 393430000 - INSERT
- Поз.: 15-3
27 393446900
- 393446900 - ADAPTER
- Поз.: 15-4
28 391902500
- 391902500 - GASKET
- Поз.: 15-5
29 11N8-50070
- 11N8-50070 - PLUG
- Поз.: 16
30 31L7-10340
- 31L7-10340 - CLAMP-TUBE INS
- Поз.: 17
