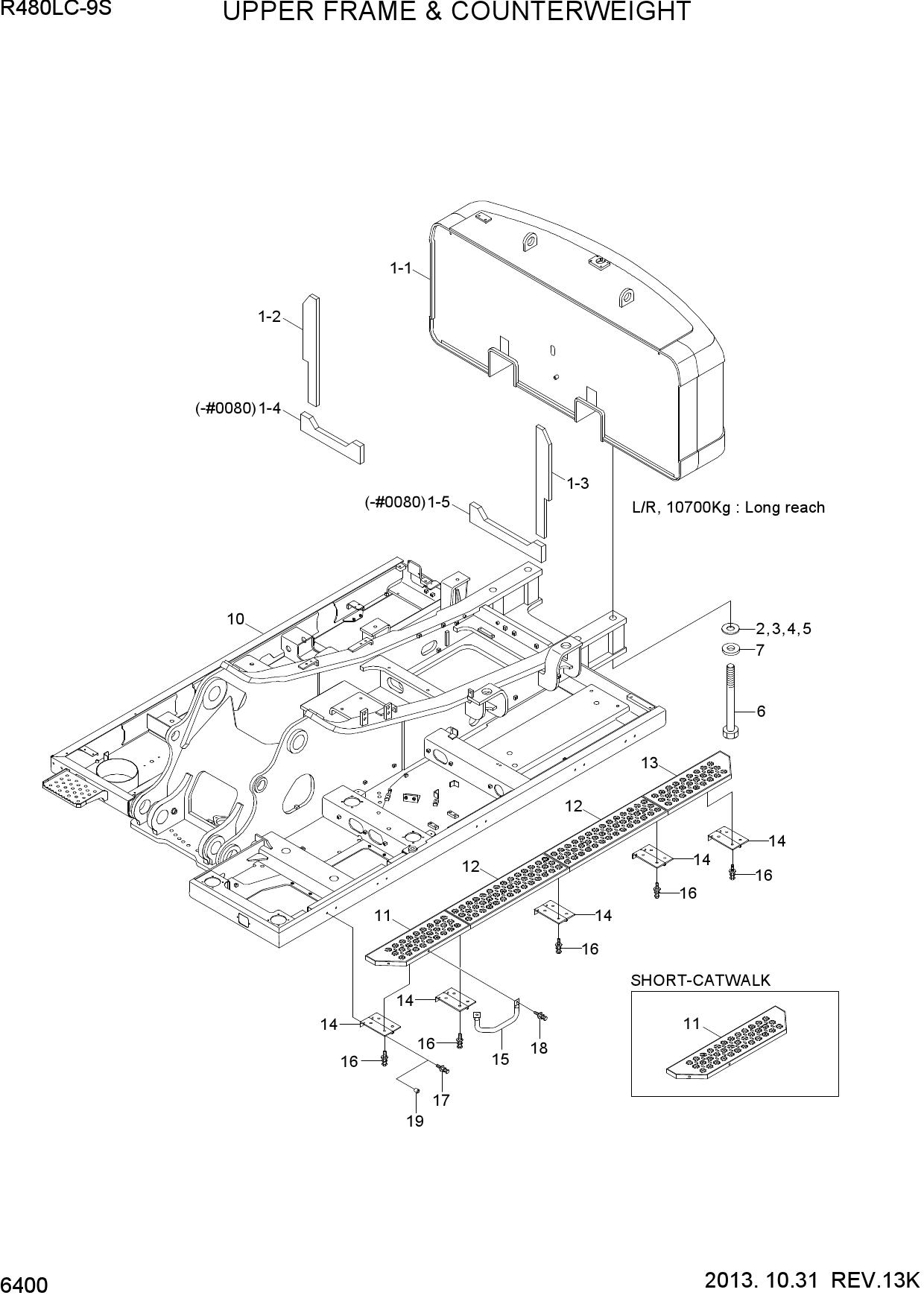

UPPER FRAME & COUNTERWEIGHT

UPPER FRAME & COUNTERWEIGHT

UPPER FRAME & COUNTERWEIGHT

1 41QB-21002

  • 41QB-21002 - COUNTERWEIGHT ASSY
  • Поз.: 1

2 41QB-21003

  • 41QB-21003 - COUNTERWEIGHT ASSY
  • Поз.: 1

3 41QB-22001

  • 41QB-22001 - COUNTERWEIGHT ASSY
  • Поз.: 1

4 41QB-22002

  • 41QB-22002 - COUNTERWEIGHT ASSY
  • Поз.: 1

5 41QB-23001

  • 41QB-23001 - COUNTERWEIGHT ASSY
  • Поз.: 1

6 41QB-23002

  • 41QB-23002 - COUNTERWEIGHT ASSY
  • Поз.: 1

7 43QB-21002

  • 43QB-21002 - COUNTERWEIGHT ASSY
  • Поз.: 1

8 43QB-21003

  • 43QB-21003 - COUNTERWEIGHT ASSY
  • Поз.: 1

9 41QB-21012

  • 41QB-21012 - COUNTERWEIGHT WA
  • Поз.: 1-1

10 41QB-21013

  • 41QB-21013 - COUNTERWEIGHT WA
  • Поз.: 1-1

11 41QB-22011

  • 41QB-22011 - COUNTERWEIGHT WA
  • Поз.: 1-1

12 41QB-22012

  • 41QB-22012 - COUNTERWEIGHT WA
  • Поз.: 1-1

13 41QB-23011

  • 41QB-23011 - COUNTERWEIGHT WA
  • Поз.: 1-1

14 41QB-23012

  • 41QB-23012 - COUNTERWEIGHT WA
  • Поз.: 1-1

15 43QB-21012

  • 43QB-21012 - COUNTERWEIGHT WA
  • Поз.: 1-1

16 43QB-21013

  • 43QB-21013 - COUNTERWEIGHT WA
  • Поз.: 1-1

17 41N8-21211

  • 41N8-21211 - SPONGE(A)
  • Поз.: 1-2

18 41N8-21212

  • 41N8-21212 - SPONGE(A)
  • Поз.: 1-2

19 41N8-21221

  • 41N8-21221 - SPONGE(B)
  • Поз.: 1-3

20 41N8-21222

  • 41N8-21222 - SPONGE(B)
  • Поз.: 1-3

21 41NB-21241

  • 41NB-21241 - SPONGE(D)
  • Поз.: 1-4

22 41NB-21250

  • 41NB-21250 - SPONGE(E)
  • Поз.: 1-5

23 S390-045100

  • S390-045100 - SHIM-ROUND(0.5T)
  • Поз.: 2

24 S391-045100

  • S391-045100 - SHIM-ROUND(1.0T)
  • Поз.: 3

25 S392-050100

  • S392-050100 - SHIM-ROUND(2.0T)
  • Поз.: 4

26 S393-050100

  • S393-050100 - SHIM-ROUND(2.0T)
  • Поз.: 5

27 43NB-32000

  • 43NB-32000 - BOLT-HEX
  • Поз.: 6

28 S441-420006

  • S441-420006 - WASHER-HARDENED
  • Поз.: 7

29 46QB-00010

  • 46QB-00010 - UPPER FRAME WA
  • Поз.: 10

30 46QB-00011

  • 46QB-00011 - UPPER FRAME WA
  • Поз.: 10

31 41Q8-40010

  • 41Q8-40010 - CATWALK WA
  • Поз.: 11

32 41QB-40100

  • 41QB-40100 - CATWALK WA
  • Поз.: 11

33 41QB-40010

  • 41QB-40010 - CATWALK WA
  • Поз.: 12

34 41Q8-40200

  • 41Q8-40200 - CATWALK WA
  • Поз.: 13

35 41Q8-40150

  • 41Q8-40150 - SUPPORT WA
  • Поз.: 14

36 41Q8-40150

  • 41Q8-40150 - SUPPORT WA
  • Поз.: 14

37 41Q8-40130

  • 41Q8-40130 - PIPE
  • Поз.: 15

38 71Q6-50030

  • 71Q6-50030 - BOLT-W/WASHER
  • Поз.: 16

39 71Q6-50030

  • 71Q6-50030 - BOLT-W/WASHER
  • Поз.: 16

40 71Q6-50045

  • 71Q6-50045 - BOLT-W/WASHER
  • Поз.: 17

41 71Q6-50045

  • 71Q6-50045 - BOLT-W/WASHER
  • Поз.: 17

42 S037-102026

  • S037-102026 - BOLT-W/WASHER
  • Поз.: 18

43 S981-121500

  • S981-121500 - PLUG
  • Поз.: 19
