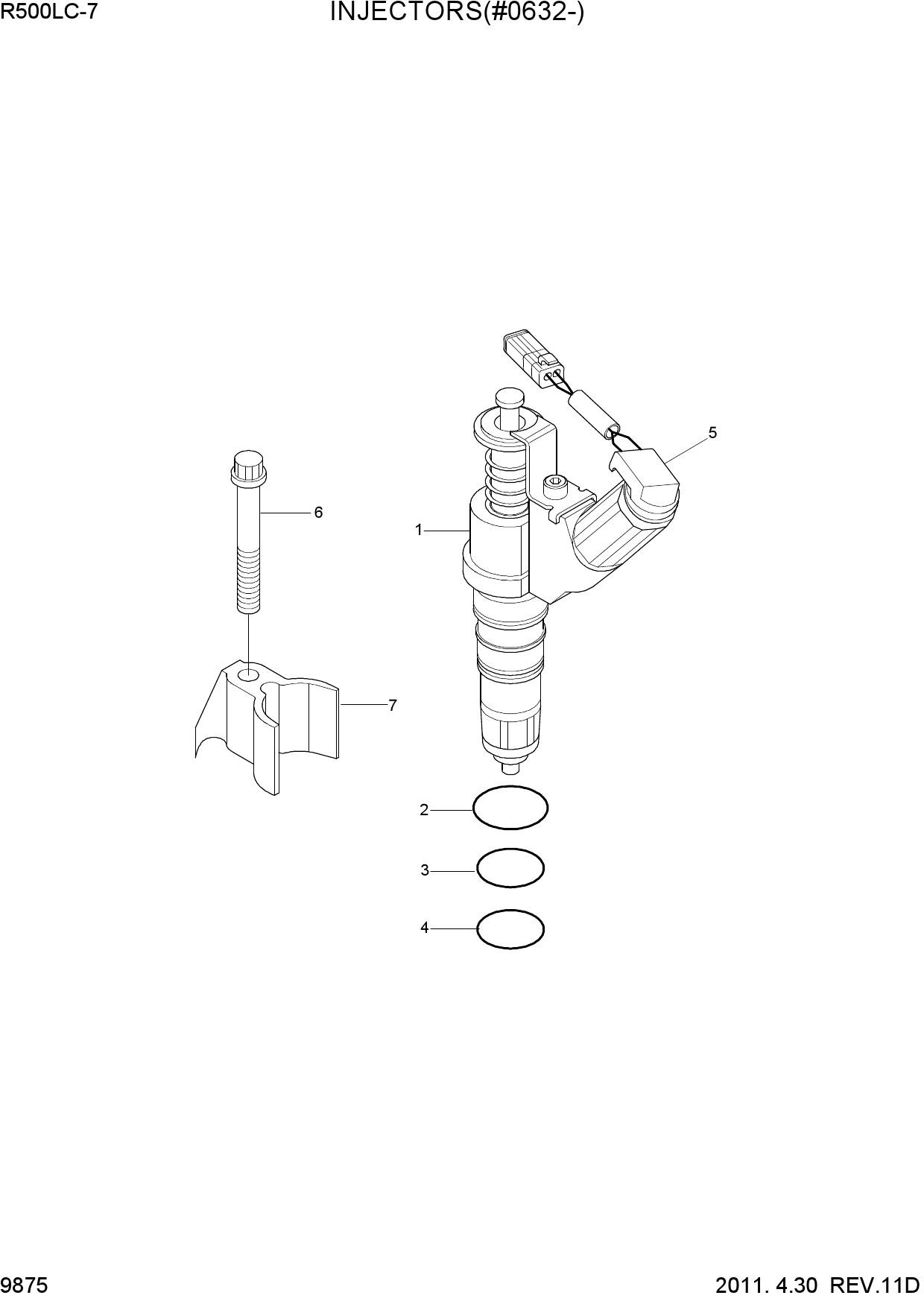

INJECTORS(#0632-)

INJECTORS(#0632-)

INJECTORS(#0632-)

1 4903472

  • 4903472 - INJECTOR
  • Поз.: 1

2 3070136

  • 3070136 - O-RING
  • Поз.: 2

3 3070137

  • 3070137 - O-RING
  • Поз.: 3

4 3070138

  • 3070138 - O-RING
  • Поз.: 4

5 3803682

  • 3803682 - KIT-WIRE HARNESS
  • Поз.: 5

6 3882793

  • 3882793 - SCREW-HEX FLG H/CAP
  • Поз.: 6

7 4022914

  • 4022914 - CLAMP-INJECTOR
  • Поз.: 7
