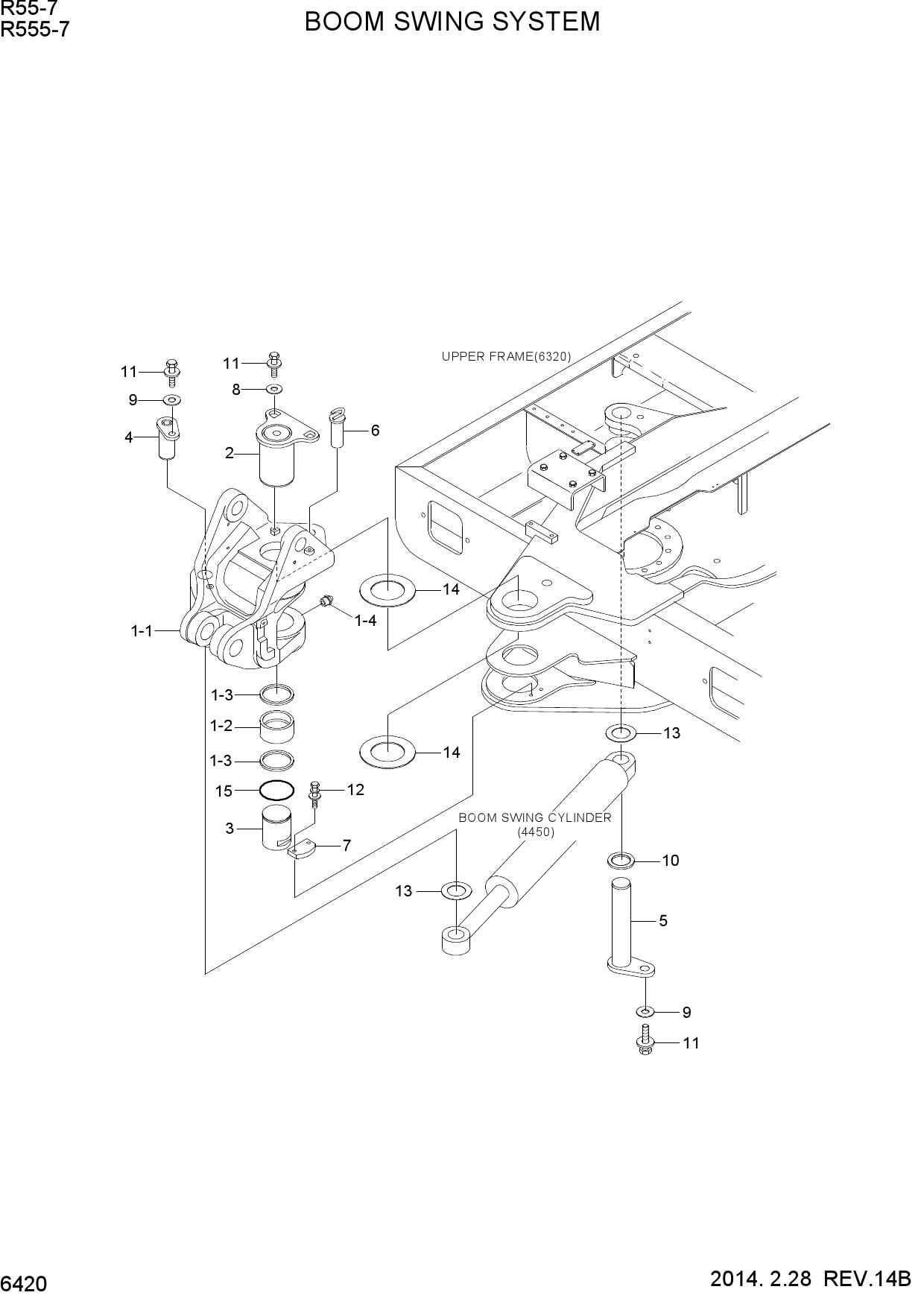

BOOM SWING SYSTEM
1 41M8-70000
- 41M8-70000 - SWING POST ASSY
- Поз.: 1
2 41M8-70001
- 41M8-70001 - SWING POST ASSY
- Поз.: 1
3 41M8-70002
- 41M8-70002 - SWING POST ASSY
- Поз.: 1
4 X114-112050
- X114-112050 - BUSHING
- Поз.: 1-2
5 41M8-70080
- 41M8-70080 - BUSHING-CENTER
- Поз.: 1-2
6 S700-110208
- S700-110208 - SEAL-DUST
- Поз.: 1-3
7 S651-810002
- S651-810002 - NIPPLE-GREASE
- Поз.: 1-4
8 41M8-70020
- 41M8-70020 - PIN ASSY
- Поз.: 2
9 41M8-70021
- 41M8-70021 - PIN ASSY
- Поз.: 2
10 41M8-70031
- 41M8-70031 - PIN ASSY
- Поз.: 3
11 41M8-70032
- 41M8-70032 - PIN
- Поз.: 3
12 41M8-70033
- 41M8-70033 - PIN
- Поз.: 3
13 61M8-01730
- 61M8-01730 - PIN ASSY
- Поз.: 4
14 61M8-01710
- 61M8-01710 - PIN ASSY
- Поз.: 4
15 61M8-01711
- 61M8-01711 - PIN ASSY
- Поз.: 4
16 61M8-01760
- 61M8-01760 - PIN ASSY
- Поз.: 5
17 61M8-01761
- 61M8-01761 - PIN ASSY
- Поз.: 5
18 41M8-70060
- 41M8-70060 - PIN ASSY-S/POST LOCK
- Поз.: 6
19 41M5-70111
- 41M5-70111 - PLATE-LOCK
- Поз.: 7
20 61N8-00300
- 61N8-00300 - WASHER-HARDENED
- Поз.: 8
21 61N8-00330
- 61N8-00330 - WASHER-HARDENED
- Поз.: 9
22 61N8-00100
- 61N8-00100 - SPACER-PIN
- Поз.: 10
23 61Q8-00110
- 61Q8-00110 - SPACER-PIN
- Поз.: 10
24 S017-120256
- S017-120256 - BOLT-HEX
- Поз.: 11
25 S037-123526
- S037-123526 - BOLT-W/WASHER
- Поз.: 12
26 S391-050085
- S391-050085 - SHIM-ROUND(1.0T)
- Поз.: 13
27 S391-110175
- S391-110175 - SHIM-ROUND(1.0T)
- Поз.: 14
28 S601-110006
- S601-110006 - RING-RETAINING
- C TYPE
- Поз.: 15
