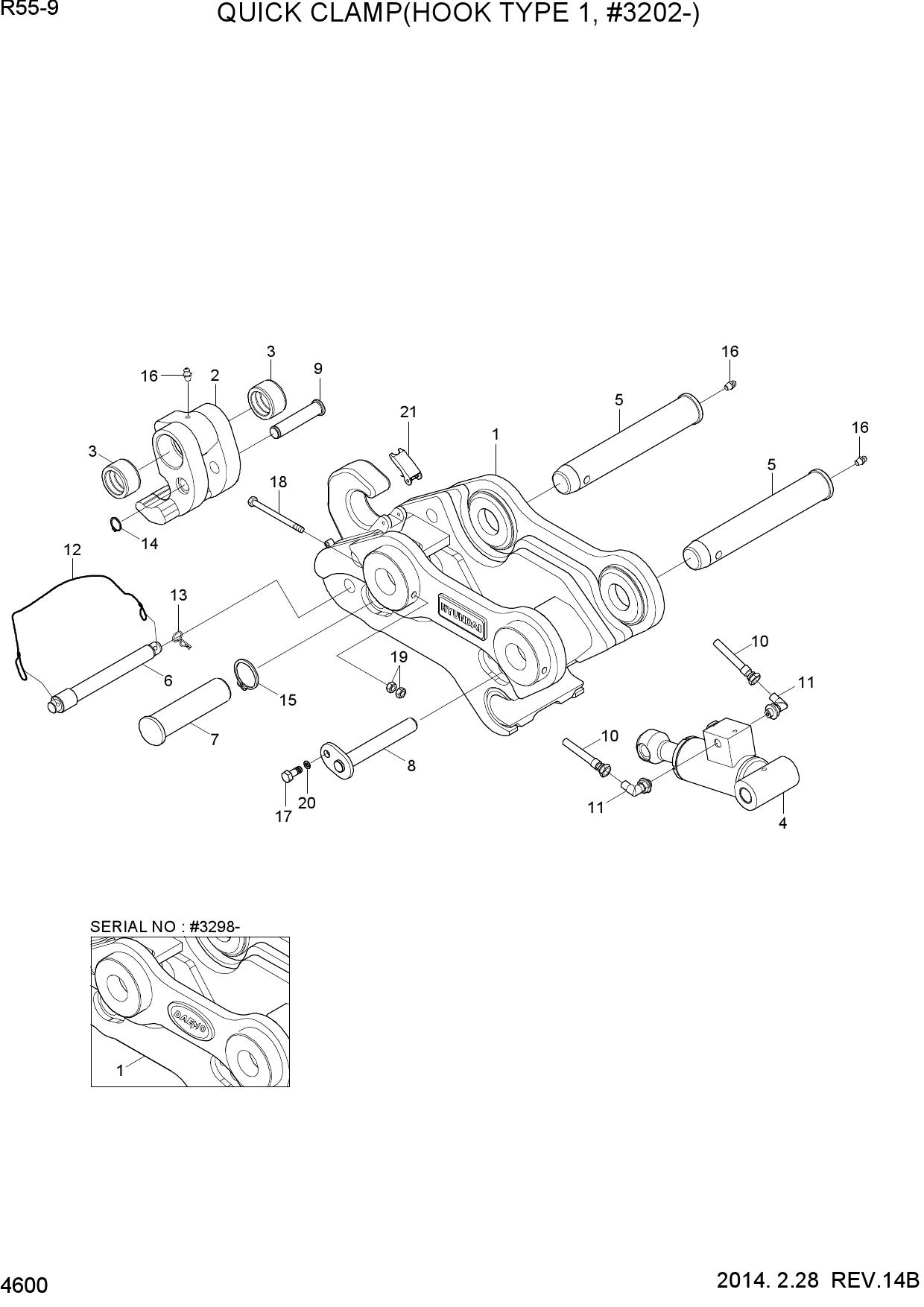

QUICK CLAMP ASSY(HOOK TYPE, #3202-)

QUICK CLAMP ASSY(HOOK TYPE, #3202-)

QUICK CLAMP ASSY(HOOK TYPE, #3202-)

1 XKBN-01158

  • XKBN-01158 - BODY ASSY
  • Поз.: 1

2 XKBN-02185

  • XKBN-02185 - BODY ASSY
  • Поз.: 1

3 XKBN-02098

  • XKBN-02098 - BODY ASSY
  • Поз.: 1

4 XKBN-02195

  • XKBN-02195 - BODY ASSY
  • Поз.: 1

5 XKBN-00616

  • XKBN-00616 - HITCH ASSY
  • Поз.: 2

6 XKBN-02095

  • XKBN-02095 - HITCH ASSY
  • Поз.: 2

7 XKBN-00360

  • XKBN-00360 - BUSHING-HITCH
  • Поз.: 3

8 XKBN-01159

  • XKBN-01159 - CYLINDER ASSY
  • Поз.: 4

9 XKBN-02118

  • XKBN-02118 - CYLINDER ASSY
  • Поз.: 4

10 XKBN-01798

  • XKBN-01798 - PIN-BRACKET
  • Поз.: 5

11 XKBN-01160

  • XKBN-01160 - PIN-SAFETY
  • Поз.: 6

12 XKBN-00390

  • XKBN-00390 - PIN-HITCH
  • Поз.: 7

13 XKBN-01161

  • XKBN-01161 - PIN-FRAME
  • Поз.: 8

14 XKBN-00610

  • XKBN-00610 - PIN-CYLINDER
  • Поз.: 9

15 XKBN-01162

  • XKBN-01162 - P.D HOSE
  • Поз.: 10

16 XKBN-00056

  • XKBN-00056 - ELBOW 90
  • Поз.: 11

17 XKBN-01166

  • XKBN-01166 - WIRE ASSY
  • Поз.: 12

18 XKBN-00105

  • XKBN-00105 - PIN-SNAP
  • Поз.: 13

19 XKBN-00336

  • XKBN-00336 - RING-SNAP
  • Поз.: 14

20 XKBN-00109

  • XKBN-00109 - RING-SNAP
  • Поз.: 15

21 XKBN-00009

  • XKBN-00009 - NIPPLE-GREASE
  • Поз.: 16

22 XKBN-00359

  • XKBN-00359 - BOLT-HEX
  • Поз.: 17

23 XKBN-00362

  • XKBN-00362 - BOLT-HEX
  • Поз.: 18

24 XKBN-00664

  • XKBN-00664 - NUT-HEX
  • Поз.: 19

25 XKBN-00065

  • XKBN-00065 - WASHER-SPRING
  • Поз.: 20

26 XKBN-00051

  • XKBN-00051 - LATCH WITH SPRING
  • Поз.: 21
