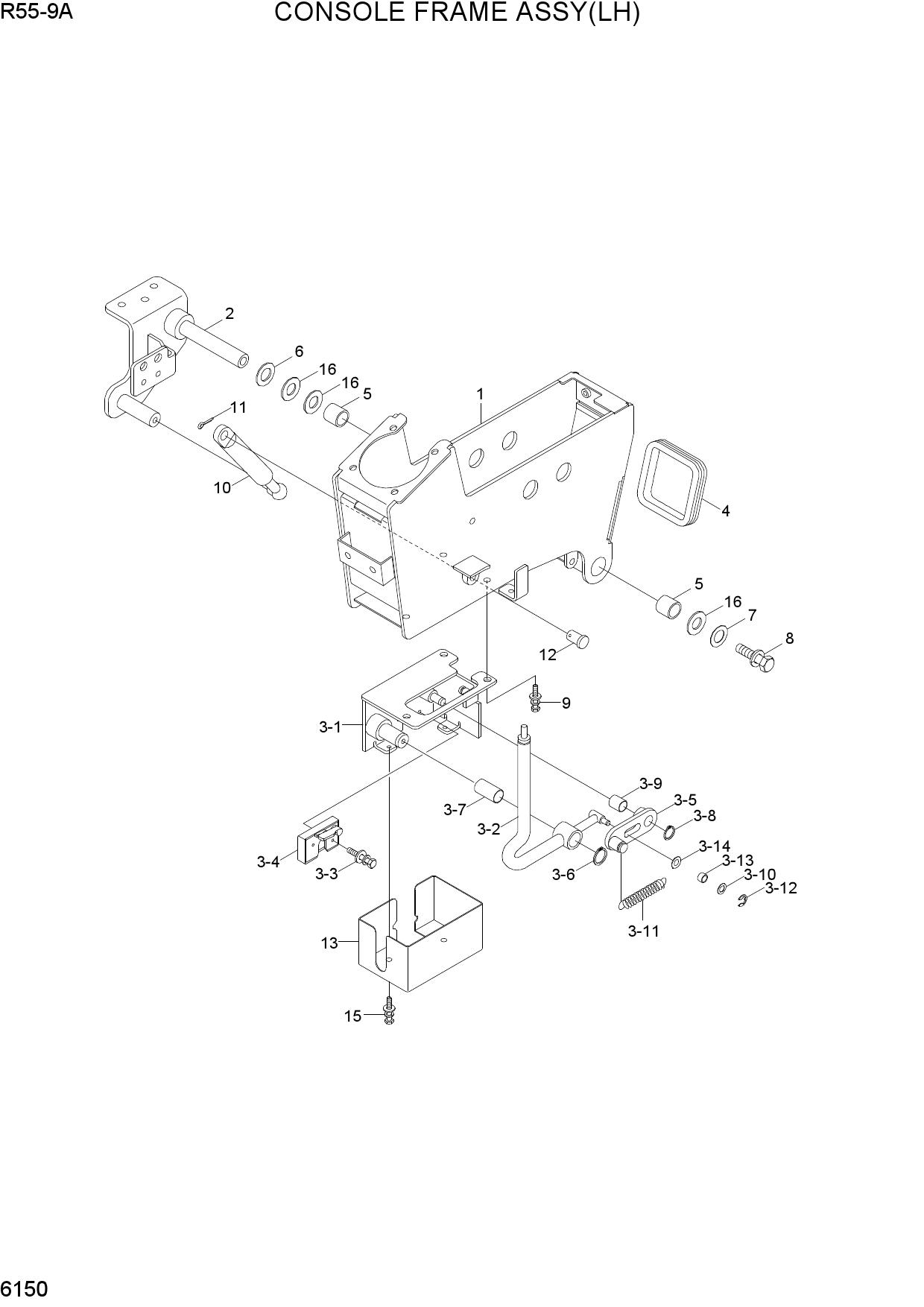

CONSOLE FRAME ASSY(LH)
1 71M9-22232
- 71M9-22232 - FRAME WA-CONSOLE
- LH
- Поз.: 1
2 72M9-23720
- 72M9-23720 - BRACKET WA-CONSOLE
- RR
- Поз.: 2
3 71M9-22512
- 71M9-22512 - TILT ASSY
- Поз.: 3
4 71M9-22522
- 71M9-22522 - BRACKET WA-TILT
- Поз.: 3-1
5 71M9-22552
- 71M9-22552 - LEVER WA-SAFETY
- Поз.: 3-2
6 S035-062026
- S035-062026 - BOLT-W/WASHER
- Поз.: 3-3
7 71M8-20570
- 71M8-20570 - LATCH-TILT
- Поз.: 3-4
8 71M8-20651
- 71M8-20651 - LINK-SAFETY LEVER
- Поз.: 3-5
9 S601-020004
- S601-020004 - RING-RETAINING
- Поз.: 3-6
10 S731-020025
- S731-020025 - BUSHING-DU
- Поз.: 3-7
11 S601-010002
- S601-010002 - RING-RETAINING
- Поз.: 3-8
12 S731-010012
- S731-010012 - BUSHING-DU
- Поз.: 3-9
13 71M8-21430
- 71M8-21430 - SHIM
- Поз.: 3-10
14 71N6-21610
- 71N6-21610 - SPRING
- Поз.: 3-11
15 P560-040002
- P560-040002 - RING-E/SNAP
- Поз.: 3-12
16 71M8-21420
- 71M8-21420 - ROLLER
- Поз.: 3-13
17 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 3-14
18 71Q6-21420
- 71Q6-21420 - GROMMET
- Поз.: 4
19 S731-020020
- S731-020020 - BUSHING-DU
- Поз.: 5
20 71Q6-22631
- 71Q6-22631 - SHIM(1.0T)-CONSOLE
- Поз.: 6
21 71Q6-23700
- 71Q6-23700 - SHIM(2.0T)-ROUND
- Поз.: 7
22 S037-102016
- S037-102016 - BOLT-W/WASHER
- Поз.: 8
23 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 9
24 71Q4-20050
- 71Q4-20050 - SPRING-GAS
- Поз.: 10
25 S461-160252
- S461-160252 - PIN-SPLIT
- Поз.: 11
26 S491-080252
- S491-080252 - PIN-CLEVIS
- Поз.: 12
27 71M9-22932
- 71M9-22932 - COVER
- Поз.: 13
28 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 15
29 71Q6-23080
- 71Q6-23080 - SHIM(1.0T)-CONSOLE
- Поз.: 16
