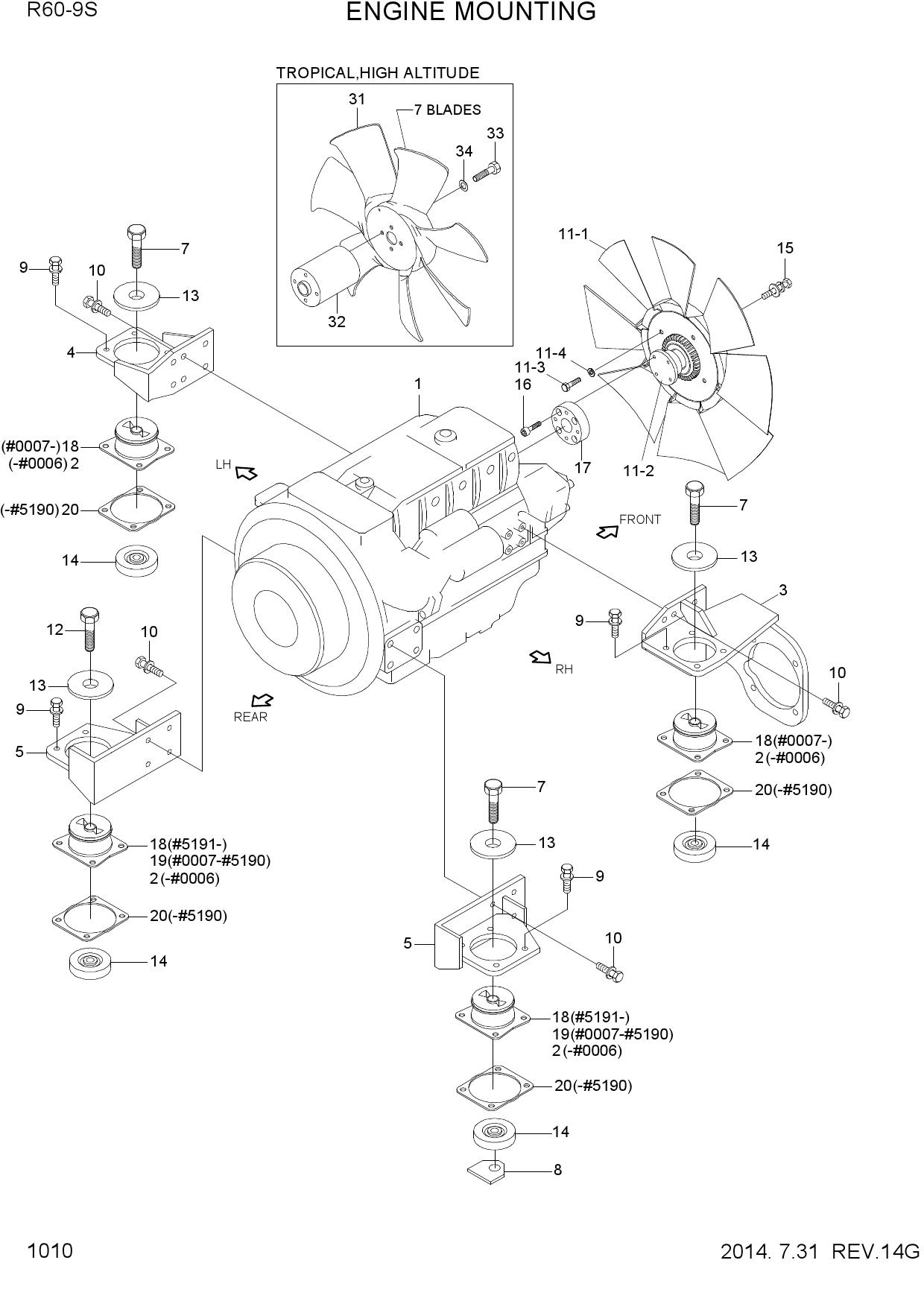

ENGINE MOUNTING
1 11M8-07013
- 11M8-07013 - ENGINE ASSY
- Поз.: 1
2 11M8-07014
- 11M8-07014 - ENGINE ASSY
- Поз.: 1
3 11M8-07550
- 11M8-07550 - RESILIENT
- Поз.: 2
4 11M8-00150
- 11M8-00150 - BRACKET-COMP
- Поз.: 3
5 11M8-00020
- 11M8-00020 - BRACKET
- Поз.: 4
6 11M8-00030
- 11M8-00030 - BRACKET
- Поз.: 5
7 S017-161106
- S017-161106 - BOLT-HEX
- Поз.: 7
8 11M9-01200
- 11M9-01200 - STOPPER-NUT
- Поз.: 8
9 S035-082556
- S035-082556 - BOLT-W/WASHER
- Поз.: 9
10 S035-083026
- S035-083026 - BOLT-W/WASHER
- Поз.: 9
11 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 10
12 11Q6-00341
- 11Q6-00341 - FAN CLUTCH ASSY
- Поз.: 11
13 11Q6-00342
- 11Q6-00342 - FAN CLUTCH ASSY
- Поз.: 11
14 11Q6-01241
- 11Q6-01241 - COOLING FAN
- Поз.: 11-1
15 11Q6-00200
- 11Q6-00200 - FAN CLUTCH
- Поз.: 11-2
16 S109-080126
- S109-080126 - BOLT-SOCKET
- Поз.: 11-3
17 S411-080002
- S411-080002 - WASHER-SPRING
- Поз.: 11-4
18 S017-161306
- S017-161306 - BOLT-HEX
- Поз.: 12
19 11M9-01100
- 11M9-01100 - WASHER-OVERLOAD
- Поз.: 13
20 11N1-10000-DA
- 11N1-10000-DA - WASHER-OVERLOAD
- Поз.: 14
21 11M9-00160
- 11M9-00160 - WASHER-OVERLOAD
- Поз.: 14
22 S035-082046
- S035-082046 - BOLT-W/WASHER
- Поз.: 15
23 S109-080356
- S109-080356 - BOLT-SOCKET
- Поз.: 16
24 11M8-00901
- 11M8-00901 - SPACER
- Поз.: 17
25 11M9-00060
- 11M9-00060 - RUBBER MOUNT
- Поз.: 18
26 11M8-07550
- 11M8-07550 - RESILIENT
- Поз.: 18
27 11M9-00045
- 11M9-00045 - RUBBER MOUNT
- Поз.: 19
28 11M9-00150
- 11M9-00150 - PLATE
- Поз.: 20
29 11M9-00530
- 11M9-00530 - FAN
- Поз.: 31
30 11M9-00531
- 11M9-00531 - FAN
- Поз.: 31
31 11M9-00210
- 11M9-00210 - SPACER
- Поз.: 32
32 S015-080806
- S015-080806 - BOLT-HEX
- Поз.: 33
33 S403-08200B
- S403-08200B - WASHER-PLAIN
- Поз.: 34
