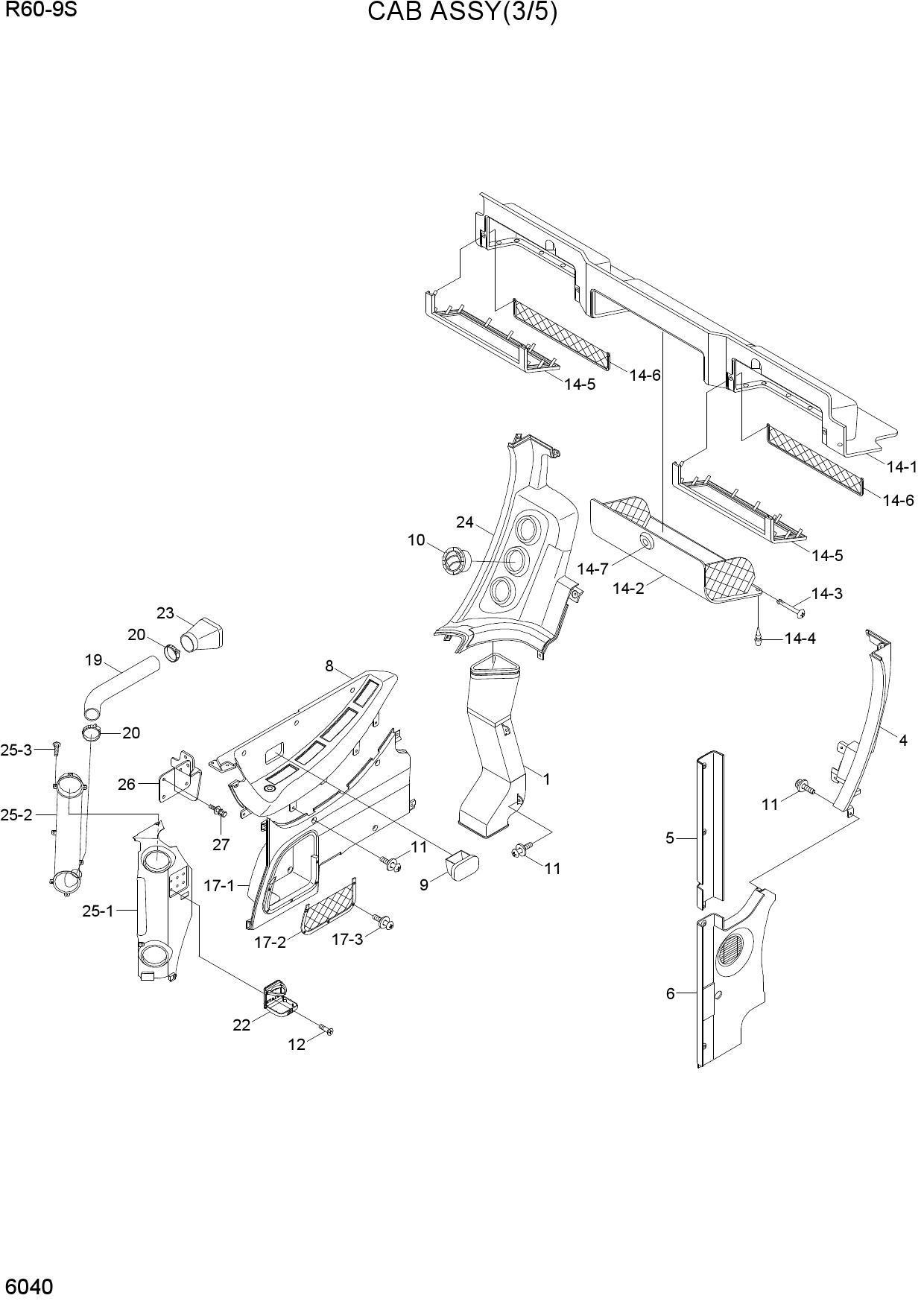

CAB ASSY(3/5)
1 71M9-21160
- 71M9-21160 - DUCT-REAR(2)
- Поз.: 1
2 71M9-21201
- 71M9-21201 - TRIM-PILLAR
- LH
- Поз.: 4
3 71M9-21221
- 71M9-21221 - TRIM-CENTER PILLAR
- LH
- Поз.: 5
4 71M9-21151
- 71M9-21151 - TRIM-LH
- LOW
- Поз.: 6
5 71M9-21091
- 71M9-21091 - PANEL-SWITCH
- Поз.: 8
6 E171-1176
- E171-1176 - ASHTRAY
- Поз.: 9
7 71Q6-22400
- 71Q6-22400 - NOZZLE-AIR
- Поз.: 10
8 S002-06015B
- S002-06015B - SCREW-TRUS HEAD
- Поз.: 11
9 S141-040166
- S141-040166 - SCREW-FLAT HD
- Поз.: 12
10 71M9-23411
- 71M9-23411 - POCKET ASSY-REAR
- Поз.: 14
11 71M9-23421
- 71M9-23421 - POCKET-REAR
- Поз.: 14-1
12 71M9-23431
- 71M9-23431 - COVER-CTR
- Поз.: 14-2
13 71M9-23440
- 71M9-23440 - HINGE
- Поз.: 14-3
14 71M9-23450
- 71M9-23450 - DAMPER
- Поз.: 14-4
15 71M9-23460
- 71M9-23460 - COVER-SIDE
- Поз.: 14-5
16 71M9-23830
- 71M9-23830 - NET
- Поз.: 14-6
17 71M9-25440
- 71M9-25440 - LOCK ASSY
- Поз.: 14-7
18 71M9-25411
- 71M9-25411 - TRIM ASSY-RH
- LOW
- Поз.: 17
19 71M9-21061
- 71M9-21061 - TRIM-SIDE.RH.LOW(1)
- Поз.: 17-1
20 71M9-23120
- 71M9-23120 - NET ASSY
- Поз.: 17-2
21 S002-05015B
- S002-05015B - SCREW-TRUS HEAD
- Поз.: 17-3
22 71M9-22951
- 71M9-22951 - HOSE-DEFROSTER
- Поз.: 19
23 S520-055000
- S520-055000 - CLAMP-HOSE
- Поз.: 20
24 71M9-20870
- 71M9-20870 - HOLDER-CUP
- Поз.: 22
25 71M9-23730
- 71M9-23730 - DUCT-DEFROSTER
- Поз.: 23
26 71M9-25451
- 71M9-25451 - PILLAR ASSY-REAR
- RH
- Поз.: 24
27 71M9-25471
- 71M9-25471 - TRIM ASSY-FRONT
- Поз.: 25
