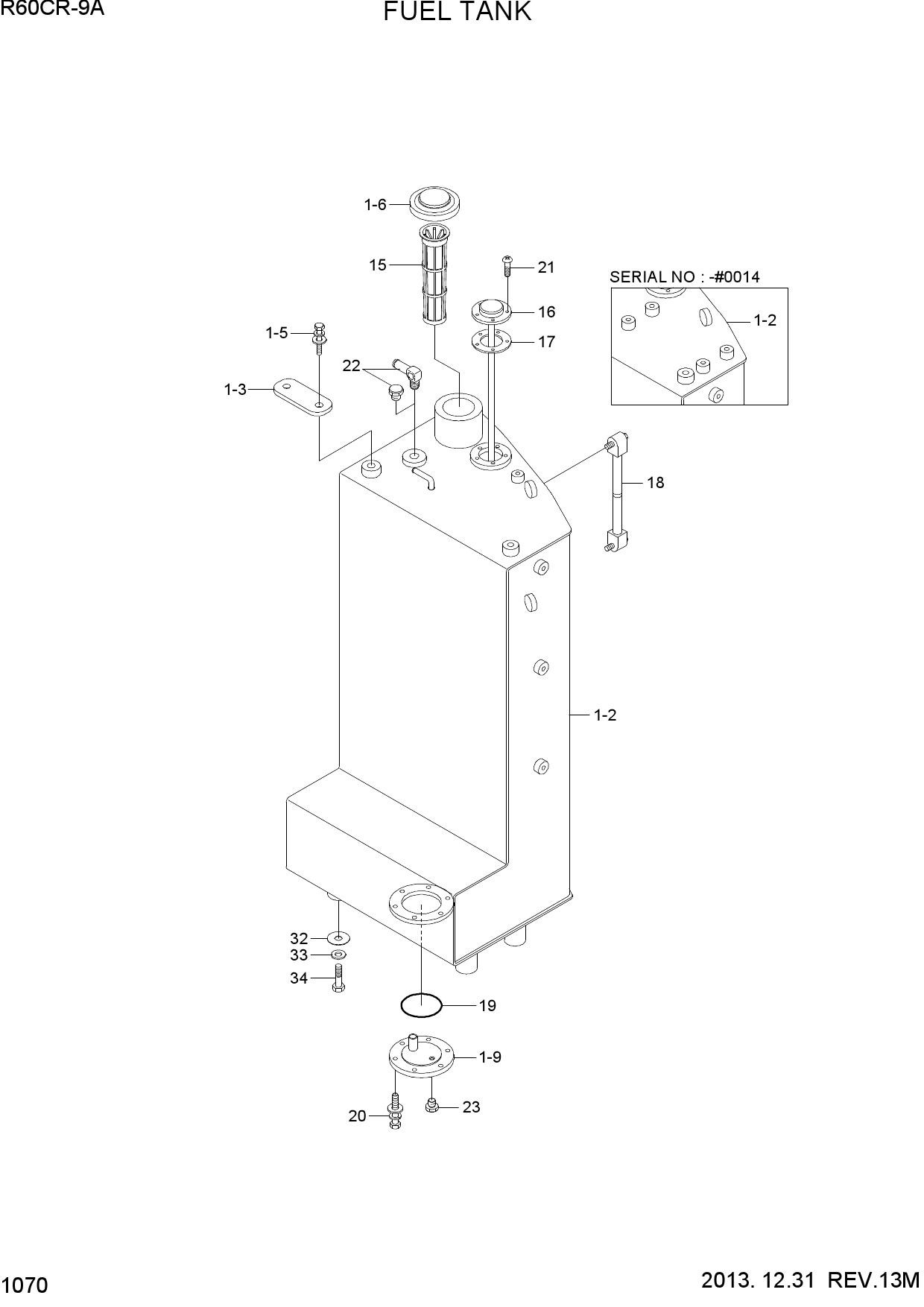

FUEL TANK
1 33ML-02012
- 33ML-02012 - FUEL TANK WA
- Поз.: 1-2
2 31ML-01161
- 31ML-01161 - PLATE
- Поз.: 1-3
3 S037-122526
- S037-122526 - BOLT-W/WASHER
- Поз.: 1-5
4 31Q4-02130
- 31Q4-02130 - FUEL CAP ASSY
- Поз.: 1-6
5 35M9-02160
- 35M9-02160 - COVER
- Поз.: 1-9
6 31QA-02080
- 31QA-02080 - STRAINER
- Поз.: 15
7 21M8-01201
- 21M8-01201 - SENDER-FUEL
- Поз.: 16
8 E128-1053
- E128-1053 - GASKET
- Поз.: 17
9 33Q6-02600
- 33Q6-02600 - GAUGE-LEVEL
- Поз.: 18
10 S632-080001
- S632-080001 - O-RING
- Поз.: 19
11 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 20
12 S131-051546
- S131-051546 - SCREW-W/WASHER
- Поз.: 21
13 P220-430103
- P220-430103 - PLUG-HEX
- Поз.: 22
14 11M6-51190
- 11M6-51190 - ELBOW
- Поз.: 22
15 P220-110102
- P220-110102 - PLUG-HEX
- Поз.: 23
16 31N8-01300
- 31N8-01300 - SHIM(1.0T)
- Поз.: 32
17 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 33
18 S017-16055D
- S017-16055D - BOLT-HEX
- Поз.: 34
